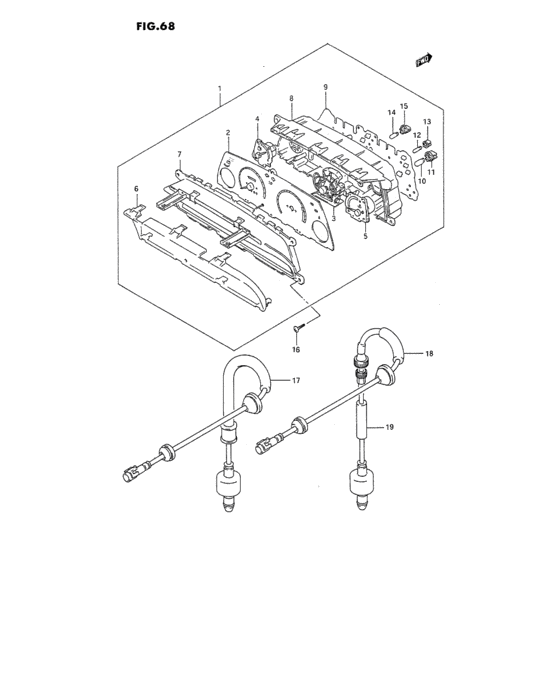

Speedometer (TYPE 1:W/TACHOMETER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- AT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-65B70-000
Speedometer assy
|
34100-65B70-000 |
— | ||
|
2
|
2
34120-65B70-000
Body, speedometer
|
34120-65B70-000 |
— | ||
|
3
|
3
34220-73C70-000
BODY ASSY,TACHOMETER
<-34220-66B80 |
34220-73C70-000 |
— | ||
|
4
|
4
34320-61B20-000
BODY ASSY,FUEL METER
|
34320-61B20-000 |
— | ||
|
5
|
5
34420-61B20-000
BODY ASSY,TEMP METER
|
34420-61B20-000 |
— | ||
|
6
|
6
34112-66B40-000 GLASS,METER |
34112-66B40-000 |
US $41.04 |
||
|
7
|
7
34111-66B40-000
Visor, meter
|
34111-66B40-000 |
— | ||
|
8
|
8
34151-66B40-000
Case, meter
|
34151-66B40-000 |
— | ||
|
9
|
9
34152-63B80-000
PLATE,PRINTED
|
34152-63B80-000 |
— | ||
|
10
|
10
34171-70B30-000
バルブ,14V3.4W
|
34171-70B30-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
11
|
11
34172-50A00-000
ソケット
|
34172-50A00-000 |
— | ||
| replacement | |||||
|
11
|
11
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
12
|
12
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
13
|
13
34174-82100-000
ソケット
|
34174-82100-000 |
— | ||
| replacement | |||||
|
13
|
13
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
14
|
14
34171-61B20-000
Bulb
|
34171-61B20-000 |
— | ||
| replacement | |||||
|
14
|
14
09471-12133-000 BULB(12V3W) |
09471-12133-000 |
US $60.70 |
||
|
15
|
15
34172-61B20-000
ソケット
|
34172-61B20-000 |
— | ||
| replacement | |||||
|
15
|
15
34175-50A20-000 SOCKET |
34175-50A20-000 |
US $3.39 |
||
|
16
|
16
03511-15258-000
Screw
|
03511-15258-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0525B-000 SCREW |
03541-0525B-000 |
from US $3.67 |
||
|
17
|
17
34910-61B60-000 CABLE ASSY,SPEEDOMETERAT |
34910-61B60-000 |
US $104.14 |
||
|
18
|
18
34920-60B10-000
CABLE ASSY,SPEEDOMETER NO.1
|
34920-60B10-000 |
— | ||
|
19
|
19
34930-60B10-000
CABLE ASSY,SPEEDOMETER NO.2
|
34930-60B10-000 |
— | ||
