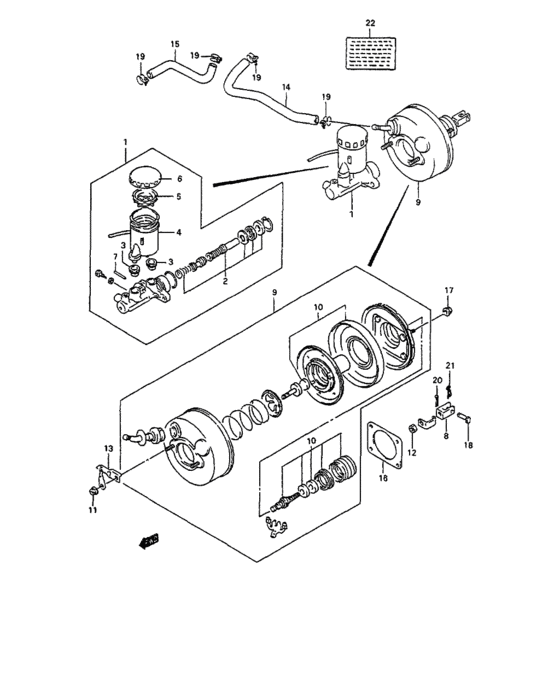

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-60B20-000
Cylinder assy,brake master
|
51100-60B20-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-60B21-000 CYLINDER ASSY,BRAKE MASTER |
51100-60B21-000 |
US $299.92 |
||
|
2
|
2
51810-60B10-000
ピストンセット,ブレーキマスタ
|
51810-60B10-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-60B12-000 PISTON SET,BRAKE MASTER |
51810-60B12-000 |
US $84.64 |
||
|
3
|
3
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
4
|
4
51200-60A20-000 RESERVOIR,MASTER CYLINDER |
51200-60A20-000 |
US $136.90 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
7
|
7
09205-05003-000 PIN,SPRING(5X45) |
09205-05003-000 |
US $1.76 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51300-60B20-000
BOOSTER ASSY,BRAKE MASTER
|
51300-60B20-000 |
— | ||
|
10
|
10
51300-60820-000 REPAIR KIT,BRAKE MASTER |
51300-60820-000 |
US $95.31 |
||
|
11
|
11
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
12
|
12
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
13
|
13
51119-60B20-000
BRACKET,ENG HARN CLAMP
|
51119-60B20-000 |
— | ||
|
14
|
14
51021-60B31-000
HOSE,VACUUM BOOSTER TO PIPE
<-51021-60B20 |
51021-60B31-000 |
— | ||
|
15
|
15
51030-80E00-000 HOSE,VACUUM PIPE TO INTAKE<-51031-60B30 |
51030-80E00-000 |
US $34.96 |
||
|
16
|
16
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
17
|
17
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
17
|
17
09159-08135-000 NUT |
09159-08135-000 |
from US $0.81 |
||
|
18
|
18
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
19
|
19
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.04 |
||
|
20
|
20
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
20
|
20
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
21
|
21
09385-10006-000 PIN,SNAPPin JS2AH14S N5101488~ |
09385-10006-000 |
from US $1.60 |
||
|
22
|
22
86935-80300-000
EMBLEM,BRAKE FLUID
|
86935-80300-000 |
— | ||
