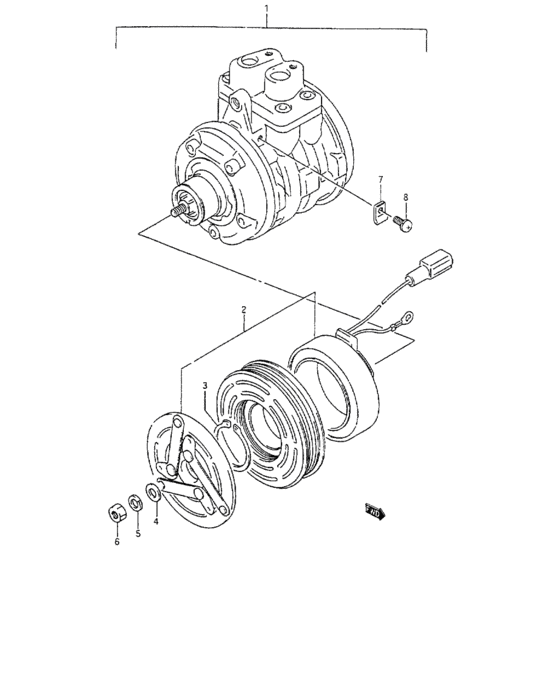

Compressor (COMPRESSOR) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95200-60E10-000
Compressor & magnet clutch
92 MODEL,93 MODEL |
95200-60E10-000 |
— | ||
|
|
95200-61EJ0-000
Compressor & magnet clutch
94 MODEL |
95200-61EJ0-000 |
— | ||
|
1
|
1
95230-60E10-000
Compressor
92 MODEL,93 MODEL |
95230-60E10-000 |
— | ||
|
1
|
1
95230-61EJ0-000
Compressor
94 MODEL |
95230-61EJ0-000 |
— | ||
|
2
|
2
95210-60B21-000
CLUTCH,MAGNET
|
95210-60B21-000 |
— | ||
|
3
|
3
08331-31383-000 CIRCLIP |
08331-31383-000 |
from US $1.82 |
||
|
4
|
4
95216-82000-000
WASHER,PLATE
|
95216-82000-000 |
— | ||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
95215-82000-000
CLAMP,HARNESS
|
95215-82000-000 |
— | ||
|
8
|
8
03141-05083-000
Screw
|
03141-05083-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0508A-000 SCREW |
03141-0508A-000 |
US $7.70 |
||
