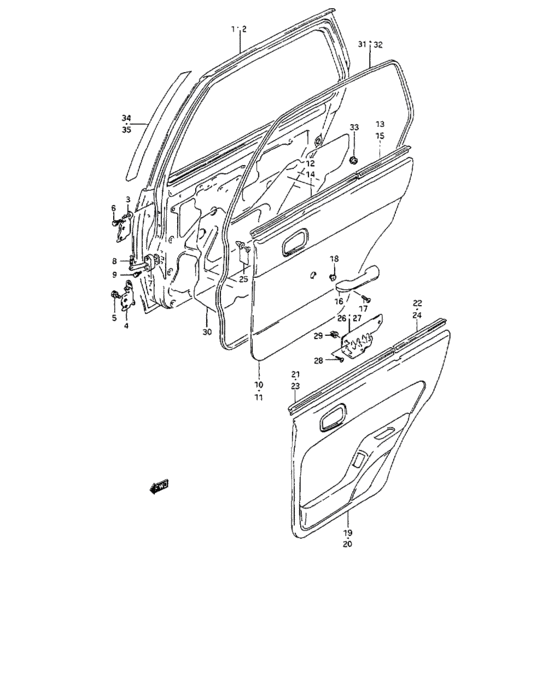

Rear door panel (REAR DOOR PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-70C70-000
PANEL ASSY,REAR DOOR,R
|
68003-70C70-000 |
— | ||
|
2
|
2
68004-70C70-000
PANEL ASSY,REAR DOOR,L
|
68004-70C70-000 |
— | ||
|
3
|
3
69410-62B10-000
HINGE,RR DOOR,NO.1
UPPER RH, LOWER LH |
69410-62B10-000 |
— | ||
|
4
|
4
89420-62B10-000
Hinge, door no.2
UPPER LH, LOWER RH |
89420-62B10-000 |
— | ||
|
5
|
5
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
6
|
6
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
7
|
7
81830-62B00-000
ストップ,ドアオープン
|
81830-62B00-000 |
— | ||
| replacement | |||||
|
7
|
7
81830-62B10-000 STOP,REAR DOOR OPEN |
81830-62B10-000 |
US $26.86 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
10
|
10
83730-66E00-G92
TRIM,REAR DOOR,R
GL |
83730-66E00-G92 |
— | ||
|
12
|
12
83871-65E00-000 WEATHERSTRIP,RR DR INR NO.1GL |
83871-65E00-000 |
US $37.54 |
||
|
13
|
13
83872-66E00-000
WEATHERSTRIP,RR DR INR NO.2,R
GL |
83872-66E00-000 |
— | ||
|
14
|
14
83871-65E00-000 WEATHERSTRIP,RR DR INR NO.1GL, <-83881-65 |
83871-65E00-000 |
US $37.54 |
||
|
15
|
15
83882-66E00-000
WEATHERSTRIP,RR DR INR NO.2,L
GL |
83882-66E00-000 |
— | ||
|
16
|
16
84450-82000-5ES ARMREST,FR DRGL |
84450-82000-5ES |
US $57.01 |
||
|
17
|
17
03241-06253-000
スクリュ
GL |
03241-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-0625A-000 SCREWGL |
03241-0625A-000 |
from US $1.87 |
||
|
18
|
18
09148-06007-000 NUTGL |
09148-06007-000 |
from US $0.88 |
||
|
19
|
19
83730-68E00-L81
TRIM,REAR DOOR,R
GLX |
83730-68E00-L81 |
— | ||
|
20
|
20
83740-68E00-L81
Trim, door lh
GLX |
83740-68E00-L81 |
— | ||
|
21
|
21
83871-68E00-000
WEATHERSTRIP,RR DR INR NO.1,R
GLX |
83871-68E00-000 |
— | ||
|
22
|
22
83872-68E00-000
WEATHERSTRIP,RR DR INR NO.2,R
GLX |
83872-68E00-000 |
— | ||
|
23
|
23
83881-68E00-000
WEATHERSTRIP,RR DR INR NO.1,L
GLX |
83881-68E00-000 |
— | ||
|
24
|
24
83882-68E00-000
WEATHERSTRIP,RR DR INR NO.2,L
GLX |
83882-68E00-000 |
— | ||
|
25
|
25
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
26
|
26
84472-68E00-000
BRACKET,RR DR TRIM,R
GLX |
84472-68E00-000 |
— | ||
|
27
|
27
84477-68E00-000
BRACKET,RR DR TRIM,L
GLX |
84477-68E00-000 |
— | ||
|
28
|
28
03541-06203-000
Screw
|
03541-06203-000 |
— | ||
| replacement | |||||
|
28
|
28
03541-0620A-000 SCREW |
03541-0620A-000 |
from US $3.35 |
||
|
29
|
29
09148-06007-000 NUT |
09148-06007-000 |
from US $0.88 |
||
|
30
|
30
83911-60X50-000
カバー,ドアシーリング,600X1200
|
83911-60X50-000 |
— | ||
| replacement | |||||
|
30
|
30
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
31
|
31
84661-71C01-000 WEATHERSTRIP,RR DR OPNG,R |
84661-71C01-000 |
US $83.90 |
||
|
32
|
32
84671-71C01-000 WEATHERSTRIP,RR DR OPNG,L |
84671-71C01-000 |
US $83.90 |
||
|
33
|
33
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
34
|
34
83983-62B00-0CE
TAPE,RR DOOR CTR PLR,R
|
83983-62B00-0CE |
— | ||
|
35
|
35
83984-62B00-0CE
TAPE,RR DOOR CTR PLR,L
|
83984-62B00-0CE |
— | ||
