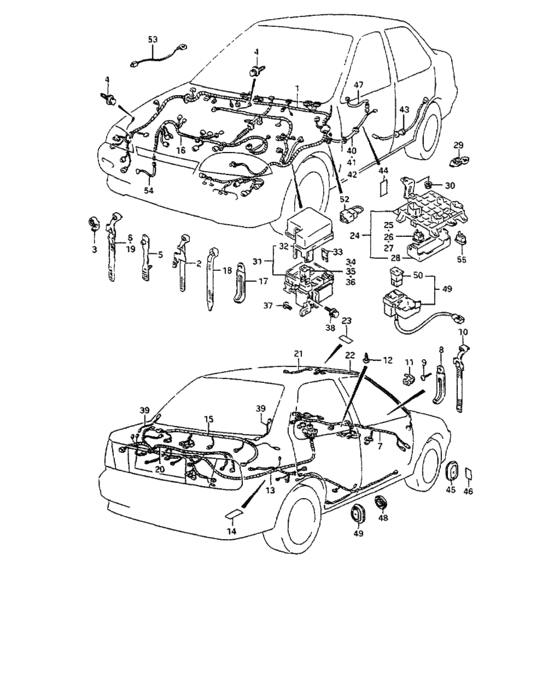

Wiring harness (WIRING HARNESS) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-61E91-000
Harness assh, main
|
36610-61E91-000 |
— | ||
|
2
|
2
36990-60A00-000 CLAMP,HARN DASH PANEL |
36990-60A00-000 |
US $2.10 |
||
| replacement | |||||
|
2
|
2
36990-56B00-000 CLAMP,HARN DASH PANEL |
36990-56B00-000 |
US $1.60 |
||
|
3
|
3
36990-60B50-000
CLAMP,MAN HARN RDTR&HORN
|
36990-60B50-000 |
— | ||
|
4
|
4
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
4
|
4
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
5
|
5
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
5
|
5
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
5
|
5
09407-05408-000
Clamp
|
09407-05408-000 |
— | ||
|
6
|
6
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
7
|
7
36620-61E30-000
Harness assy, ingtrument panel
|
36620-61E30-000 |
— | ||
|
8
|
8
09404-06208-000
Clamp
|
09404-06208-000 |
— | ||
| replacements | |||||
|
8
|
8
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
8
|
8
09404-06033-000 Clamp |
09404-06033-000 |
from US $1.43 |
||
|
8
|
8
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
9
|
9
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
10
|
10
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
11
|
11
09403-13409-000 CLAMP |
09403-13409-000 |
US $14 |
||
|
12
|
12
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
13
|
13
36630-63E90-000
Harness assy, floor
GL |
36630-63E90-000 |
— | ||
|
13
|
13
36630-64E00-000
Harness assy, floor
GLX |
36630-64E00-000 |
— | ||
|
14
|
14
36930-82010-000 COVER,HARNESSCover, roof wire GL |
36930-82010-000 |
from US $1.73 |
||
|
15
|
15
36640-71C71-000 HARNESS ASSY,TRUNK ROOMGL, <-36640-71C60 |
36640-71C71-000 |
US $140.21 |
||
|
16
|
16
36650-64E91-000
Harness assy, engine
MT |
36650-64E91-000 |
— | ||
|
17
|
17
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
17
|
17
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
17
|
17
09404-10204-000
CLAMP(L:62)
|
09404-10204-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-10206-000 Clamp |
09404-10206-000 |
from US $3.21 |
||
|
17
|
17
09404-10205-000 CLAMP(L:82)Clamp, lead |
09404-10205-000 |
US $1.28 |
||
|
18
|
18
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
19
|
19
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
20
|
20
36670-70C10-000
HARNESS ASSY,TRUNK
|
36670-70C10-000 |
— | ||
|
21
|
21
36820-70G00-000
Wire, room lamp roof
|
36820-70G00-000 |
— | ||
|
22
|
22
36820-70C20-000 WIRE,ROOM LAMP |
36820-70C20-000 |
US $32.94 |
||
|
23
|
23
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
24
|
24
36710-61B00-000 BOX ASSY,J/B FUSE,L |
36710-61B00-000 |
US $127.70 |
||
|
25
|
25
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
26
|
26
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
27
|
27
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
28
|
28
36717-60B00-000 COVER,FUSE BOX |
36717-60B00-000 |
US $7.76 |
||
|
29
|
29
36990-60B60-5PK NUT,TRNK ROOM SIDE TRIM<-36990-60B60 |
36990-60B60-5PK |
US $1.60 |
||
|
30
|
30
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
31
|
31
36730-60E00-000 BOX ASSY,MAIN FUSE |
36730-60E00-000 |
US $64.03 |
||
|
32
|
32
36737-60E00-000
COVER,MAIN FUSE BOX
|
36737-60E00-000 |
— | ||
|
33
|
33
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
34
|
34
09481-40203-000 FUSE(40A) |
09481-40203-000 |
US $56.30 |
||
|
35
|
35
09481-50203-000 FUSE(50A) |
09481-50203-000 |
US $15.36 |
||
|
36
|
36
09491-60301-000
Fuse
|
09491-60301-000 |
— | ||
|
37
|
37
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
37
|
37
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
38
|
38
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
39
|
39
36890-70C00-000 WIRE,RR DF LEAD |
36890-70C00-000 |
US $3.28 |
||
|
40
|
40
36755-60B00-000
WIRE,MIRROR DR
92 MODEL |
36755-60B00-000 |
— | ||
|
41
|
41
36757-61E00-000
WIRE,P/W&D/L MAIN,L
GLX |
36757-61E00-000 |
— | ||
|
42
|
42
36756-61E10-000 WIRE,P/W&D/L SUB,RGLX |
36756-61E10-000 |
US $125.86 |
||
|
43
|
43
36751-61E00-000 WIRE,P/W&D/L RRGLX |
36751-61E00-000 |
US $65.87 |
||
|
44
|
44
36930-82010-000 COVER,HARNESSCover, roof wire GLX |
36930-82010-000 |
from US $1.73 |
||
|
45
|
45
36757-60B00-000 CAP,DR WIRE HOLEN/POWER WINDOW |
36757-60B00-000 |
US $1.55 |
||
|
46
|
46
36757-82100-000 FILM,DR WIRE HOLEN/POWER WINDOW |
36757-82100-000 |
US $1.03 |
||
|
47
|
47
36915-82000-000
WIRE,REMOCON MIRROR
GLX |
36915-82000-000 |
— | ||
|
48
|
48
09250-20015-000 CAP(OD:28.5)Cap, air con harness N/POWER WINDOW |
09250-20015-000 |
from US $0.79 |
||
|
49
|
49
09250-20017-000 PLUG(OD:20)Plug, lower cover N/POWER WINDOW |
09250-20017-000 |
US $11.40 |
||
|
50
|
50
36747-60E00-000 WIRE,RDTR FAN FUSE |
36747-60E00-000 |
US $32.02 |
||
|
51
|
51
09481-30203-000 FUSE(30A) |
09481-30203-000 |
US $13.92 |
||
|
54
|
54
36955-70C00-000 WIRE,POWER STEERING LEAD |
36955-70C00-000 |
US $5.08 |
||
|
55
|
55
36795-82000-000 BREAKER,POWER WINDOWGLX |
36795-82000-000 |
US $24.84 |
||
