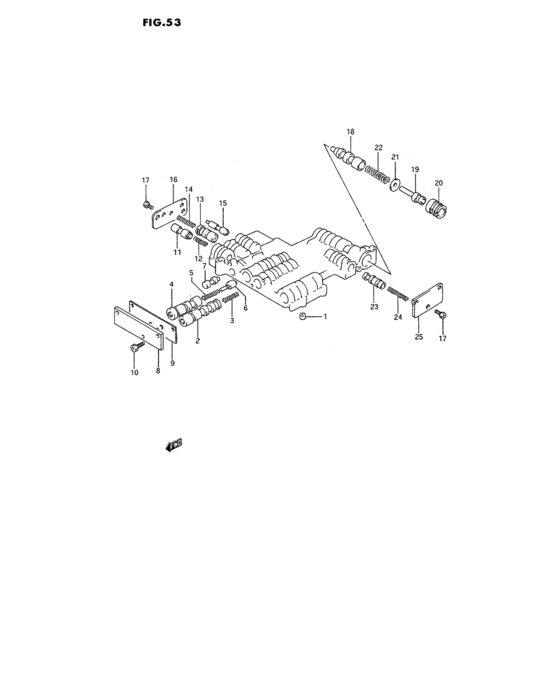

At up valve body (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- drive
- 2WD
- transmission
- AT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
26520-72C00-000
BODY ASSY,UPPER VALVE
|
26520-72C00-000 |
— | ||
|
1
|
1
26513-72C00-000
VALVE,CHECK
|
26513-72C00-000 |
— | ||
|
2
|
2
26522-72C00-000
Vlave, 1-2 shift
|
26522-72C00-000 |
— | ||
|
3
|
3
26555-72C00-000
Spring, 1-2 shift valve
|
26555-72C00-000 |
— | ||
|
4
|
4
26532-72C00-000
Valve, 2-3 shift
|
26532-72C00-000 |
— | ||
|
5
|
5
26556-72C00-000
Spring, 2-3 shift valve
|
26556-72C00-000 |
— | ||
|
6
|
6
26533-72C00-000
Plug, 2-3 shift
|
26533-72C00-000 |
— | ||
|
7
|
7
26534-72C00-000
Valve, pressure
|
26534-72C00-000 |
— | ||
|
8
|
8
26542-72C00-000
Plate, shift valve side
|
26542-72C00-000 |
— | ||
|
9
|
9
26543-72C00-000
Plate, shift valve side
|
26543-72C00-000 |
— | ||
|
10
|
10
26564-72C00-000
Bolt, valve side plate no.2
|
26564-72C00-000 |
— | ||
|
11
|
11
26525-72C00-000
Valve, dow shift solenoid
|
26525-72C00-000 |
— | ||
|
12
|
12
26557-72C00-000
Spring, down shift valve
|
26557-72C00-000 |
— | ||
|
13
|
13
26524-72C00-000
Valve, throttle back up
|
26524-72C00-000 |
— | ||
|
14
|
14
26558-72C00-000
Spring, valve
|
26558-72C00-000 |
— | ||
|
15
|
15
26523-72C00-000
Valve, vacuum throttle
|
26523-72C00-000 |
— | ||
|
16
|
16
26545-72C00-000
Plate, throttle valve side
|
26545-72C00-000 |
— | ||
|
17
|
17
26563-72C00-000
Bolt, valve side plate no.1
|
26563-72C00-000 |
— | ||
|
18
|
18
26526-72C00-000
Valve, pressure regulator
|
26526-72C00-000 |
— | ||
|
19
|
19
26529-72C00-000
Plug, pressure, regulator
|
26529-72C00-000 |
— | ||
|
20
|
20
26527-72C00-000
Sleeve, plug
|
26527-72C00-000 |
— | ||
|
21
|
21
26528-72C00-000
Seat, pressure regulator ring
|
26528-72C00-000 |
— | ||
|
22
|
22
26553-72C00-000
Spring, valve
|
26553-72C00-000 |
— | ||
|
23
|
23
26531-72C00-000
Valve, second lock valve
|
26531-72C00-000 |
— | ||
|
24
|
24
26554-72C00-000
Spring, second lock valve
|
26554-72C00-000 |
— | ||
|
25
|
25
26544-72C00-000
Plate, regulator valve side
|
26544-72C00-000 |
— |
