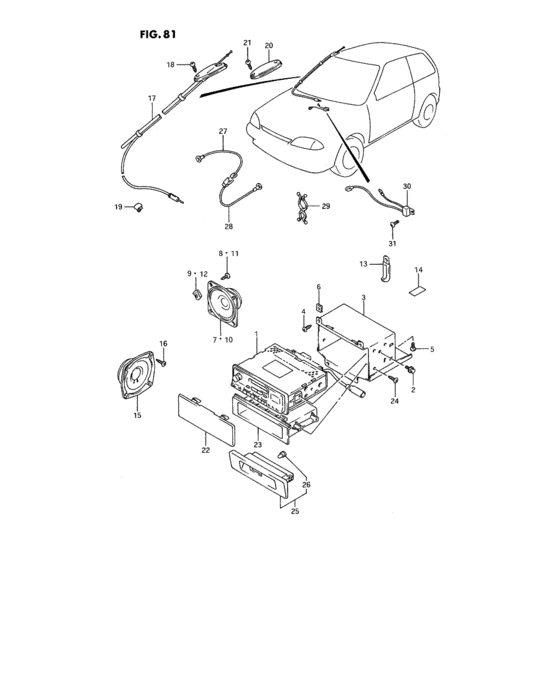

Radio and clock (TYPE 2) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-75E10-000
Tuner assy
|
39101-75E10-000 |
— | ||
|
1
|
1
39101-76E20-000
Tuner assy
|
39101-76E20-000 |
— | ||
|
1
|
1
39101-70E20-000
TUNER ASSY
|
39101-70E20-000 |
— | ||
|
2
|
2
01517-05088-000
Bolt
|
01517-05088-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0508B-000 Bolt |
01550-0508B-000 |
from US $2.28 |
||
|
3
|
3
39321-60E00-000 BRACKET,TUNER |
39321-60E00-000 |
US $49.40 |
||
|
4
|
4
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
5
|
5
02142-05128-000
Screw
|
02142-05128-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
|
6
|
6
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
7
|
7
39102-86010-000
Speaker assy
W/AM AND AM-FM MONO |
39102-86010-000 |
— | ||
| replacement | |||||
|
7
|
7
39102-60A00-000 SPEAKER ASSYW/AM AND AM-FM MONO |
39102-60A00-000 |
US $29.26 |
||
|
8
|
8
03142-04129-000
Screw
W/AM AND AM-FM MONO |
03142-04129-000 |
— | ||
| replacement | |||||
|
8
|
8
03142-0412B-000 SCREWW/AM AND AM-FM MONO |
03142-0412B-000 |
from US $0.80 |
||
|
9
|
9
09148-04024-000 NUTW/AM AND AF-MF MONO |
09148-04024-000 |
from US $0.91 |
||
|
10
|
10
39102-86100-000
スピーカアッシ,フロント
W/AM-FM MULTI AND,AM-FM CASSETTE,<-39102-86020 |
39102-86100-000 |
— | ||
| replacement | |||||
|
10
|
10
39102-60A20-000
SPEAKER ASSY,FR
W/AM-FM MULTI AND,AM-FM CASSETTE,<-39102-86020 |
39102-60A20-000 |
— | ||
|
11
|
11
03142-04129-000
Screw
W/AM-FM MULTI AND,AM-FM CASSETTE |
03142-04129-000 |
— | ||
| replacement | |||||
|
11
|
11
03142-0412B-000 SCREWW/AM-FM MULTI AND,AM-FM CASSETTE |
03142-0412B-000 |
from US $0.80 |
||
|
12
|
12
09148-04024-000 NUTW/AM-FM MULTI AND,AM-FM CASSETTE |
09148-04024-000 |
from US $0.91 |
||
|
13
|
13
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
13
|
13
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
13
|
13
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
13
|
13
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
13
|
13
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
14
|
14
71891-84300-000
カバー
|
71891-84300-000 |
— | ||
| replacement | |||||
|
14
|
14
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
15
|
15
39102-70C10-000
スピーカアッシ
W/AM-FM CASSETTE |
39102-70C10-000 |
— | ||
| replacement | |||||
|
15
|
15
39102-50E10-000
SPEAKER ASSY,FR
W/AM-FM CASSETTE |
39102-50E10-000 |
— | ||
|
16
|
16
03142-04129-000
Screw
W/AM-FM CASSETTE |
03142-04129-000 |
— | ||
| replacement | |||||
|
16
|
16
03142-0412B-000 SCREWW/AM-FM CASSETTE |
03142-0412B-000 |
from US $0.80 |
||
|
17
|
17
39250-60B00-000
ANTENNA ASSY,R
|
39250-60B00-000 |
— | ||
|
18
|
18
39251-60B00-000
スクリュ
|
39251-60B00-000 |
— | ||
| replacement | |||||
|
18
|
18
09129-04004-000 SCREW(4X16) |
09129-04004-000 |
US $11.40 |
||
|
19
|
19
09408-00097-000
クランプ
|
09408-00097-000 |
— | ||
| replacement | |||||
|
19
|
19
09403-05314-000 CLAMP |
09403-05314-000 |
US $11.80 |
||
|
20
|
20
39262-60B00-000
Cover,antenna hole
N/RADIO ANTENNA |
39262-60B00-000 |
— | ||
|
21
|
21
39251-60B00-000
スクリュ
N/RADIO ANTENNA |
39251-60B00-000 |
— | ||
| replacement | |||||
|
21
|
21
09129-04004-000 SCREW(4X16)N/RADIO ANTENNA |
09129-04004-000 |
US $11.40 |
||
|
22
|
22
39161-60E00-000 COVER,RADIO HOLEN/RADIO |
39161-60E00-000 |
US $11.10 |
||
|
23
|
23
39182-70E10-000
Pocket, tuner
W/CLOCK |
39182-70E10-000 |
— | ||
| replacement | |||||
|
23
|
23
39182-70E51-000 POCKET,TUNERW/CLOCK |
39182-70E51-000 |
US $20 |
||
|
23
|
23
39182-70E20-000
Pocket, tuner
N/CLOCK |
39182-70E20-000 |
— | ||
| replacement | |||||
|
23
|
23
39182-70E51-000 POCKET,TUNERN/CLOCK |
39182-70E51-000 |
US $20 |
||
|
24
|
24
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
25
|
25
34600-60E10-000 CLOCK ASSY<-34600-60 |
34600-60E10-000 |
US $160.82 |
||
|
26
|
26
34670-50A00-000 BULB,CLOCK 14V 2W |
34670-50A00-000 |
US $9.90 |
||
|
27
|
27
39312-60B00-000
ワイヤ,ノイズサプレッサ,NO.2
|
39312-60B00-000 |
— | ||
| replacement | |||||
|
27
|
27
39312-60B20-000 WIRE,NOISE SUPPR NO.1 |
39312-60B20-000 |
US $2.72 |
||
|
28
|
28
39312-60B11-000
ワイヤ,ノイズサプレッサ
|
39312-60B11-000 |
— | ||
| replacement | |||||
|
28
|
28
39312-60G00-000 WIRE,NOISE SUPPR |
39312-60G00-000 |
US $6.40 |
||
|
29
|
29
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
|
30
|
30
33551-86000-000
CONDENSER,NOISE SUPPR
|
33551-86000-000 |
— | ||
|
31
|
31
02112-14086-000
Screw
|
02112-14086-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0408B-000 SCREW |
02142-0408B-000 |
from US $0.77 |
||
