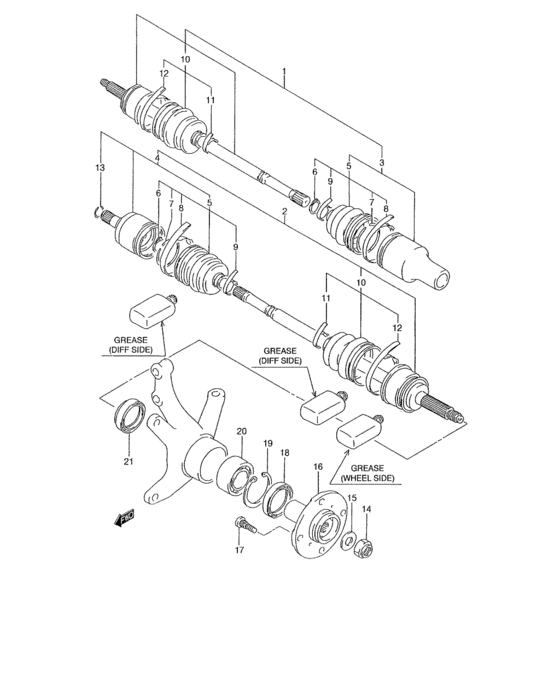

A front axle (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-51G11-000
Shaft assy, front drive rh
N/ABS |
44101-51G11-000 |
— | ||
|
1
|
1
44101-51G31-000
Shaft assy, front drive rh
W/ABS |
44101-51G31-000 |
— | ||
|
2
|
2
44102-51G11-000
Shaft assy, front drive lh
N/ABS |
44102-51G11-000 |
— | ||
|
2
|
2
44102-51G31-000
Shaft assy, front drive lh
W/ABS |
44102-51G31-000 |
— | ||
|
3
|
3
44114-51G10-000
Joint assy, diff side rh
|
44114-51G10-000 |
— | ||
|
4
|
4
44115-51G10-000
Joint assy, diff side lh
|
44115-51G10-000 |
— | ||
|
5
|
5
44119-51G10-000
Boot set, diff side
|
44119-51G10-000 |
— | ||
|
6
|
6
44111-78010-000 RING,SNAP |
44111-78010-000 |
US $2.80 |
||
|
7
|
7
44112-78010-000 CIRCLIP |
44112-78010-000 |
from US $5.26 |
||
|
8
|
8
44122-86010-000 BAND,BOOTClamp, differential side outer boot |
44122-86010-000 |
from US $9.02 |
||
|
9
|
9
44124-86011-000 BAND,BOOT |
44124-86011-000 |
US $6.81 |
||
|
10
|
10
44118-51G11-000
Boot set, wheel side
|
44118-51G11-000 |
— | ||
|
11
|
11
44124-86011-000 BAND,BOOT |
44124-86011-000 |
US $6.81 |
||
|
12
|
12
44122-86010-000 BAND,BOOTClamp, differential side outer boot |
44122-86010-000 |
from US $9.02 |
||
|
13
|
13
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
|
14
|
14
09159-18008-000 NUT |
09159-18008-000 |
from US $4.10 |
||
|
15
|
15
09160-18017-000 WASHER(18X35X4) |
09160-18017-000 |
from US $0.91 |
||
|
16
|
16
43420-50830-000 HUB SET,FR WHL |
43420-50830-000 |
US $260.80 |
||
|
17
|
17
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
18
|
18
09283-53001-000 SEAL,OIL(53X68.2X7) |
09283-53001-000 |
from US $9.20 |
||
|
19
|
19
09381-68001-000 CIRCLIP |
09381-68001-000 |
from US $2.72 |
||
|
20
|
20
09267-36002-000 BEARING(36X68X33) |
09267-36002-000 |
US $120.80 |
||
|
21
|
21
43431-50G10-000
Seal, wheel bearing oil
|
43431-50G10-000 |
— |
