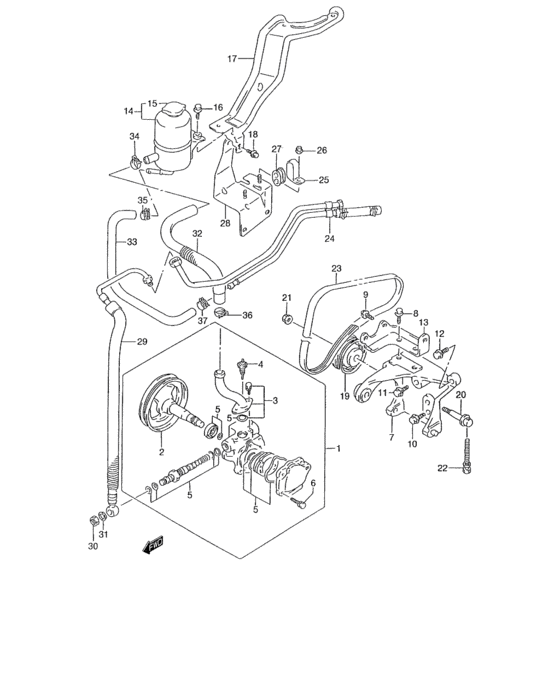

A ps oil pump (W/PS:95, 96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49110-50G00-000
PUMP ASSY,POWER STEERING
|
49110-50G00-000 |
— | ||
|
2
|
2
49111-60E00-000 PULLEY ASSY |
49111-60E00-000 |
US $200.56 |
||
|
3
|
3
49112-60E00-000 CONNECTOR SET |
49112-60E00-000 |
US $50.42 |
||
|
4
|
4
49113-82C00-000 TERMINAL SET95 MODEL,96 MODEL |
49113-82C00-000 |
US $62.93 |
||
|
4
|
4
49113-70AA0-000
TERMINAL SET
97 MODEL |
49113-70AA0-000 |
— | ||
|
5
|
5
49114-60E00-000 SEAL SET95 MODEL,96 MODEL |
49114-60E00-000 |
US $53.36 |
||
|
5
|
5
49114-50G00-000
SEAL SET
97 MODEL |
49114-50G00-000 |
— | ||
|
6
|
6
49115-60E00-000
BOLT SET
95 MODEL,96 MODEL |
49115-60E00-000 |
— | ||
|
6
|
6
49115-56B20-000 BOLT SET97 MODEL |
49115-56B20-000 |
US $13.98 |
||
|
7
|
7
95111-50G01-000
Bracket, compressor
|
95111-50G01-000 |
— | ||
| replacement | |||||
|
7
|
7
95111-50G00-000
Bracket, compre
|
95111-50G00-000 |
— | ||
|
8
|
8
09103-08254-000 BOLT(8X20)Bolt, rear |
09103-08254-000 |
from US $4.13 |
||
|
9
|
9
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
9
|
9
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
10
|
10
09103-10229-000 BOLT(10X32)Bolt, crankshaft (10x32) |
09103-10229-000 |
from US $2.40 |
||
|
11
|
11
09103-10236-000 BOLT(10X69) |
09103-10236-000 |
US $43.40 |
||
|
12
|
12
09103-10235-000 BOLT(10X50)Bolt (10x50) |
09103-10235-000 |
from US $2.24 |
||
|
13
|
13
49130-60E00-000 BRACKET,PUMP |
49130-60E00-000 |
US $42.69 |
||
|
14
|
14
49140-52G50-000
Tank, power steering oil
|
49140-52G50-000 |
— | ||
|
15
|
15
49141-52G50-000
Cap, oil tank
|
49141-52G50-000 |
— | ||
|
16
|
16
02162-06253-000
Bolt
|
02162-06253-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
17
|
17
49150-60B20-000
BRACKET,OIL TANK
|
49150-60B20-000 |
— | ||
|
18
|
18
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
49160-50G20-000 PULLEY,BELT TENSION |
49160-50G20-000 |
US $138 |
||
|
20
|
20
49161-60B10-000 BOLT,BELT TENSION PULLEY |
49161-60B10-000 |
from US $7.84 |
||
|
21
|
21
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
95912-60E10-000
BOLT,ADJUST
|
95912-60E10-000 |
— | ||
|
23
|
23
49180-50G10-000
Belt, power steering
|
49180-50G10-000 |
— | ||
|
24
|
24
49201-52G00-000
Pipe assy, power steering
|
49201-52G00-000 |
— | ||
|
25
|
25
49231-60E00-000 CLAMP,PIPE |
49231-60E00-000 |
US $4.86 |
||
|
26
|
26
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
27
|
27
49232-52G00-000
Bush,power strg pipe
|
49232-52G00-000 |
— | ||
|
28
|
28
49243-60E20-000 STAY,OIL TANK |
49243-60E20-000 |
US $17.85 |
||
|
29
|
29
49221-52G00-000
Hose, high pressure
|
49221-52G00-000 |
— | ||
| replacement | |||||
|
29
|
29
49221-52GA0-000
Hose, high pressure
|
49221-52GA0-000 |
— | ||
|
30
|
30
09140-12039-000 NUT |
09140-12039-000 |
from US $1.76 |
||
|
31
|
31
09162-12006-000 WASHER,LOCK |
09162-12006-000 |
from US $1.28 |
||
|
32
|
32
49222-60E10-000 HOSE,LOW PRESS TANK TO PUMPTO PUMP |
49222-60E10-000 |
US $144 |
||
|
33
|
33
49223-60E10-000 HOSE,LOW PRESS PIPE TO TANKTO TANK |
49223-60E10-000 |
US $144 |
||
|
34
|
34
09401-21403-000
Clip (ca only)
|
09401-21403-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-20405-000 CLIPClip, tank |
09401-20405-000 |
from US $5.56 |
||
|
35
|
35
09401-16405-000 CLAMP |
09401-16405-000 |
from US $5.46 |
||
