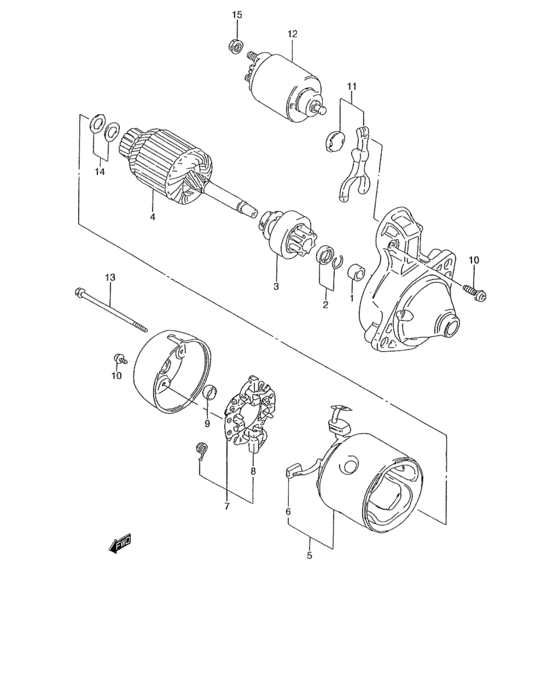

A starting motor (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31100-826D2-000
Motor assy, starter
|
31100-826D2-000 |
— | ||
| replacement | |||||
|
|
31100-826D2-REM
New Genuine Part
|
31100-826D2-REM |
— | ||
|
1
|
1
31152-79030-000 BEARING,FRONT |
31152-79030-000 |
from US $4.68 |
||
|
2
|
2
31313-80090-000 RING SET |
31313-80090-000 |
US $11.30 |
||
|
3
|
3
31320-82631-000 CLUTCH ASSY |
31320-82631-000 |
US $122.91 |
||
|
4
|
4
31311-82632-000 ARMATURE |
31311-82632-000 |
US $379.04 |
||
|
5
|
5
31110-83030-000
YOKE ASSY
|
31110-83030-000 |
— | ||
|
6
|
6
31131-80090-000 BRUSH(+) |
31131-80090-000 |
US $11.30 |
||
|
7
|
7
31173-82130-000 HOLDER ASSY,BRUSH |
31173-82130-000 |
US $58.14 |
||
|
8
|
8
31132-80090-000 BRUSH(-) |
31132-80090-000 |
US $11.30 |
||
|
9
|
9
31172-79030-000 BUSH |
31172-79030-000 |
US $5.63 |
||
|
10
|
10
31136-79030-000
SCREW ASSY
|
31136-79030-000 |
— | ||
| replacement | |||||
|
10
|
10
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
|
11
|
11
31191-82030-000 LEVER ASSY |
31191-82030-000 |
US $17.37 |
||
|
12
|
12
31220-84030-000 SWITCH ASSY |
31220-84030-000 |
US $177.74 |
||
|
13
|
13
31261-82130-000 Bolt |
31261-82130-000 |
US $6.40 |
||
|
14
|
14
31361-79030-000 WASHER |
31361-79030-000 |
US $8.02 |
||
|
15
|
15
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
