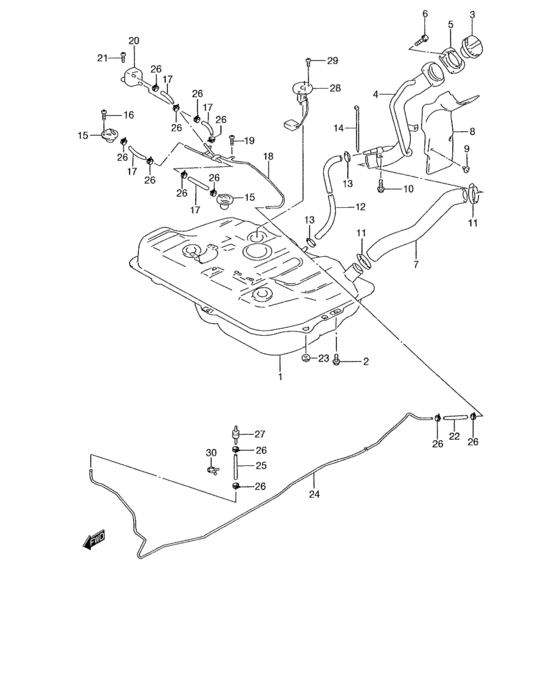

B fuel tank (95 MODEL:EXCEPT AT:California) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-50G00-000
Tank assy, fuel
|
89101-50G00-000 |
— | ||
|
2
|
2
09118-08142-000
Bolt, muffler support
|
09118-08142-000 |
— | ||
| replacement | |||||
|
2
|
2
09118-08118-000 BOLT(8X20) |
09118-08118-000 |
US $12.50 |
||
|
3
|
3
89260-65AB0-000
Cap assy, filler
|
89260-65AB0-000 |
— | ||
| replacement | |||||
|
3
|
3
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $19.80 |
||
|
4
|
4
89201-50G30-000
Neck, fuel filler
|
89201-50G30-000 |
— | ||
|
5
|
5
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
US $5.17 |
||
|
6
|
6
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
89241-50G00-000
Hose, fuel tank filler
|
89241-50G00-000 |
— | ||
|
8
|
8
89271-50G00-000
PROTECTOR,FILLER NECK
|
89271-50G00-000 |
— | ||
|
9
|
9
09409-07318-5ES CLIP(BLACK) |
09409-07318-5ES |
US $23.60 |
||
|
10
|
10
09118-06101-000
BOLT(6X12)
|
09118-06101-000 |
— | ||
|
11
|
11
09402-57511-000 CLAMP |
09402-57511-000 |
from US $6.24 |
||
|
12
|
12
89291-50G00-000
Hose, breather
|
89291-50G00-000 |
— | ||
|
13
|
13
09402-22501-000
Clamp
|
09402-22501-000 |
— | ||
| replacement | |||||
|
13
|
13
09402-22511-000 CLAMP |
09402-22511-000 |
from US $10.56 |
||
|
14
|
14
09407-22404-000 CLAMPClamp,oil hose |
09407-22404-000 |
US $2.15 |
||
|
15
|
15
89485-50G00-000 VALVE,FUEL CUT |
89485-50G00-000 |
US $51.15 |
||
|
16
|
16
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->105 |
09355-54115-600 |
from US $7.20 |
||
|
18
|
18
89420-50G00-000
Pipe, fuel evap
|
89420-50G00-000 |
— | ||
|
19
|
19
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
20
|
20
89411-50G00-000
Separator,fuel and vapor
|
89411-50G00-000 |
— | ||
| replacement | |||||
|
20
|
20
89411-50G01-000 SEPARATOR,FUEL AND VAPOR |
89411-50G01-000 |
US $26.40 |
||
|
21
|
21
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
22
|
22
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->130 |
09355-54115-600 |
from US $7.20 |
||
|
23
|
23
09308-05011-000 GROMMET |
09308-05011-000 |
US $9.20 |
||
|
24
|
24
89482-50G00-000
Pipe, evap main
|
89482-50G00-000 |
— | ||
|
25
|
25
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->140 |
09355-54115-600 |
from US $7.20 |
||
|
26
|
26
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
27
|
27
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
28
|
28
34810-50G10-000
GAUGE ASSY,FUEL LEVEL
|
34810-50G10-000 |
— | ||
|
29
|
29
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
30
|
30
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose |
09408-00008-000 |
from US $3.37 |
||
