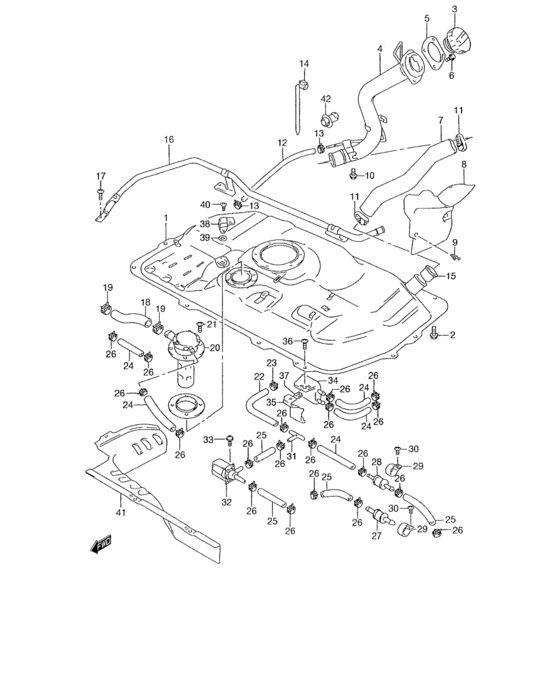

B fuel tank (98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-50G20-000
Tank assy, fuel
|
89101-50G20-000 |
— | ||
|
2
|
2
09118-08151-000
Bolt (8x25)
|
09118-08151-000 |
— | ||
| replacement | |||||
|
2
|
2
09118-08151-XC0 BOLT(8X25) |
09118-08151-XC0 |
US $21.70 |
||
|
3
|
3
89260-50GB0-000
Cap assy, fuel filler
|
89260-50GB0-000 |
— | ||
| replacement | |||||
|
3
|
3
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $19.80 |
||
|
4
|
4
89201-50G20-000
Neck, fuel filler
|
89201-50G20-000 |
— | ||
|
5
|
5
89285-70G00-000 PACKING,FUEL FILLER |
89285-70G00-000 |
US $6.26 |
||
|
6
|
6
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
89241-50G10-000
Hose, fuel tank filler
|
89241-50G10-000 |
— | ||
|
8
|
8
89271-50G00-000
PROTECTOR,FILLER NECK
|
89271-50G00-000 |
— | ||
|
9
|
9
09409-07318-5ES CLIP(BLACK) |
09409-07318-5ES |
US $23.60 |
||
|
10
|
10
09116-06173-000
Bolt
|
09116-06173-000 |
— | ||
| replacement | |||||
|
10
|
10
09116-06205-000 BOLT(6X16) |
09116-06205-000 |
from US $0.96 |
||
|
11
|
11
09402-57511-000 CLAMP |
09402-57511-000 |
from US $6.24 |
||
|
12
|
12
09356-55118-600 HOSEL:600->470 |
09356-55118-600 |
US $79.49 |
||
|
13
|
13
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
14
|
14
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
15
|
15
89280-50G20-000
VALVE,FUEL TANK INLET
|
89280-50G20-000 |
— | ||
|
16
|
16
89430-50G20-000
Pipe, air suction
|
89430-50G20-000 |
— | ||
|
17
|
17
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
18
|
18
89465-50G20-000
Hose, vapor control valve
|
89465-50G20-000 |
— | ||
|
19
|
19
09401-22404-000
Clip
|
09401-22404-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-22405-000 CLIP |
09401-22405-000 |
US $20.20 |
||
|
20
|
20
89491-50G20-000
Valve, vapor control
|
89491-50G20-000 |
— | ||
|
21
|
21
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
22
|
22
89486-50G20-000
Hose, cut valve
|
89486-50G20-000 |
— | ||
|
23
|
23
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
24
|
24
09356-55118-600 HOSEL:600->110 |
09356-55118-600 |
US $79.49 |
||
|
25
|
25
09356-55118-600 HOSEL:600->70 |
09356-55118-600 |
US $79.49 |
||
|
26
|
26
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
27
|
27
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
28
|
28
18135-81050-000 VALVE,2WAY CHECK |
18135-81050-000 |
US $40.85 |
||
|
29
|
29
89485-60B00-000 CLAMP,CHECK VALVE |
89485-60B00-000 |
US $3.02 |
||
|
30
|
30
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
31
|
31
09367-06002-000 JOINT,3 WAY3 way |
09367-06002-000 |
from US $1.67 |
||
|
32
|
32
89452-50G20-000
Valve, evap bypass
|
89452-50G20-000 |
— | ||
|
33
|
33
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
34
|
34
89411-50G20-000
Separator, fuel and vapor
|
89411-50G20-000 |
— | ||
|
35
|
35
89412-50G20-000
Protector, fuel separator
|
89412-50G20-000 |
— | ||
|
36
|
36
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
36
|
36
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
36
|
36
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
37
|
37
09148-05039-000 NUT |
09148-05039-000 |
US $1.28 |
||
|
38
|
38
89421-79E10-000
SENSOR,TANK PRESSURE
98 MODEL |
89421-79E10-000 |
— | ||
|
38
|
38
89421-79E20-000
Sensor, tank pressure
99 MODEL,00 MODEL,01 MODEL |
89421-79E20-000 |
— | ||
|
39
|
39
89425-79E00-000
O-RING,TANK PRESSURE SENSOR
|
89425-79E00-000 |
— | ||
|
40
|
40
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
41
|
41
89311-50G20-000
Protector, fuel tank
|
89311-50G20-000 |
— | ||
|
42
|
42
89541-50G20-000
Connector, suct outlet hose
|
89541-50G20-000 |
— | ||
