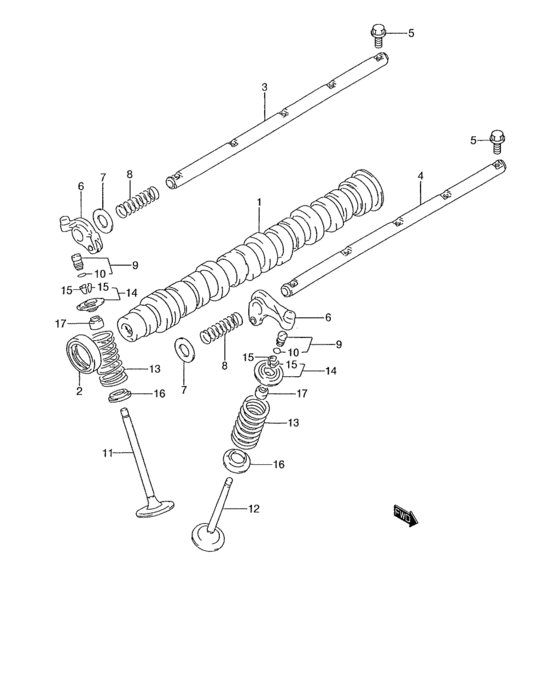

Camshaft (95, 96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-51G00-000
CAMSHAFT
|
12711-51G00-000 |
— | ||
|
2
|
2
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
3
|
3
12860-51G00-000
SHAFT,INTK ROCKER ARM
|
12860-51G00-000 |
— | ||
|
4
|
4
12870-51G00-000
SHAFT,EXH ROCKER ARM
|
12870-51G00-000 |
— | ||
|
5
|
5
09103-07009-000
BOLT(7X30)
|
09103-07009-000 |
— | ||
|
6
|
6
12840-51G00-000
ARM,VALVE ROCKER
|
12840-51G00-000 |
— | ||
|
7
|
7
08212-16301-000 WASHER |
08212-16301-000 |
US $9.90 |
||
|
8
|
8
12891-51G00-000 SPRING,ROCKER ARMSpring, rocket arm |
12891-51G00-000 |
US $1.60 |
||
|
9
|
9
12860-38B00-000
Adjuster, valve lash
|
12860-38B00-000 |
— | ||
| replacement | |||||
|
9
|
9
12860-38B01-000 ADJUSTER,HYDRAULIC VALVE LASH |
12860-38B01-000 |
from US $98.84 |
||
|
10
|
10
12864-38B00-000
O ring
|
12864-38B00-000 |
— | ||
| replacement | |||||
|
10
|
10
12864-38B01-000 O RING |
12864-38B01-000 |
from US $2.72 |
||
|
11
|
11
12911-82010-000 Valve,intakeValve, intake |
12911-82010-000 |
US $68.45 |
||
|
12
|
12
12915-82062-000 Valve,exhaustValve, exhaust |
12915-82062-000 |
US $43.79 |
||
|
13
|
13
12921-60A00-000 SPRING,VALVESpring, valve |
12921-60A00-000 |
US $15.20 |
||
|
14
|
14
12900-82810-000
Retainer,cotter
|
12900-82810-000 |
— | ||
| replacement | |||||
|
14
|
14
12900-82811-000 RETAINER SET,COTTER VALVE |
12900-82811-000 |
US $6.88 |
||
|
15
|
15
12932-82000-000 COTTER,VALVE |
12932-82000-000 |
from US $1.52 |
||
|
16
|
16
12933-73000-000 SEAT,VALVE SPRINGSeat, valve spring |
12933-73000-000 |
US $1.60 |
||
|
17
|
17
09289-07007-000 SEAL,OIL(6.5X14.5X9.7)Seal |
09289-07007-000 |
from US $3.69 |
||
