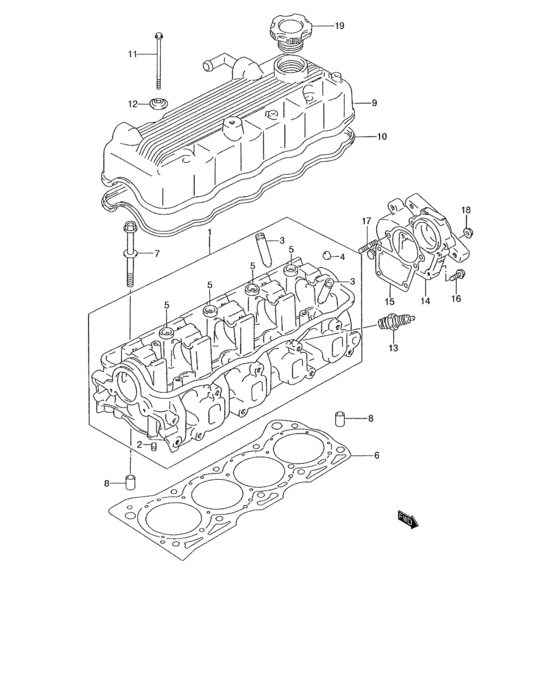

Cylinder head (95, 96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-51G01-000
Head,cylinder
|
11110-51G01-000 |
— | ||
|
2
|
2
11112-53A00-000 PLUG,OIL VENTURI |
11112-53A00-000 |
from US $2.24 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve |
11115-82000-001 |
US $12.80 |
||
|
4
|
4
09241-12002-000 PLUG |
09241-12002-000 |
US $12.90 |
||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
6
|
6
11141-86502-000 GASKET,CYL HEADGasket, cylinder head |
11141-86502-000 |
from US $50.33 |
||
|
7
|
7
11119-82000-000 BOLT,CYLINDER HEADBolt, cylinder head |
11119-82000-000 |
US $10.64 |
||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
9
|
9
11170-51G01-000 Cover,cylinder head |
11170-51G01-000 |
US $206.08 |
||
|
10
|
10
11189-72F00-000 GASKET,CYL HEAD COVER |
11189-72F00-000 |
US $19.50 |
||
|
11
|
11
01550-06803-000
Bolt
|
01550-06803-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0680B-000 BOLT |
01550-0680B-000 |
from US $4.76 |
||
|
12
|
12
11180-82010-000 WASHER,CYL HEAD COVER SEAL |
11180-82010-000 |
from US $2.95 |
||
|
13
|
13
09482-00285-000
PLUG,SPARK(BPR6ES-11)
|
09482-00285-000 |
— | ||
|
13
|
13
09482-00421-000
PLUG,SPARK(ND W20EPR-U11)
|
09482-00421-000 |
— | ||
|
14
|
14
11160-51G01-000
Case, distributor
95 MODEL |
11160-51G01-000 |
— | ||
|
14
|
14
11160-51G12-000
Case, distributor
96 MODEL,97 MODEL |
11160-51G12-000 |
— | ||
|
15
|
15
11169-51G00-000 GASKET,DISTRIBUTOR CASE |
11169-51G00-000 |
US $4.23 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
16
|
16
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
01421-06253-000
Stud bolt
|
01421-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
01421-0625A-000 BOLT,STUD |
01421-0625A-000 |
from US $0.98 |
||
|
18
|
18
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
16920-60B04-000
Cap, oil filler
|
16920-60B04-000 |
— | ||
| replacements | |||||
|
19
|
19
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
|
19
|
19
16920-83G01-000
CAP OIL FILLER
|
16920-83G01-000 |
— | ||
