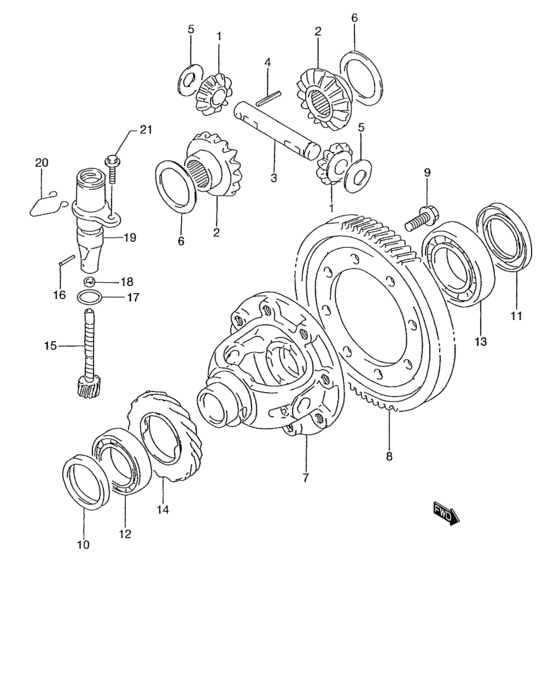

Diff gear and speed gear (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-78G11-000
ピニオン,ディファレンシャル
|
27331-78G11-000 |
— | ||
| replacement | |||||
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL |
27331-78FJ1-000 |
from US $26.60 |
||
|
2
|
2
27341-82000-000
ギヤ,ディファレンシャル
|
27341-82000-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-76G12-000 GEAR,DIFF |
27341-76G12-000 |
US $64.77 |
||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION |
27351-62B00-000 |
from US $13.97 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36) |
09205-05007-000 |
US $1.76 |
||
|
5
|
5
09164-15003-000 WASHER |
09164-15003-000 |
from US $0.95 |
||
|
6
|
6
09160-35002-000 WASHER(35X46X1) |
09160-35002-000 |
from US $1.40 |
||
|
6
|
6
09160-35003-000 WASHER(35X46X1.1) |
09160-35003-000 |
from US $1.96 |
||
|
6
|
6
09160-35004-000 WASHER(35X46X1.2) |
09160-35004-000 |
from US $1.78 |
||
|
6
|
6
09160-35006-000 WASHER(35X46X0.9) |
09160-35006-000 |
from US $1.60 |
||
|
6
|
6
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) |
09160-35008-000 |
from US $6.70 |
||
|
6
|
6
09160-35009-000 WASHER(35X46X1.05) |
09160-35009-000 |
from US $6.70 |
||
|
6
|
6
09160-35010-000 WASHER(35X46X1.15) |
09160-35010-000 |
from US $6.49 |
||
|
7
|
7
27411-63B00-000
CASE,DIFF
|
27411-63B00-000 |
— | ||
|
8
|
8
27511-54G00-000
GEAR,FINAL
|
27511-54G00-000 |
— | ||
|
9
|
9
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch |
09103-10189-000 |
from US $2.40 |
||
|
10
|
10
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
10
|
10
27431-73H30-000 SEAL,OIL |
27431-73H30-000 |
from US $12.67 |
||
|
11
|
11
09283-35037-000 SEAL,OIL(35X62X9.5) |
09283-35037-000 |
from US $8.46 |
||
|
12
|
12
08113-60070-000 Bearing |
08113-60070-000 |
from US $10.83 |
||
| replacements | |||||
|
12
|
12
09262-35070-000 BEARING(35X62X14) |
09262-35070-000 |
from US $23.20 |
||
|
12
|
12
09262-35021-0A0 BEARING(35X62X14)Bearing |
09262-35021-0A0 |
from US $13.86 |
||
|
13
|
13
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) |
09262-35038-000 |
from US $22.04 |
||
|
14
|
14
26121-60B00-000 GEAR,SPDOM DRIVE |
26121-60B00-000 |
US $18.95 |
||
|
15
|
15
26131-64B01-000 GEAR,SPDOM DRIVEN |
26131-64B01-000 |
US $38.76 |
||
|
16
|
16
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring |
09205-03028-000 |
US $12.50 |
||
|
17
|
17
09280-16012-000 O RING(D:3.6,ID:15.4) |
09280-16012-000 |
US $21.70 |
||
|
18
|
18
09282-08001-000 SEAL,OIL(8X16X5)CASE |
09282-08001-000 |
US $2.31 |
||
|
19
|
19
29431-60B02-000
ケース,スピードメータドリブンギヤ
|
29431-60B02-000 |
— | ||
| replacement | |||||
|
19
|
19
29431-74C00-000 CASE,SPDOM DRIVEN GEAR |
29431-74C00-000 |
US $61.56 |
||
|
20
|
20
26191-61D01-000
クリップ,スピードメータケース
|
26191-61D01-000 |
— | ||
| replacement | |||||
|
20
|
20
26191-61D0V-000 CLIP,SPEEDOMETER CASE |
26191-61D0V-000 |
US $12.62 |
||
|
21
|
21
09135-06022-000
Bolt
|
09135-06022-000 |
— | ||
| replacement | |||||
|
21
|
21
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
