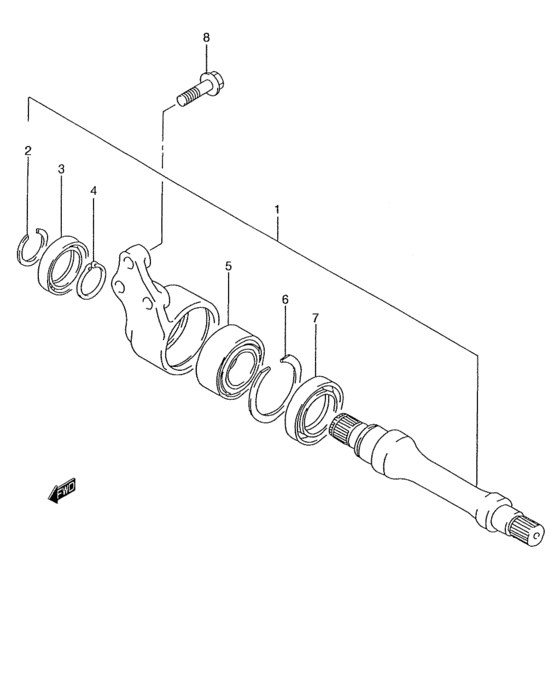

Drive shaft (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-63B03-000 SHAFT ASSY,DRIVE INTERMEDIATE->27800-60G00,USED WITH 01550-10253(3PCS) |
27800-63B03-000 |
US $513.92 |
||
| replacement | |||||
|
1
|
1
27800-60G04-000
SHAFT ASSY,DRIVE INTERMEDIATE
->27800-60G00,USED WITH 01550-10253(3PCS) |
27800-60G04-000 |
— | ||
|
1
|
1
27800-60G01-000
シャフトアッシ,ドライブインタメジェート
2S2AB21H S6604656~,->27800-60G03,USED WITH 01550-10353(3PCS) |
27800-60G01-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-1035A-000 BOLTBolt, fr fork upper 2S2AB21H S6604656~,->27800-60G03,USED WITH 01550-10353(3PCS) |
01550-1035A-000 |
from US $5.68 |
||
|
1
|
1
27800-60G04-000
SHAFT ASSY,DRIVE INTERMEDIATE
2S2AB21H S6604656~,->27800-60G03,USED WITH 01550-10353(3PCS) |
27800-60G04-000 |
— | ||
|
1
|
1
01550-10353-000
Bolt
2S2AB21H S6604656~,->27800-60G03,USED WITH 01550-10353(3PCS) |
01550-10353-000 |
— | ||
|
1
|
1
27800-60G03-000
Shaft assy,drive intermediate
2S2AB21H V6600056~ |
27800-60G03-000 |
— | ||
| replacement | |||||
|
1
|
1
27800-60G04-000
SHAFT ASSY,DRIVE INTERMEDIATE
2S2AB21H V6600056~ |
27800-60G04-000 |
— | ||
|
2
|
2
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
|
3
|
3
27841-63B00-000 SEAL,DRIVE INTERMEDIATE,R |
27841-63B00-000 |
from US $10.55 |
||
|
3
|
3
09283-40018-000 SEAL,OIL(40X58X6)Seal, dust outer 2S2AB21H S6604656~ |
09283-40018-000 |
from US $15.20 |
||
|
3
|
3
27841-64G00-000 SEAL,DRIVE INTERMEDIATE2S2AB21H T6602189~ |
27841-64G00-000 |
from US $10.19 |
||
|
4
|
4
08331-31366-000
Circlip
|
08331-31366-000 |
— | ||
| replacement | |||||
|
4
|
4
08331-3136A-000 CIRCLIP |
08331-3136A-000 |
US $1.92 |
||
|
4
|
4
08331-41586-000
Circlip
2S2AB21H S6604656~ |
08331-41586-000 |
— | ||
| replacement | |||||
|
4
|
4
08331-4158A-000 CIRCLIP2S2AB21H S6604656~ |
08331-4158A-000 |
from US $2.56 |
||
|
5
|
5
27831-63B20-000 BEARING,DRIVE INTERMEDIATE |
27831-63B20-000 |
US $109.60 |
||
|
5
|
5
09262-28030-000
Bearing,28x58x16
2S2AB21H S6604656~ |
09262-28030-000 |
— | ||
| replacement | |||||
|
5
|
5
27831-68L10-000 BEARING,DRIVE INTERMEDIATE2S2AB21H S6604656~ |
27831-68L10-000 |
from US $29.61 |
||
|
6
|
6
27851-63B00-000 CIRCLIP,INTERMEDIATE BRG |
27851-63B00-000 |
US $2.56 |
||
|
6
|
6
08331-41586-000
Circlip
2S2AB21H S6604656~ |
08331-41586-000 |
— | ||
| replacement | |||||
|
6
|
6
08331-4158A-000 CIRCLIP2S2AB21H S6604656~ |
08331-4158A-000 |
from US $2.56 |
||
|
7
|
7
27842-63B00-000 SEAL,DRIVE INTERMEDIATE,L |
27842-63B00-000 |
from US $11.36 |
||
|
7
|
7
09283-40018-000 SEAL,OIL(40X58X6)Seal, dust outer 2S2AB21H S6604656~ |
09283-40018-000 |
from US $15.20 |
||
|
7
|
7
27841-64G00-000 SEAL,DRIVE INTERMEDIATE2S2AB21H T6602189~ |
27841-64G00-000 |
from US $10.19 |
||
|
8
|
8
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
8
|
8
01550-10253-000
Bolt
2S2AB21H S6604656~ |
01550-10253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-1025B-000 BoltBolt, rr swgarm bracket, l 2S2AB21H S6604656~ |
01550-1025B-000 |
from US $5.59 |
||
|
8
|
8
01550-1025A-000 BOLTBolt, drive gear 2S2AB21H S6604656~ |
01550-1025A-000 |
from US $1.06 |
||
|
8
|
8
01550-10353-000
Bolt
2S2AB21H V6600056~ |
01550-10353-000 |
— | ||
