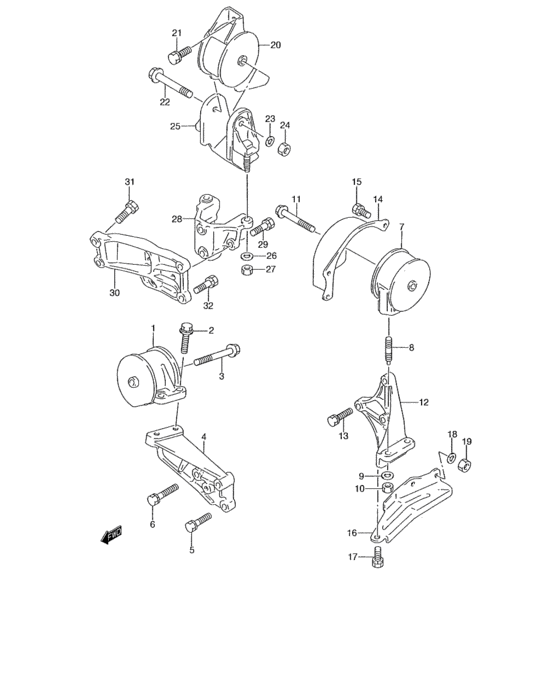

Engine mounting (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-51G10-000
Mounting, engine rh
|
11610-51G10-000 |
— | ||
|
2
|
2
09118-10053-000
ボルト,10X40
95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL,00 MODEL |
09118-10053-000 |
— | ||
| replacement | |||||
|
2
|
2
09112-10015-000 BOLT(10X40)95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL,00 MODEL |
09112-10015-000 |
US $1.68 |
||
|
2
|
2
09112-10015-000 BOLT(10X40)01 MODEL |
09112-10015-000 |
US $1.68 |
||
|
3
|
3
01550-10853-000
Bolt
|
01550-10853-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1085A-000 BOLT |
01550-1085A-000 |
US $1.76 |
||
|
4
|
4
11641-64B10-000 BRACKET,ENG MTG,R |
11641-64B10-000 |
US $65.50 |
||
|
5
|
5
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
6
|
6
01570-10503-000
ボルト
|
01570-10503-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1050A-000 Bolt |
01570-1050A-000 |
US $1.28 |
||
|
7
|
7
11620-60B11-000 MOUNTING,ENG,L |
11620-60B11-000 |
US $144.80 |
||
|
8
|
8
09108-10107-000 BOLT,STUD |
09108-10107-000 |
US $2.24 |
||
|
9
|
9
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
9
|
9
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
10
|
10
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
09103-10214-000
ボルト,10X80
|
09103-10214-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-10341-000 BOLT(10X80) |
09103-10341-000 |
US $2.56 |
||
|
12
|
12
11651-63B10-000
BRACKET,ENG MTG,L
|
11651-63B10-000 |
— | ||
|
13
|
13
01570-10353-000
Bolt, lower
|
01570-10353-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-1035A-000 Bolt |
01570-1035A-000 |
US $1.07 |
||
|
14
|
14
11671-60B10-000
BRACKET,ENG MTG BODY,L
|
11671-60B10-000 |
— | ||
|
15
|
15
01570-08253-000
Bolt, upper
95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL |
01570-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01570-0825B-000 BOLT95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL |
01570-0825B-000 |
US $1.12 |
||
|
15
|
15
01570-0825A-000 BOLT95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL |
01570-0825A-000 |
from US $1.06 |
||
|
15
|
15
09112-08002-000 BOLT(8X25)00 MODEL,01 MODEL |
09112-08002-000 |
from US $1.22 |
||
|
16
|
16
11655-63B10-000 STIFFENER,ENG LEFT MTG BRKT |
11655-63B10-000 |
US $11.19 |
||
|
17
|
17
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
17
|
17
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
18
|
18
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
18
|
18
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
19
|
19
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
19
|
19
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
20
|
20
11710-63B10-000 MOUNTING,ENG RR |
11710-63B10-000 |
US $104.80 |
||
|
21
|
21
09118-10054-000 BOLT(10X30) |
09118-10054-000 |
US $1.68 |
||
|
22
|
22
09103-10214-000
ボルト,10X80
|
09103-10214-000 |
— | ||
| replacement | |||||
|
22
|
22
09103-10341-000 BOLT(10X80) |
09103-10341-000 |
US $2.56 |
||
|
23
|
23
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
23
|
23
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
24
|
24
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
24
|
24
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
25
|
25
11750-60B11-000 BRACKET,ENG RR MTG NO.2 |
11750-60B11-000 |
US $47.20 |
||
|
26
|
26
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
26
|
26
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
26
|
26
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
27
|
27
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
27
|
27
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
27
|
27
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
28
|
28
11741-63B10-000 BRACKET,ENG RR MTG NO.1 |
11741-63B10-000 |
US $83.20 |
||
|
29
|
29
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
29
|
29
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
30
|
30
11731-63B10-000 BRACKET,ENG RR MTG |
11731-63B10-000 |
US $122.40 |
||
|
31
|
31
01570-10353-000
Bolt, lower
|
01570-10353-000 |
— | ||
| replacement | |||||
|
31
|
31
01570-1035A-000 Bolt |
01570-1035A-000 |
US $1.07 |
||
|
32
|
32
09117-10048-000 BOLT(10X35) |
09117-10048-000 |
US $1.68 |
||
