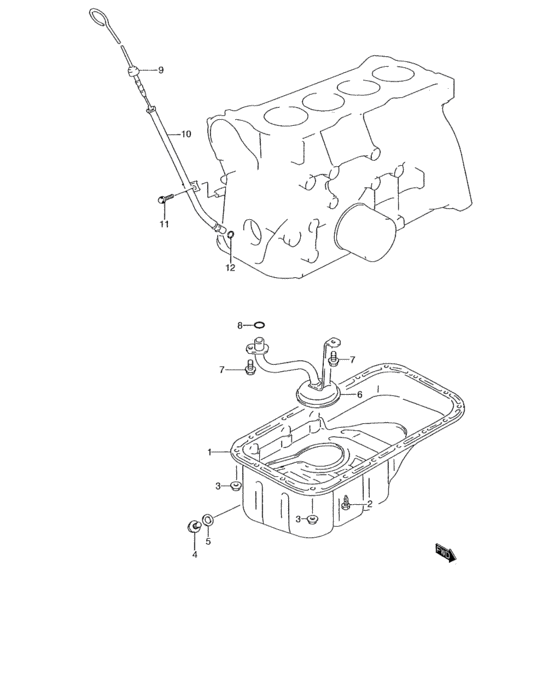

Oil pan (OIL PAN) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-71C01-000 PAN,OIL95 MODEL |
11510-71C01-000 |
US $114.82 |
||
|
1
|
1
11510-71C10-000 PAN,OIL96 MODEL,97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
11510-71C10-000 |
US $136.90 |
||
|
2
|
2
09117-06061-000 BOLT(6X16) |
09117-06061-000 |
from US $1.13 |
||
|
3
|
3
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
4
|
4
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
4
|
4
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.33 |
||
|
5
|
5
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.17 |
||
|
6
|
6
16520-63B00-000 STRAINER,OIL PUMP |
16520-63B00-000 |
US $64 |
||
|
7
|
7
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
9
|
9
16910-50G00-000
GAUGE,OIL LEVEL
95 MODEL,96 MODEL,97 MODEL |
16910-50G00-000 |
— | ||
|
9
|
9
16910-64B02-000 GAUGE,OIL LEVEL98 MODEL,99 MODEL,00 MODEL,01 MODEL |
16910-64B02-000 |
US $35.20 |
||
|
10
|
10
16930-82001-000 GUIDE,OIL LEVEL GAUGE95 MODEL,96 MODEL,97 MODEL |
16930-82001-000 |
US $14.72 |
||
|
10
|
10
16930-64B02-000 GUIDE,OIL LEVEL GAUGE98 MODEL,99 MODEL,00 MODEL,01 MODEL |
16930-64B02-000 |
US $29.60 |
||
|
11
|
11
02162-06103-000
Bolt
95 MODEL,96 MODEL,97 MODEL |
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREW95 MODEL,96 MODEL,97 MODEL |
02162-0610A-000 |
from US $0.64 |
||
|
11
|
11
09103-06168-000 BOLT(6X10)98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09103-06168-000 |
from US $1.01 |
||
|
12
|
12
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
