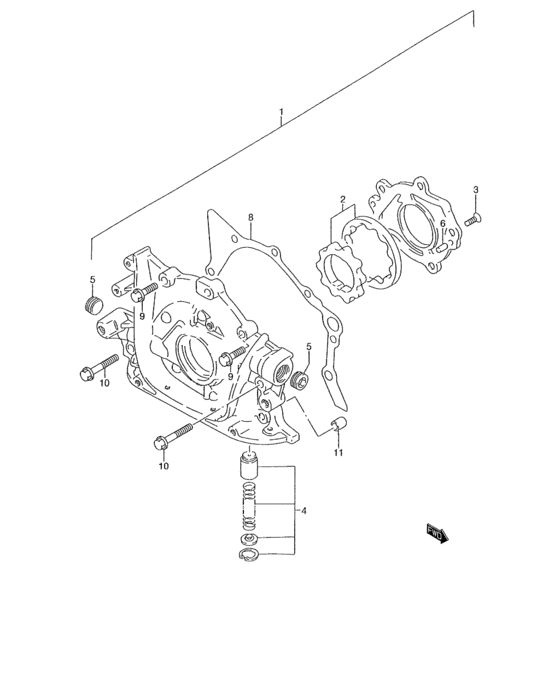

Oil pump (95 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-82840-000
ポンプセット,オイル
|
16100-82840-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-82844-000 PUMP SET,OIL |
16100-82844-000 |
US $285.20 |
||
|
2
|
2
16130-82600-000 ROTOR SET,OIL PUMP |
16130-82600-000 |
US $76.91 |
||
|
3
|
3
09126-06007-000 SCREW(6X14)Bolt |
09126-06007-000 |
from US $3.21 |
||
|
4
|
4
16150-78100-000 VALVE SET,OIL PUMP RELIEF |
16150-78100-000 |
US $11.81 |
||
|
5
|
5
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
6
|
6
16173-78100-000
PIN,OIL PUMP GEAR PLATE
|
16173-78100-000 |
— | ||
|
7
|
7
16119-60A04-000
Gasket
|
16119-60A04-000 |
— | ||
| replacement | |||||
|
7
|
7
16119-60A05-000 GASKET,OIL PUMP |
16119-60A05-000 |
US $16.80 |
||
|
8
|
8
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
8
|
8
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
9
|
9
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
9
|
9
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
10
|
10
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
