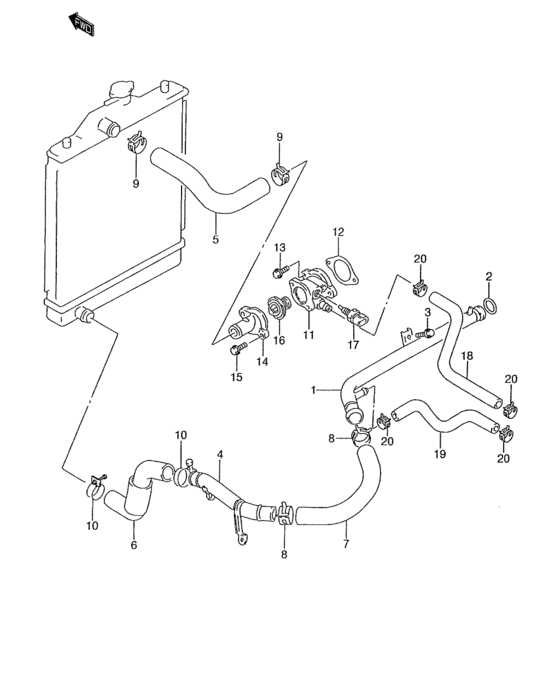

Water hose (MT:98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17840-52G00-000
Pipe, water intake no.1
|
17840-52G00-000 |
— | ||
|
1
|
1
17840-63E80-000
PIPE,WATER INTAKE NO.1
Canada:OPT |
17840-63E80-000 |
— | ||
|
2
|
2
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
3
|
3
02162-06103-000
Bolt
98 MODEL,99 MODEL |
02162-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0610A-000 SCREW98 MODEL,99 MODEL |
02162-0610A-000 |
from US $0.64 |
||
|
3
|
3
02162-06123-000
Bolt (6x12)
00 MODEL,01 MODEL |
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt 00 MODEL,01 MODEL |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket 00 MODEL,01 MODEL |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
17860-63B01-000 PIPE,WATER INTAKE NO.2 |
17860-63B01-000 |
US $87.20 |
||
|
5
|
5
17852-52G00-000
HOSE,RADIATOR INLET
|
17852-52G00-000 |
— | ||
|
6
|
6
17854-51G00-000
Hose, radiator outlet no.1
|
17854-51G00-000 |
— | ||
|
7
|
7
17855-86200-000 HOSE,RADIATOR OUTLET NO.2 |
17855-86200-000 |
US $29.64 |
||
|
8
|
8
09401-30403-000
クリップ
|
09401-30403-000 |
— | ||
| replacement | |||||
|
8
|
8
09401-30405-000 CLIP |
09401-30405-000 |
from US $3.04 |
||
|
9
|
9
09401-31406-000 CLIP98 MODEL |
09401-31406-000 |
US $3.04 |
||
|
9
|
9
09401-30403-000
クリップ
99 MODEL,00 MODEL |
09401-30403-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-30405-000 CLIP99 MODEL,00 MODEL |
09401-30405-000 |
from US $3.04 |
||
|
9
|
9
09401-30405-000 CLIP01 MODEL |
09401-30405-000 |
from US $3.04 |
||
|
10
|
10
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
11
|
11
17690-60GV0-000 CASE,THERMOSTAT |
17690-60GV0-000 |
US $84 |
||
|
12
|
12
17699-60B02-000 GASKET,THERMO CASE |
17699-60B02-000 |
from US $3.94 |
||
|
13
|
13
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
13
|
13
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
14
|
14
17561-60B00-000 CAP,WATER THERMOSTAT |
17561-60B00-000 |
US $31.20 |
||
|
15
|
15
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
15
|
15
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
16
|
16
17670-50G10-000
THERMOSTAT,WATER 88 DEG
|
17670-50G10-000 |
— | ||
| replacement | |||||
|
16
|
16
17670-50G11-000 THERMOSTAT |
17670-50G11-000 |
US $23.20 |
||
|
17
|
17
13650-50G01-000 Sensor,water Temp |
13650-50G01-000 |
from US $66.62 |
||
|
18
|
18
17871-52G00-000
Hose, heater inlet
|
17871-52G00-000 |
— | ||
|
19
|
19
17872-51G01-000
Hose, heater outlet
|
17872-51G01-000 |
— | ||
|
20
|
20
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
US $1.92 |
||
