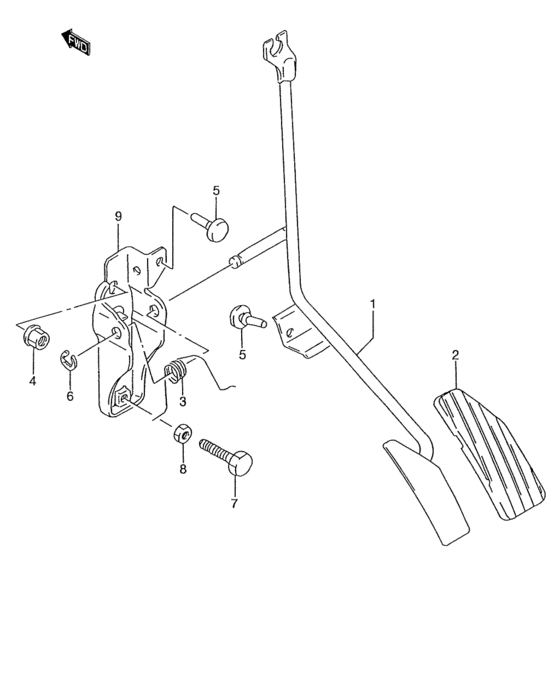

A accelerator pedal (A ACCELERATOR PEDAL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-60B80-000 PEDAL,ACCELERATOR95 MODEL,96 MODEL,97 MODEL |
49410-60B80-000 |
US $23.18 |
||
|
1
|
1
49410-60B50-000
Pedal, accelerator
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
49410-60B50-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-60B80-000 PEDAL,ACCELERATOR98 MODEL,99 MODEL,00 MODEL,01 MODEL |
49410-60B80-000 |
US $23.18 |
||
|
2
|
2
49451-60B00-000 PAD,ACCELERATOR PEDAL |
49451-60B00-000 |
US $9.44 |
||
|
3
|
3
09448-15009-000
SPRING
|
09448-15009-000 |
— | ||
|
4
|
4
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
4
|
4
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
5
|
5
09321-06026-000 CUSHION |
09321-06026-000 |
from US $1.60 |
||
|
6
|
6
08332-11075-000
E ring
|
08332-11075-000 |
— | ||
| replacement | |||||
|
6
|
6
08332-1107A-000 E RING |
08332-1107A-000 |
from US $0.96 |
||
|
7
|
7
09100-06088-000 BOLT(6X30)95 MODEL,96 MODEL,97 MODEL,98 MODEL |
09100-06088-000 |
US $22.40 |
||
|
7
|
7
09100-06150-000 BOLT(6X31)Bolt, adjuster 99 MODEL,00 MODEL,01 MODEL |
09100-06150-000 |
from US $3.15 |
||
|
8
|
8
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
49510-60B31-000 BRACKET,ACCELERATOR PEDAL |
49510-60B31-000 |
US $10.75 |
||
