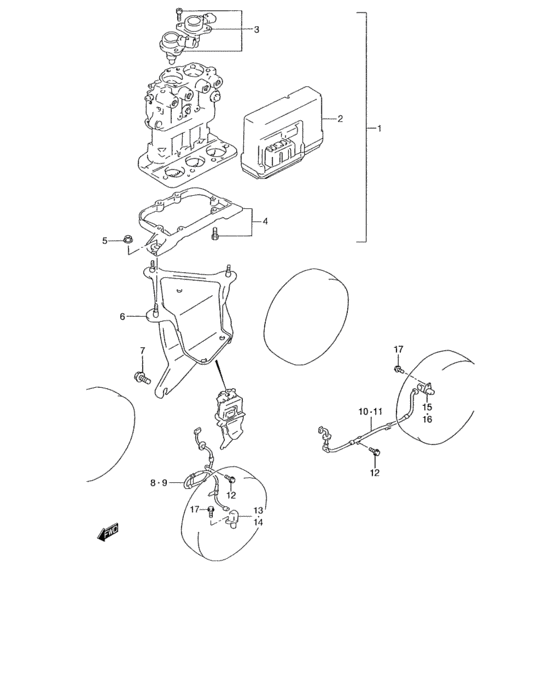

A antilock brake system (W/ABS) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-50G50-000
Actuator assy, abs
|
56100-50G50-000 |
— | ||
|
2
|
2
56110-50G50-000
Pack kit, motor
|
56110-50G50-000 |
— | ||
|
3
|
3
56120-50G50-000
バルブキット,ソレノイド
|
56120-50G50-000 |
— | ||
|
4
|
4
56130-50G50-000
COVER KIT,UNDER
|
56130-50G50-000 |
— | ||
|
5
|
5
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
6
|
6
56160-50G50-000
Bracket, abs actuator
|
56160-50G50-000 |
— | ||
|
7
|
7
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
56210-50G50-000
Harness assy, fr sensor rh
|
56210-50G50-000 |
— | ||
|
9
|
9
56220-50G50-000
Harness assy, fr sensor lh
|
56220-50G50-000 |
— | ||
|
10
|
10
56310-50G51-000
Harness assy, rr sensor rh
|
56310-50G51-000 |
— | ||
| replacement | |||||
|
10
|
10
56310-50G52-000
Harness,sensor
|
56310-50G52-000 |
— | ||
|
11
|
11
56320-50G51-000
Harness assy, rr sensor lh
|
56320-50G51-000 |
— | ||
| replacement | |||||
|
11
|
11
56320-50G52-000
Harness sensor
|
56320-50G52-000 |
— | ||
|
12
|
12
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
13
|
13
56330-50G50-000
Sensor, front rh
|
56330-50G50-000 |
— | ||
|
14
|
14
56340-50G50-000
Sensor, front lh
|
56340-50G50-000 |
— | ||
|
15
|
15
56350-50G50-000
Sensor, rear rh
|
56350-50G50-000 |
— | ||
|
16
|
16
56360-50G50-000 SENSOR,ABS |
56360-50G50-000 |
US $200.64 |
||
|
17
|
17
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
