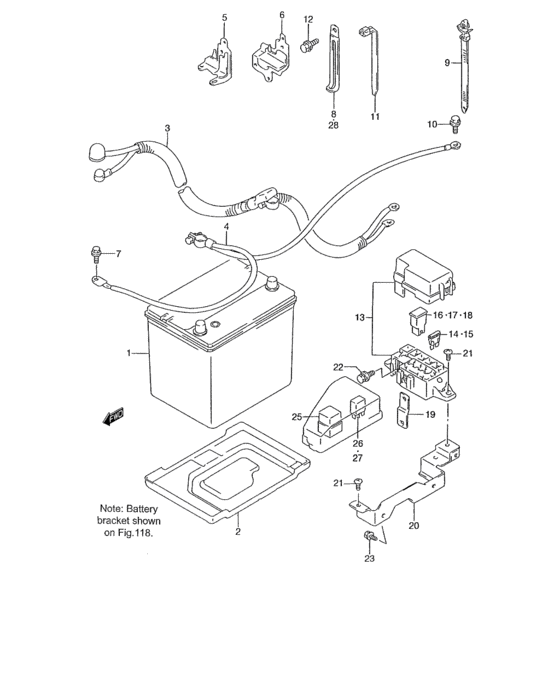

A battery and electric parts (A BATTERY AND ELECTRIC PARTS) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
33660-50G10-000
Tray, battery
95 MODEL |
33660-50G10-000 |
— | ||
|
3
|
3
33800-51G10-000
Cable, starter motor
AT |
33800-51G10-000 |
— | ||
|
4
|
4
33850-51G11-000
Cable, battery ground
AT |
33850-51G11-000 |
— | ||
|
6
|
6
36651-61B10-000
BRACKET,CABLE&HARNESS
AT |
36651-61B10-000 |
— | ||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
8
|
8
09404-08420-000 CLAMP(L:120 T:1.0)AT |
09404-08420-000 |
from US $2.08 |
||
|
9
|
9
09407-17401-000
Clamp (l:150)
|
09407-17401-000 |
— | ||
| replacement | |||||
|
9
|
9
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
10
|
10
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
10
|
10
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
11
|
11
09407-18402-000 CLAMP(L:165)Clamp (l:165) AT |
09407-18402-000 |
from US $1.98 |
||
|
12
|
12
01550-08123-000
Bolt
AT |
01550-08123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0812B-000 BoltPlug, drain AT |
01550-0812B-000 |
from US $0.96 |
||
|
12
|
12
01550-0812A-000 BOLTAT |
01550-0812A-000 |
from US $0.91 |
||
|
13
|
13
36740-50G01-000
Box assy, main fuse
|
36740-50G01-000 |
— | ||
|
14
|
14
09481-15102-000
Fuse
|
09481-15102-000 |
— | ||
| replacement | |||||
|
14
|
14
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
15
|
15
09481-30101-000 FUSE(30A) |
09481-30101-000 |
from US $1.22 |
||
|
16
|
16
09481-40203-000 FUSE(40A)N/ABS |
09481-40203-000 |
US $56.30 |
||
|
17
|
17
09481-60202-000 FUSE(60A) |
09481-60202-000 |
from US $5.47 |
||
|
18
|
18
09481-70301-000 FUSE(70A) |
09481-70301-000 |
US $64 |
||
|
19
|
19
36735-50G00-000
Bracket, main fuse box
|
36735-50G00-000 |
— | ||
|
20
|
20
36745-50G00-000
Bracket, relay box
|
36745-50G00-000 |
— | ||
|
21
|
21
09125-06104-000
Screw, fuse box
95 MODEL,96 MODEL |
09125-06104-000 |
— | ||
|
21
|
21
09125-06103-000
Screw
97 MODEL |
09125-06103-000 |
— | ||
| replacement | |||||
|
21
|
21
09125-06067-000 SCREW(6X16)Screw (6x16) 97 MODEL |
09125-06067-000 |
from US $1.35 |
||
|
21
|
21
09122-86004-000 SCREW(6X20)98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09122-86004-000 |
US $11.80 |
||
|
22
|
22
09125-06104-000
Screw, fuse box
95 MODEL,96 MODEL,97 MODEL |
09125-06104-000 |
— | ||
|
22
|
22
09122-86004-000 SCREW(6X20)98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09122-86004-000 |
US $11.80 |
||
|
23
|
23
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
24
|
24
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
25
|
25
38860-50G20-000 RELAY ASSY,ABS MOTORW/ABS |
38860-50G20-000 |
US $161.60 |
||
|
26
|
26
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
26
|
26
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
27
|
27
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
27
|
27
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
28
|
28
09404-08206-000 CLAMP(L:65 T:0.8)Clamp 97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL:AT |
09404-08206-000 |
from US $1.22 |
||
