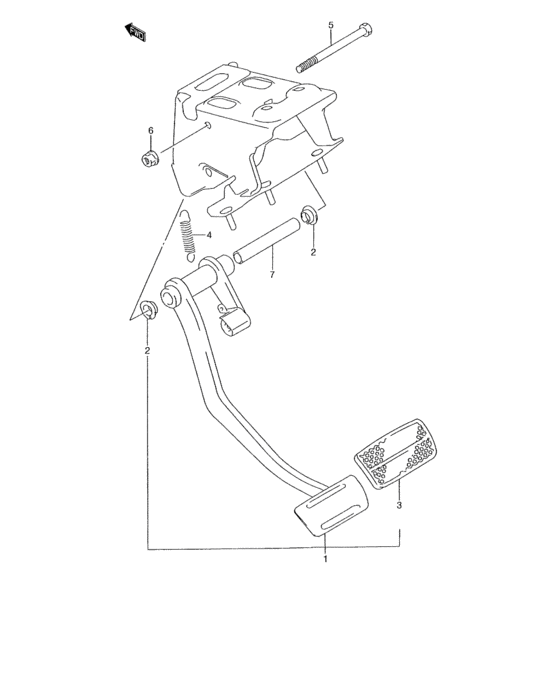

A brake pedal (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49610-50G60-000
Pedal, brake
|
49610-50G60-000 |
— | ||
|
2
|
2
49675-50G50-000
Bush, pedal boss
|
49675-50G50-000 |
— | ||
|
3
|
3
49751-50G60-000
Pad, brake pedal
|
49751-50G60-000 |
— | ||
|
4
|
4
49691-50G51-000
Spring, brake pedal return
|
49691-50G51-000 |
— | ||
|
5
|
5
49681-50G50-000
Bolt, brake pedal shaft
|
49681-50G50-000 |
— | ||
|
6
|
6
09159-10076-000
Nut, pedal shaft
|
09159-10076-000 |
— | ||
|
7
|
7
49671-50G50-000
Collar, pedal
|
49671-50G50-000 |
— |
