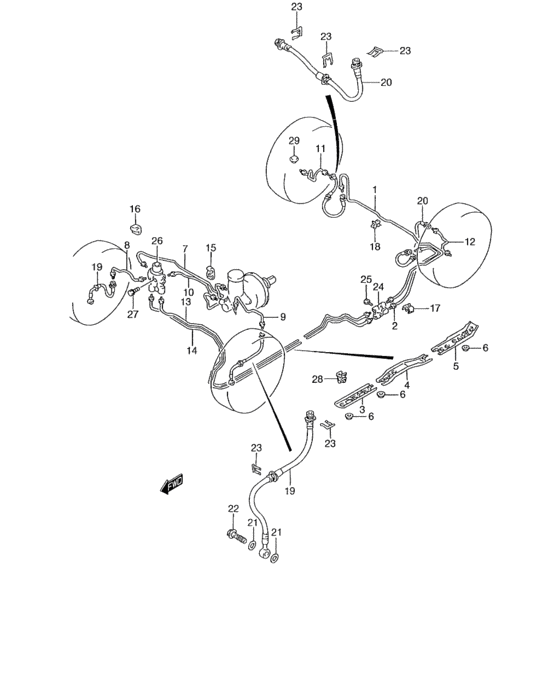

A brake piping (N/ABS) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51530-50G00-000
Pipe, joint to rr brake hose,rh
RH |
51530-50G00-000 |
— | ||
|
2
|
2
51540-60B10-000 PIPE,JOINT TO RR BK HOSE LLH |
51540-60B10-000 |
US $19.87 |
||
|
3
|
3
51711-50G00-000
Cover, pipe, front
|
51711-50G00-000 |
— | ||
|
4
|
4
51721-50G00-000
Cover, pipe, center
|
51721-50G00-000 |
— | ||
|
5
|
5
51731-50G00-000
Cover, pipe, rear
|
51731-50G00-000 |
— | ||
|
6
|
6
51741-60B00-000 NUT,PIPE COVER |
51741-60B00-000 |
US $1.60 |
||
|
7
|
7
51410-50G01-000
Pipe, master primary to valve
|
51410-50G01-000 |
— | ||
|
8
|
8
51420-50G00-000
Pipe, valve to fr brake hose,rh
RH |
51420-50G00-000 |
— | ||
|
9
|
9
51430-50G00-000
Pipe, secondary to fr brake,lh
HOSE LH |
51430-50G00-000 |
— | ||
|
10
|
10
51460-50G01-000
Pipe, master to valve
|
51460-50G01-000 |
— | ||
|
11
|
11
51470-50G00-000
Pipe, rr brake hose to cyl rh
CYLINDER RH,95 MODEL,96 MODEL |
51470-50G00-000 |
— | ||
|
11
|
11
51470-50G10-000
Pipe, rr brake hose to cyl rh
CYLINDER RH,97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
51470-50G10-000 |
— | ||
|
12
|
12
51490-50G00-000
Pipe, rr brake hose to cyl lh
CYLINDER LH,95 MODEL,96 MODEL |
51490-50G00-000 |
— | ||
|
12
|
12
51490-50G10-000
Pipe, rr brake hose to cyl lh
CYLINDER LH,97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
51490-50G10-000 |
— | ||
|
13
|
13
51510-50G00-000
Pipe, valve to joint lh
|
51510-50G00-000 |
— | ||
|
14
|
14
51520-50G00-000
Pipe, valve to joint rh
|
51520-50G00-000 |
— | ||
|
15
|
15
51751-60B00-000 CLAMP,BRAKE PIPE |
51751-60B00-000 |
US $1.60 |
||
|
16
|
16
51752-70B00-000 CLAMP,BK PIPE |
51752-70B00-000 |
US $1.60 |
||
|
17
|
17
51761-60B00-000 CLAMP,BRAKE PIPE |
51761-60B00-000 |
US $1.92 |
||
|
18
|
18
51771-63B00-000 CLAMP,BK PIPE,RR X MBR |
51771-63B00-000 |
US $2.58 |
||
|
19
|
19
51580-63B00-000 HOSE,FR BRAKE FLEXIBLE |
51580-63B00-000 |
US $55.94 |
||
|
20
|
20
51590-60B00-000 HOSE,RR BRAKE FLEXIBLE |
51590-60B00-000 |
US $43.79 |
||
|
21
|
21
09161-10009-000 WASHER(10X15X1.5)Lock washer (10X15X1.5) |
09161-10009-000 |
from US $1.06 |
||
|
22
|
22
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
23
|
23
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
23
|
23
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
24
|
24
51630-82040-000 JOINT,4WAY BRAKE |
51630-82040-000 |
US $24 |
||
|
25
|
25
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
26
|
26
51910-50G00-000
VALVE ASSY,PROPORTIONING
95 MODEL,96 MODEL,97 MODEL,98 MODEL |
51910-50G00-000 |
— | ||
|
26
|
26
51910-50G10-000
VALVE ASSY,PROPORTIONING
99 MODEL,00 MODEL,01 MODEL |
51910-50G10-000 |
— | ||
|
27
|
27
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
28
|
28
51781-60B00-000
CLAMP,BRAKE PIPE COVER
|
51781-60B00-000 |
— | ||
|
29
|
29
09250-16008-000 PLUG(OD:24) |
09250-16008-000 |
US $1.44 |
||
