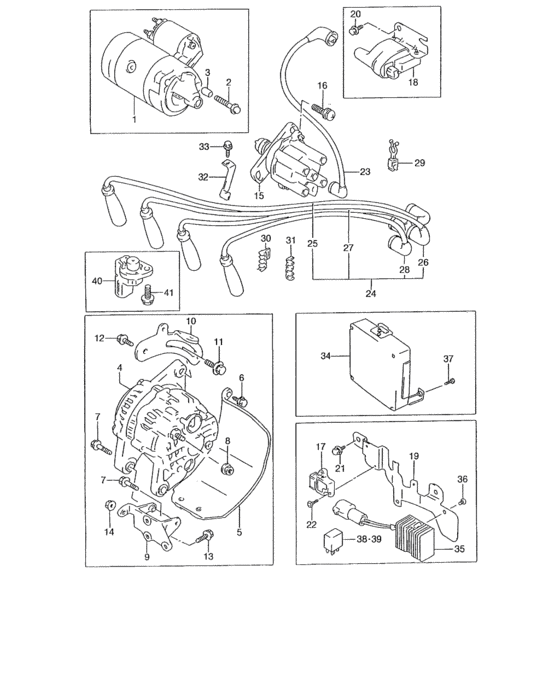

A engine electrical (95, 96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-860D2-000
Motor assy, starter
AT |
31100-860D2-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-860D2-REM
New Genuine Part
AT |
31100-860D2-REM |
— | ||
|
2
|
2
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
2
|
2
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
4
|
4
31400-50G10-000
Generator assy
|
31400-50G10-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-50G10-REM
Alternator swf
|
31400-50G10-REM |
— | ||
|
5
|
5
31614-82010-000 COVER,GENERATOR |
31614-82010-000 |
US $22.80 |
||
|
6
|
6
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
7
|
7
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
7
|
7
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
8
|
8
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
17911-63E00-000
ブラケット,ジェネレータ
|
17911-63E00-000 |
— | ||
| replacement | |||||
|
9
|
9
17911-63E01-000
BRACKET,GENERATOR
|
17911-63E01-000 |
— | ||
|
10
|
10
17921-64B00-000
ARM,GENERATOR ADJUST
|
17921-64B00-000 |
— | ||
|
11
|
11
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
12
|
12
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
13
|
13
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
14
|
14
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
33100-71C30-000
DISTRIBUTOR ASSY
95 MODEL |
33100-71C30-000 |
— | ||
|
15
|
15
33100-60G10-000 DISTRIBUTOR ASSY96 MODEL,97 MODEL |
33100-60G10-000 |
US $760.32 |
||
|
16
|
16
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
17
|
17
33370-54A50-000 IGNITER ASSY,ESA |
33370-54A50-000 |
US $422.40 |
||
|
18
|
18
33410-50G10-000
Coil assy, ignition
|
33410-50G10-000 |
— | ||
|
19
|
19
33415-50G00-000
Bracket, igniter
|
33415-50G00-000 |
— | ||
|
20
|
20
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
20
|
20
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
21
|
21
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
22
|
22
02112-04123-000
Screw
|
02112-04123-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
23
|
23
33710-63B30-000
コード,ハイテンション,NO.1
95 MODEL |
33710-63B30-000 |
— | ||
| replacement | |||||
|
23
|
23
33710-86001-000 CORD,HIGH TENSION95 MODEL |
33710-86001-000 |
US $19.32 |
||
|
23
|
23
33710-51G10-000 CORD,HT NO.196 MODEL,97 MODEL |
33710-51G10-000 |
US $22.26 |
||
|
24
|
24
33705-51G10-000
コードセット,ハイテンション
|
33705-51G10-000 |
— | ||
| replacement | |||||
|
24
|
24
33700-51G10-000
CORD SET,HIGH TENSION
|
33700-51G10-000 |
— | ||
|
25
|
25
33730-51G10-000
CORD,HIGH TENSION NO.2
|
33730-51G10-000 |
— | ||
|
26
|
26
33740-51G10-000 CORD,HIGH TENSION NO.3 |
33740-51G10-000 |
US $23 |
||
|
27
|
27
33750-80D00-000
CORD,HT NO.4
95 MODEL |
33750-80D00-000 |
— | ||
|
27
|
27
33750-51G10-000
CORD,HIGH TENSION NO.4
96 MODEL,97 MODEL |
33750-51G10-000 |
— | ||
|
28
|
28
33760-51G10-000 CORD,HIGH TENSION NO.5 |
33760-51G10-000 |
US $20.98 |
||
|
29
|
29
33881-60B10-000 CLAMP,NO.1 HT CORD |
33881-60B10-000 |
US $1.82 |
||
|
30
|
30
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
31
|
31
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
32
|
32
11179-60B00-000
CLAMP,HIGH TENSION CORD
|
11179-60B00-000 |
— | ||
|
33
|
33
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
33
|
33
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
34
|
34
33920-51G72-000
Controller,fuel injection
95 MODEL:, Canada |
33920-51G72-000 |
— | ||
|
34
|
34
33920-51G61-000
Controller, fuel injection
95 MODEL:California:AT |
33920-51G61-000 |
— | ||
|
34
|
34
33920-52GD1-000
Controller, fuel injection
96 MODEL::AT |
33920-52GD1-000 |
— | ||
|
34
|
34
33920-52GK1-000
Controller, fuel injection
96 MODEL:Canada:AT |
33920-52GK1-000 |
— | ||
|
34
|
34
33920-52GB1-000
Controller, fuel injection
96 MODEL:California:AT |
33920-52GB1-000 |
— | ||
|
34
|
34
33920-52GS0-000
Controller, fuel injection
97 MODEL::AT |
33920-52GS0-000 |
— | ||
|
34
|
34
33920-50GP0-000
Controller, fuel injection
97 MODEL:Canada:AT |
33920-50GP0-000 |
— | ||
|
34
|
34
33920-51GS0-000
Controller, fuel injection
97 MODEL:California:AT |
33920-51GS0-000 |
— | ||
|
35
|
35
33950-60B11-000
RESISTOR ASSY,INJECTOR
|
33950-60B11-000 |
— | ||
|
36
|
36
02112-35103-000
Screw 5x10
|
02112-35103-000 |
— | ||
| replacement | |||||
|
36
|
36
02112-3510B-000 SCREW |
02112-3510B-000 |
from US $0.76 |
||
|
37
|
37
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
37
|
37
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
38
|
38
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
38
|
38
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
39
|
39
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
39
|
39
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
40
|
40
33220-70E00-000 SENSOR ASSY,POSITION96 MODEL,97 MODEL |
33220-70E00-000 |
from US $69.73 |
||
|
41
|
41
01550-06163-000
Bolt
96 MODEL,97 MODEL |
01550-06163-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0616B-000 BOLT96 MODEL,97 MODEL |
01550-0616B-000 |
from US $0.76 |
||
|
41
|
41
01550-0616A-000 BOLT96 MODEL,97 MODEL |
01550-0616A-000 |
from US $0.76 |
||
