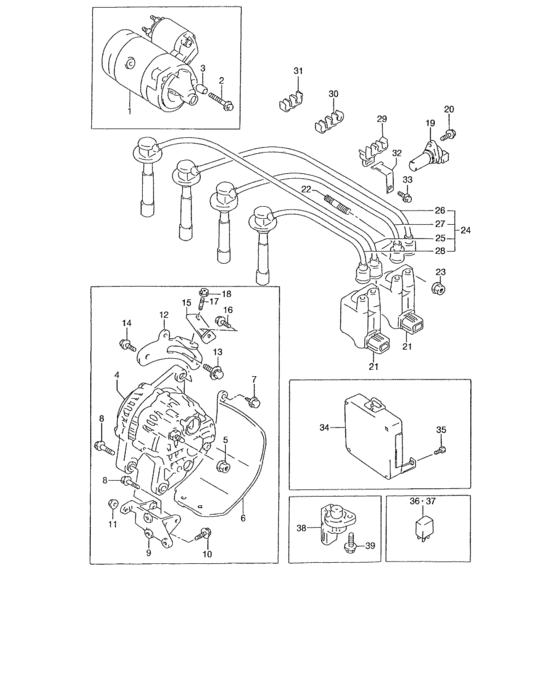

A engine electrical (98 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-860D2-000
Motor assy, starter
AT |
31100-860D2-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-860D2-REM
New Genuine Part
AT |
31100-860D2-REM |
— | ||
|
2
|
2
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
2
|
2
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
4
|
4
31400-50G10-000
Generator assy
|
31400-50G10-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-50G10-REM
Alternator swf
|
31400-50G10-REM |
— | ||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
31614-82010-000 COVER,GENERATOR |
31614-82010-000 |
US $22.80 |
||
|
7
|
7
09117-06033-000 BOLT(6X12) |
09117-06033-000 |
US $1.06 |
||
|
8
|
8
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
17911-63E00-000
ブラケット,ジェネレータ
|
17911-63E00-000 |
— | ||
| replacement | |||||
|
9
|
9
17911-63E01-000
BRACKET,GENERATOR
|
17911-63E01-000 |
— | ||
|
10
|
10
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
10
|
10
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
17921-64B00-000
ARM,GENERATOR ADJUST
|
17921-64B00-000 |
— | ||
|
13
|
13
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
14
|
14
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
11581-52G00-000
Reinf, generator adjusting arm
|
11581-52G00-000 |
— | ||
|
16
|
16
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
16
|
16
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
17
|
17
01411-08163-000
スタッドボルト
|
01411-08163-000 |
— | ||
| replacement | |||||
|
17
|
17
01411-0816A-000 BOLT,STUD |
01411-0816A-000 |
US $9.90 |
||
|
18
|
18
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
19
|
19
33220-50G02-000 SENSOR ASSY,CAM POSITION |
33220-50G02-000 |
from US $89.10 |
||
|
20
|
20
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
20
|
20
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
21
|
21
33400-50G00-000
Coil assy, ignition
|
33400-50G00-000 |
— | ||
|
22
|
22
01421-06203-000
Stud bolt (l:20)(green)
|
01421-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
23
|
23
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
24
|
24
33705-51G20-000 CORD SET,HIGH TENSION |
33705-51G20-000 |
US $110.40 |
||
|
25
|
25
33730-51G20-000
CORD,HIGH TENSION NO.2
|
33730-51G20-000 |
— | ||
|
26
|
26
33740-51G20-000
CORD,HIGH TENSION NO.3
|
33740-51G20-000 |
— | ||
|
27
|
27
33750-51G20-000
CORD,HIGH TENSION NO.4
|
33750-51G20-000 |
— | ||
|
28
|
28
33760-51G20-000
CORD,HIGH TENSION NO.5
|
33760-51G20-000 |
— | ||
|
29
|
29
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
30
|
30
33881-52G00-000
Clamp, high tension cord no.4
|
33881-52G00-000 |
— | ||
|
31
|
31
33881-52G10-000
Clamp, high tension cord no.3
|
33881-52G10-000 |
— | ||
|
32
|
32
33885-71C10-000
CLAMP,HT CORD,NO.5
|
33885-71C10-000 |
— | ||
|
33
|
33
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
33
|
33
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
34
|
34
33920-52G30-000
Controller, fuel injection
, Canada:AT |
33920-52G30-000 |
— | ||
|
34
|
34
33920-52G11-000
Controller, fuel injection
California:AT |
33920-52G11-000 |
— | ||
|
35
|
35
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
35
|
35
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
36
|
36
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
36
|
36
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
37
|
37
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
37
|
37
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
38
|
38
33220-70E00-000 SENSOR ASSY,POSITION |
33220-70E00-000 |
from US $69.73 |
||
|
39
|
39
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
39
|
39
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
