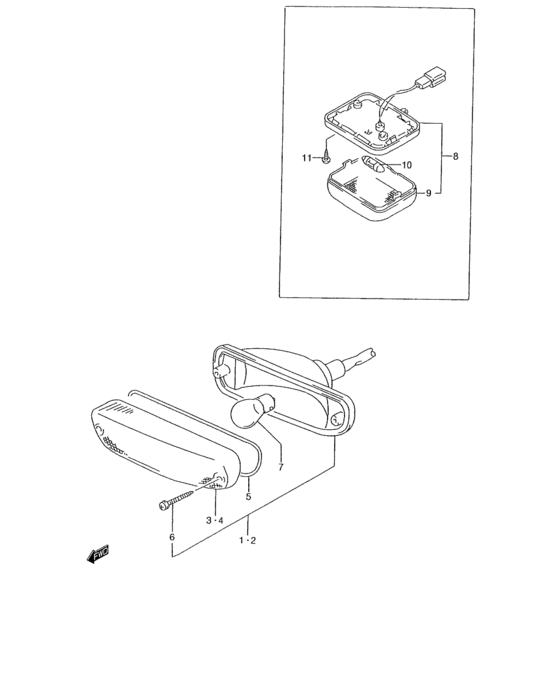

A fr turn signal lamp and room lamp (A FR TURN SIGNAL LAMP AND ROOM LAMP) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-50G00-000
Lamp assy, fr turn signal rh
95 MODEL,96 MODEL,97 MODEL |
35601-50G00-000 |
— | ||
|
2
|
2
35602-50G00-000
Lamp assy, fr turn signal lh
95 MODEL,96 MODEL,97 MODEL |
35602-50G00-000 |
— | ||
|
3
|
3
35612-50G00-000
Lens, turn signal lamp rh
95 MODEL,96 MODEL,97 MODEL |
35612-50G00-000 |
— | ||
|
4
|
4
35632-50G00-000
Lens, turn signal lamp lh
95 MODEL,96 MODEL,97 MODEL |
35632-50G00-000 |
— | ||
|
5
|
5
35613-50G00-000
Gasket, lens
95 MODEL,96 MODEL,97 MODEL |
35613-50G00-000 |
— | ||
|
6
|
6
35623-50G00-000
Screw, lens
95 MODEL,96 MODEL,97 MODEL |
35623-50G00-000 |
— | ||
|
7
|
7
09471-12065-000
BULB(12V27W)
95 MODEL,96 MODEL,97 MODEL |
09471-12065-000 |
— | ||
|
8
|
8
36210-50G01-000
Lamp assy, room
|
36210-50G01-000 |
— | ||
|
9
|
9
36212-50G00-000
Lens, room lamp
|
36212-50G00-000 |
— | ||
|
10
|
10
09471-12187-000 BULB(12V8W,TOKAI DENSO) |
09471-12187-000 |
from US $2.50 |
||
|
11
|
11
03211-04163-000
Screw
|
03211-04163-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0416A-000 SCREW |
03211-0416A-000 |
from US $0.76 |
||
