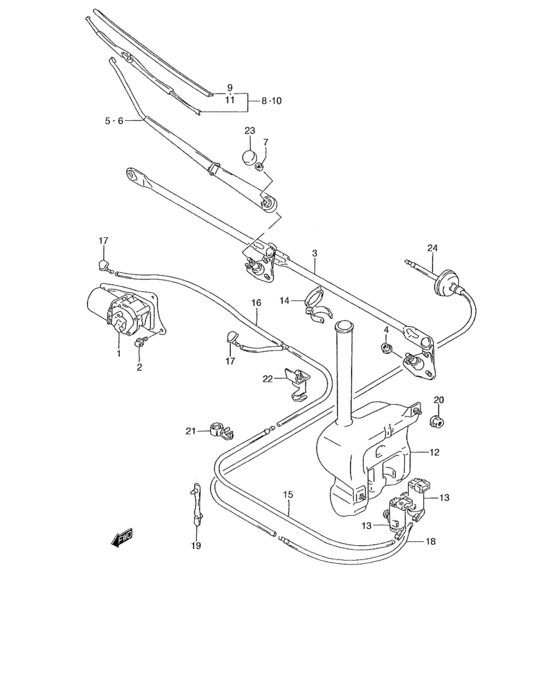

A fr windshield wiper (A FR WINDSHIELD WIPER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-50G00-000
Motor & bracket assy, wiper
|
38101-50G00-000 |
— | ||
|
2
|
2
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
2
|
2
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
3
|
3
38102-50G00-000
Link assy, wiper
|
38102-50G00-000 |
— | ||
|
4
|
4
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
38310-50G00-000
Arm assy, wiper driver
|
38310-50G00-000 |
— | ||
|
6
|
6
38330-50G00-000
Arm assy, wiper assistant
|
38330-50G00-000 |
— | ||
|
7
|
7
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
38340-50G00-000
Blade assy, wiper-lh
|
38340-50G00-000 |
— | ||
|
9
|
9
38346-50G00-000
Blade-lh
|
38346-50G00-000 |
— | ||
| replacement | |||||
|
9
|
9
38346-60B00-000 BLADE,RUBBER |
38346-60B00-000 |
US $12.48 |
||
|
10
|
10
38340-50G10-000
Blade assy, wiper-rh
|
38340-50G10-000 |
— | ||
|
11
|
11
38346-50G10-000
Blade-rh
|
38346-50G10-000 |
— | ||
|
12
|
12
38450-50G00-000
Tank assy, washer
, 3 |
38450-50G00-000 |
— | ||
|
12
|
12
38450-50G10-000
Tank assy, washer
Canada |
38450-50G10-000 |
— | ||
|
13
|
13
38410-50G00-000
Pump assy, washer
, 3 |
38410-50G00-000 |
— | ||
|
14
|
14
38452-50G00-000
Cap, washer tank
|
38452-50G00-000 |
— | ||
|
15
|
15
38490-50G00-000
Hose, washer
|
38490-50G00-000 |
— | ||
|
16
|
16
38490-50G20-000
Hose assy, washer
|
38490-50G20-000 |
— | ||
|
17
|
17
38480-50G10-000
Nozzle, washer
95 MODEL,96 MODEL,97 MODEL |
38480-50G10-000 |
— | ||
| replacement | |||||
|
17
|
17
38480-60E00-000 NOZZLE,WASHER95 MODEL,96 MODEL,97 MODEL |
38480-60E00-000 |
US $11.56 |
||
|
17
|
17
38480-50G20-000
Nozzle, washer
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
38480-50G20-000 |
— | ||
|
18
|
18
38490-50G10-000
Hose, rear washer
Canada |
38490-50G10-000 |
— | ||
|
19
|
19
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
20
|
20
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
21
|
21
34935-60D00-000
CLAMP,HARN NO.1 STRUT
|
34935-60D00-000 |
— | ||
|
22
|
22
34935-60E00-000 CLAMP,WASHER HOSE |
34935-60E00-000 |
US $1.60 |
||
|
23
|
23
38344-50G00-000
Cap, wiper pivot
|
38344-50G00-000 |
— | ||
|
24
|
24
38834-50G10-000
HOSE ASSY,RR WASHER FR
Canada |
38834-50G10-000 |
— | ||
