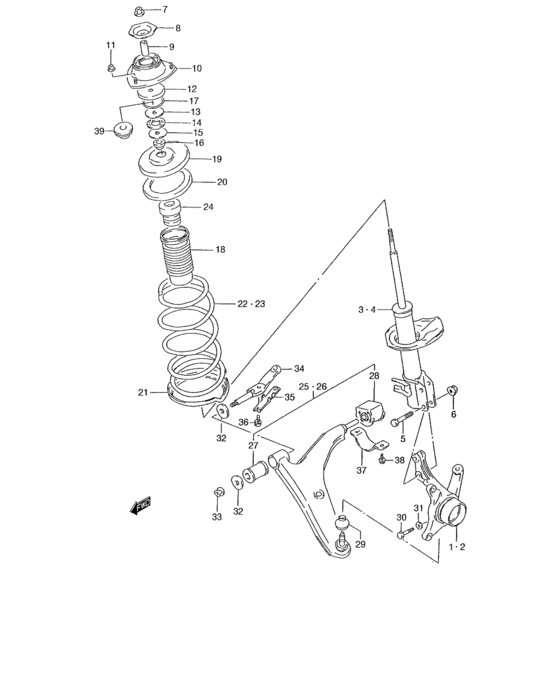

A front suspension (A FRONT SUSPENSION) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-50G00-000
Knuckle, steering rh
N/ABS |
45111-50G00-000 |
— | ||
|
1
|
1
45111-50G10-000
Knuckle, steering rh
W/ABS |
45111-50G10-000 |
— | ||
|
2
|
2
45151-50G00-000
Knuckle, steering lh
N/ABS |
45151-50G00-000 |
— | ||
|
2
|
2
45151-50G10-000
Knuckle, steering lh
W/ABS |
45151-50G10-000 |
— | ||
|
3
|
3
41601-50G11-000
Strut assy, fr suspension rh
N/ABS |
41601-50G11-000 |
— | ||
|
3
|
3
41601-50G51-000
Strut assy, fr suspension rh
W/ABS |
41601-50G51-000 |
— | ||
|
4
|
4
41602-50G11-000
Strut assy, fr suspension lh
N/ABS |
41602-50G11-000 |
— | ||
|
4
|
4
41602-50G51-000
Strut assy, fr suspension lh
W/ABS |
41602-50G51-000 |
— | ||
|
5
|
5
09103-12501-000 BOLT(12X55) |
09103-12501-000 |
from US $2.40 |
||
|
6
|
6
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
09159-12045-000 NUT |
09159-12045-000 |
US $16.20 |
||
| replacement | |||||
|
7
|
7
09159-12049-000 NUT |
09159-12049-000 |
US $38.60 |
||
|
8
|
8
41751-60B00-000 STOPPER,FRONT STRUT |
41751-60B00-000 |
US $10.52 |
||
|
9
|
9
41721-60B00-000 SPACER,FRONT STRUT INNER |
41721-60B00-000 |
US $6.81 |
||
|
10
|
10
41710-50G00-000
Support, front strut
|
41710-50G00-000 |
— | ||
|
11
|
11
09159-08104-000 NUT |
09159-08104-000 |
from US $9.03 |
||
|
12
|
12
41731-60B00-000 SEAT,FRONT STRUT BEARING |
41731-60B00-000 |
US $9.60 |
||
|
13
|
13
41742-60B00-000 WASHER,BEARING UPR95 MODEL,96 MODEL,97 MODEL,98 MODEL |
41742-60B00-000 |
from US $1.73 |
||
|
14
|
14
41741-60B00-000 BEARING,FR STRUT95 MODEL,96 MODEL,97 MODEL,98 MODEL |
41741-60B00-000 |
from US $15.14 |
||
|
15
|
15
41743-60B00-000 WASHER,BEARING LWR95 MODEL,96 MODEL,97 MODEL,98 MODEL |
41743-60B00-000 |
from US $2.88 |
||
|
16
|
16
41744-60B00-000 SPACER,FRONT STRUT BEARING95 MODEL,96 MODEL,97 MODEL,98 MODEL |
41744-60B00-000 |
US $9.60 |
||
|
17
|
17
41745-60B00-000 SEAL,FRONT STRUT BEARING95 MODEL,96 MODEL,97 MODEL,98 MODEL |
41745-60B00-000 |
US $2.88 |
||
|
18
|
18
41761-50G00-000
Cover, front strut
|
41761-50G00-000 |
— | ||
|
19
|
19
41230-60B00-000 SEAT,COIL SPRING UPPER |
41230-60B00-000 |
US $29.62 |
||
|
20
|
20
41211-50G00-000
Seat, front coil spring
|
41211-50G00-000 |
— | ||
|
21
|
21
41212-50G00-000
Seat, front coil spring lower
|
41212-50G00-000 |
— | ||
|
22
|
22
41111-51G10-000
Spring, front coil rh
|
41111-51G10-000 |
— | ||
|
23
|
23
41111-51G60-000
Spring, front coil lh
|
41111-51G60-000 |
— | ||
|
24
|
24
42111-50G00-000
Stopper, front bump
|
42111-50G00-000 |
— | ||
|
25
|
25
45201-50G10-000
Arm assy, front suspension rh
|
45201-50G10-000 |
— | ||
|
26
|
26
45202-50G10-000
Arm assy, front suspension lh
|
45202-50G10-000 |
— | ||
|
27
|
27
45530-50G10-000
Bushing, front
|
45530-50G10-000 |
— | ||
|
28
|
28
45540-50G00-000
Bushing, rear
|
45540-50G00-000 |
— | ||
|
29
|
29
45723-60B00-000
SEAL SET,BALL JOINT
|
45723-60B00-000 |
— | ||
| replacements | |||||
|
29
|
29
45723-60B01-000
Seal Set,ball Joint
|
45723-60B01-000 |
— | ||
|
29
|
29
45700-60820-000 Seal Set,ball Joint |
45700-60820-000 |
US $39.20 |
||
|
30
|
30
09100-10184-000 BOLT(10X40) |
09100-10184-000 |
from US $1.92 |
||
|
31
|
31
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
31
|
31
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
31
|
31
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
32
|
32
09160-16042-000 WASHER(16.5X42X3.2) |
09160-16042-000 |
US $17.70 |
||
|
33
|
33
09159-16019-000 NUT |
09159-16019-000 |
US $36.40 |
||
|
34
|
34
45511-50G00-000
BRACKET,SPNSN ARM
|
45511-50G00-000 |
— | ||
|
35
|
35
45515-50G00-000
PLATE,FRONT SPNSN LOCK
|
45515-50G00-000 |
— | ||
|
36
|
36
09135-14005-000
Bolt, front bracket
|
09135-14005-000 |
— | ||
|
37
|
37
45551-60B01-000 BRACKET,SPNSN ARM,RR |
45551-60B01-000 |
US $10.34 |
||
|
38
|
38
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
38
|
38
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
39
|
39
41742-50G00-000
Bearing, front strut
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
41742-50G00-000 |
— | ||
