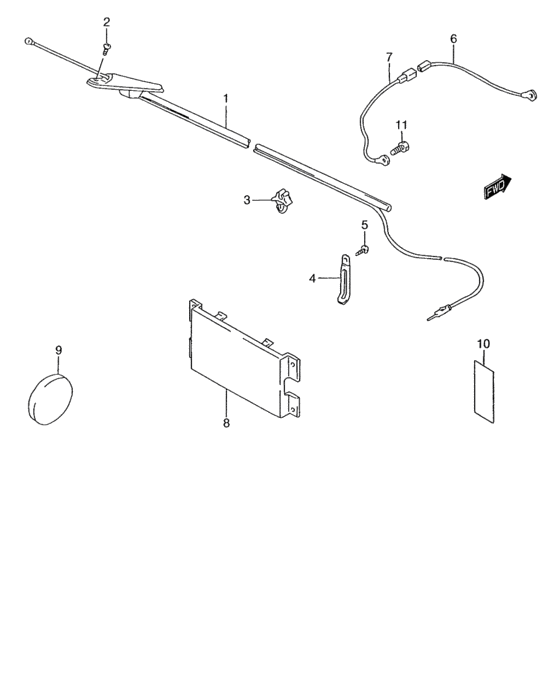

A radio antenna (A RADIO ANTENNA) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39250-50G01-000
Antenna assy, radio
95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL |
39250-50G01-000 |
— | ||
|
1
|
1
39250-50G10-000
Antenna assy, radio
00 MODEL,01 MODEL |
39250-50G10-000 |
— | ||
|
2
|
2
39251-50G00-000
スクリュ,アンテナ
|
39251-50G00-000 |
— | ||
| replacement | |||||
|
2
|
2
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $15.10 |
||
|
3
|
3
15911-63B00-000
Clamp, cable
|
15911-63B00-000 |
— | ||
| replacement | |||||
|
3
|
3
75411-76G00-000 CLAMP,CABLE |
75411-76G00-000 |
US $2.39 |
||
|
4
|
4
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
4
|
4
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
5
|
5
03541-05163-000
Screw
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
03541-05163-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0516A-000 SCREW98 MODEL,99 MODEL,00 MODEL,01 MODEL |
03541-0516A-000 |
from US $0.68 |
||
|
5
|
5
02142-05103-000
Screw 5x10
95 MODEL,96 MODEL |
02142-05103-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0510B-000 SCREWBolt 95 MODEL,96 MODEL |
02142-0510B-000 |
from US $0.76 |
||
|
6
|
6
39312-60B20-000 WIRE,NOISE SUPPR NO.1 |
39312-60B20-000 |
US $2.72 |
||
|
7
|
7
39312-60BB1-000
Wire, noise suppressor
95 MODEL,96 MODEL,97 MODEL |
39312-60BB1-000 |
— | ||
|
8
|
8
39161-50G00-000
Cover, radio hole
|
39161-50G00-000 |
— | ||
|
9
|
9
36930-50G00-000
Insulator, front speaker
95 MODEL |
36930-50G00-000 |
— | ||
|
10
|
10
36930-82010-000 COVER,HARNESSCover, roof wire 98 MODEL,99 MODEL,00 MODEL,01 MODEL |
36930-82010-000 |
from US $1.73 |
||
|
11
|
11
09115-06001-000
Bolt, lh
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09115-06001-000 |
— | ||
| replacement | |||||
|
11
|
11
09115-06005-000 BOLT(6X16)98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09115-06005-000 |
US $1.28 |
||
|
12
|
12
39101-67D10-000
Radio assy.
00, 01 GL MODEL ONLY,NOT ILLUSTRATED. |
39101-67D10-000 |
— | ||
