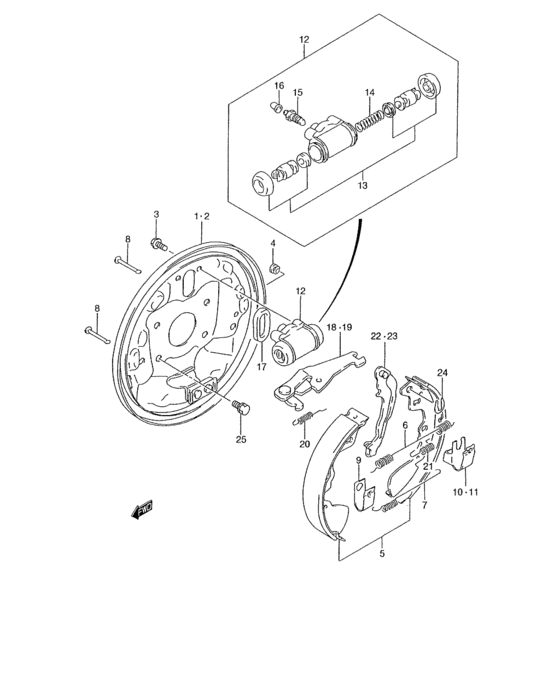

A rear brake (95, 96 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-50G00-000
PLATE,BACK,R
|
53110-50G00-000 |
— | ||
|
2
|
2
53120-50G00-000
PLATE,BACK,L
|
53120-50G00-000 |
— | ||
|
3
|
3
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
3
|
3
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
4
|
4
53141-84010-000 PLUG,BACKING PLATE |
53141-84010-000 |
from US $1.52 |
||
|
5
|
5
53200-60821-000
シューセット,ブレーキ
|
53200-60821-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-60B12-000 SHOE SET,BRAKE |
53200-60B12-000 |
US $57.04 |
||
|
6
|
6
53231-82030-000 SPRING,SHOE RETURN |
53231-82030-000 |
US $2.72 |
||
|
7
|
7
54532-19B01-000 SPRING,SHOE RETURN LWRSpring, shoe return lower |
54532-19B01-000 |
from US $2.72 |
||
|
8
|
8
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down |
53241-82030-000 |
from US $1.46 |
||
|
9
|
9
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down |
53243-85010-000 |
from US $1.33 |
||
|
10
|
10
53244-82031-000 SPRING,SHOE HOLD DOWN,RSpring, shoe hold down lh |
53244-82031-000 |
from US $2.56 |
||
|
11
|
11
53245-82031-000 SPRING,SHOE HOLD DOWN,LSpring, shoe hold down rh |
53245-82031-000 |
from US $2.56 |
||
|
12
|
12
53401-86041-000
CYLINDER ASSY,RR WHEEL
|
53401-86041-000 |
— | ||
| replacement | |||||
|
12
|
12
53401-86042-000 CYLINDER ASSY,RR WHEEL |
53401-86042-000 |
US $78.02 |
||
|
13
|
13
53400-82830-000 CUP SET,WHEEL CYLINDER |
53400-82830-000 |
US $7.20 |
||
|
14
|
14
53432-82030-000 SPRING,WHEEL CYLINDERSpring, wheel cylinder |
53432-82030-000 |
from US $1.60 |
||
|
15
|
15
55473-82030-000
Plug, bleeder
|
55473-82030-000 |
— | ||
| replacement | |||||
|
15
|
15
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
16
|
16
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
17
|
17
53417-82030-000 GASKET,RR WHEEL CYLINDERGasket, rear wheel cylinder |
53417-82030-000 |
from US $4.71 |
||
|
18
|
18
53710-50G00-000 STRUT ASSY,BRAKE,R |
53710-50G00-000 |
US $22.26 |
||
|
19
|
19
53720-50G00-000
STRUT ASSY,BRAKE,L
|
53720-50G00-000 |
— | ||
|
20
|
20
53714-85010-000 SPRING,QUADRANT |
53714-85010-000 |
from US $1.94 |
||
|
21
|
21
53715-82030-000 スプリング,アンチラトル |
53715-82030-000 |
US $2.13 |
||
| replacement | |||||
|
21
|
21
53715-8203V-000 SPRING,ANTIRATTLE |
53715-8203V-000 |
US $2.24 |
||
|
22
|
22
53750-60B00-000 LEVER,PARKING SHOE,R |
53750-60B00-000 |
US $11.89 |
||
|
23
|
23
53760-60B00-000 LEVER,PARKING SHOE,L |
53760-60B00-000 |
US $11.89 |
||
|
24
|
24
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper |
53753-82030-000 |
from US $0.99 |
||
|
25
|
25
09117-08070-000 BOLT(8X19) |
09117-08070-000 |
US $19.10 |
||
