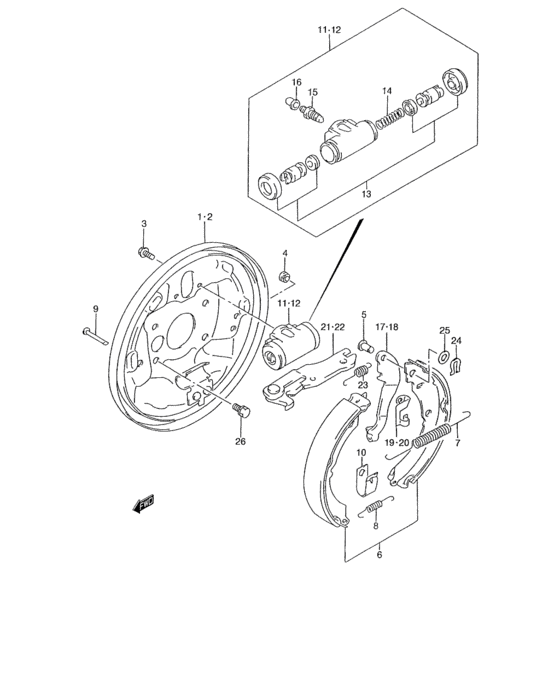

A rear brake (97, 98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-50G10-000
Plate, backing rh
|
53110-50G10-000 |
— | ||
|
2
|
2
53120-50G10-000
Plate, backing lh
|
53120-50G10-000 |
— | ||
|
3
|
3
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
53141-50G10-000
Plug, backing plate
|
53141-50G10-000 |
— | ||
|
5
|
5
53731-50G10-000 PIN,PARKING LEVER |
53731-50G10-000 |
US $3.95 |
||
|
6
|
6
53200-50830-000
Shoe set, brake
|
53200-50830-000 |
— | ||
|
7
|
7
53331-50G10-000
Spring, shoe return
|
53331-50G10-000 |
— | ||
|
8
|
8
53231-50G10-000
Spring, shoe return lower
|
53231-50G10-000 |
— | ||
|
9
|
9
53241-50G10-000 PIN,SHOE HOLD DOWN |
53241-50G10-000 |
from US $1.92 |
||
|
10
|
10
52243-70AA0-000 SPRING,SHOE CLAMP |
52243-70AA0-000 |
US $2.24 |
||
|
11
|
11
53401-50G10-000
Cylinder assy, rear wheel rh
|
53401-50G10-000 |
— | ||
|
12
|
12
53402-50G10-000
Cylinder assy, rear wheel lh
|
53402-50G10-000 |
— | ||
|
13
|
13
53400-70840-000
Cup set, wheel cylinder
|
53400-70840-000 |
— | ||
|
14
|
14
53441-50G10-000
Spring, wheel cylinder
|
53441-50G10-000 |
— | ||
|
15
|
15
53473-50G10-000
Plug, bleeder
|
53473-50G10-000 |
— | ||
|
16
|
16
53474-50G10-000
Cap, bleeder plug
|
53474-50G10-000 |
— | ||
|
17
|
17
53721-50G10-000
Lever, parking brake rh
|
53721-50G10-000 |
— | ||
|
18
|
18
53726-50G10-000
Lever, parking brake lh
|
53726-50G10-000 |
— | ||
|
19
|
19
53741-50G10-000
Stopper, rh
|
53741-50G10-000 |
— | ||
|
20
|
20
53742-50G10-000
Stopper, lh
|
53742-50G10-000 |
— | ||
|
21
|
21
53810-50G10-000
Rod, parking brake rh
|
53810-50G10-000 |
— | ||
|
22
|
22
53860-50G10-000
Rod, parking brake lh
|
53860-50G10-000 |
— | ||
|
23
|
23
53821-50G10-000
Spring, rod
|
53821-50G10-000 |
— | ||
|
24
|
24
53751-50G10-000 CLIP |
53751-50G10-000 |
US $1.91 |
||
|
25
|
25
53732-50G10-000
Washer
|
53732-50G10-000 |
— | ||
|
26
|
26
09117-08070-000 BOLT(8X19) |
09117-08070-000 |
US $19.10 |
||
