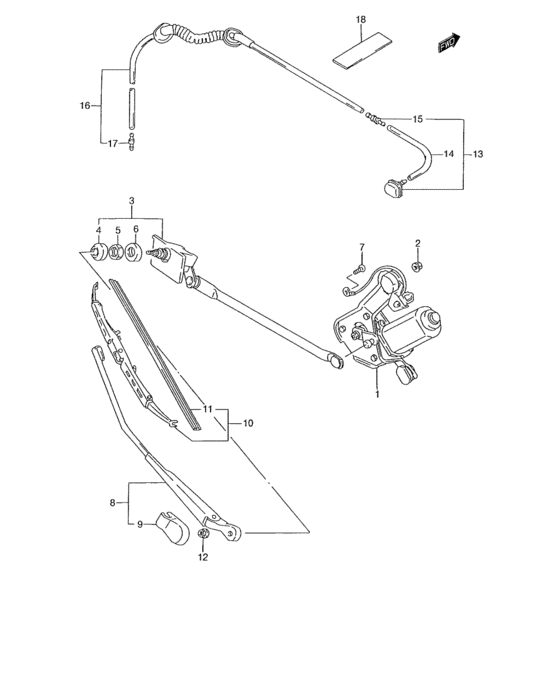

A rr windshield wiper (Canada) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38811-50G00-000
MOTOR&BRACKET ASSY,RR WIPER
|
38811-50G00-000 |
— | ||
|
2
|
2
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
3
|
3
38813-50G00-000
LINK ASSY,RR WIPER
|
38813-50G00-000 |
— | ||
|
4
|
4
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
5
|
5
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
6
|
6
38272-50G00-000
WASHER,RR WIPER PIVOT
|
38272-50G00-000 |
— | ||
|
7
|
7
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
8
|
8
38821-50G00-000
ARM ASSY,RR WIPER
|
38821-50G00-000 |
— | ||
|
9
|
9
38315-78400-000 COVER,ARM HEAD |
38315-78400-000 |
US $5.62 |
||
|
10
|
10
38340-50G21-000 BLADE ASSY,WIPER |
38340-50G21-000 |
US $21.60 |
||
|
11
|
11
38346-50G20-000 RUBBER,BLADE |
38346-50G20-000 |
US $7.14 |
||
|
12
|
12
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
38840-50G00-000
NOZZLE ASSY,RR WASHER
|
38840-50G00-000 |
— | ||
|
14
|
14
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
15
|
15
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
from US $1.71 |
||
|
16
|
16
38834-50G00-000
HOSE ASSY,RR WASHER
|
38834-50G00-000 |
— | ||
|
17
|
17
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
18
|
18
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
