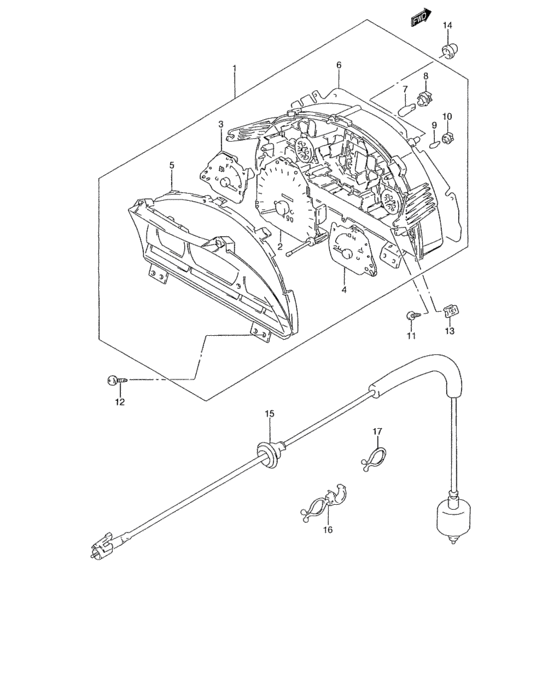

A speedometer (96, 97, 98, 99, 00, 01 MODEL:N/TACHOMETER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-50GC0-000
Speedometer assy
, 3, N/ABS |
34100-50GC0-000 |
— | ||
|
1
|
1
34100-50G80-000
Speedometer assy
, W/ABS |
34100-50G80-000 |
— | ||
|
1
|
1
34100-50GD0-000
Speedometer assy
Canada, N/ABS |
34100-50GD0-000 |
— | ||
|
1
|
1
34100-50G90-000
Speedometer assy
Canada, W/ABS |
34100-50G90-000 |
— | ||
|
2
|
2
34120-50G00-000
Body assy, speedometer
, 3 |
34120-50G00-000 |
— | ||
|
2
|
2
34120-50G10-000
Body assy, speedometer
Canada |
34120-50G10-000 |
— | ||
|
3
|
3
34320-50G10-000
Body assy, fuel meter
|
34320-50G10-000 |
— | ||
|
4
|
4
34420-62EF0-000
Body, temp meter
|
34420-62EF0-000 |
— | ||
|
5
|
5
34111-62EA0-000
Visor, meter
|
34111-62EA0-000 |
— | ||
|
6
|
6
34152-50G00-000
Plate, printed circuit
|
34152-50G00-000 |
— | ||
|
7
|
7
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
8
|
8
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
9
|
9
09471-12055-000 BULB(14V1.4W,T5), 3, N/ABS |
09471-12055-000 |
from US $2.40 |
||
|
10
|
10
34175-78900-000 SOCKET, 3, N/ABS |
34175-78900-000 |
US $1.52 |
||
|
11
|
11
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
12
|
12
03541-05253-000
Screw, headlamp cover
|
03541-05253-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0525B-000 SCREW |
03541-0525B-000 |
from US $3.67 |
||
|
13
|
13
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
14
|
14
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
15
|
15
34910-51G00-000
CABLE ASSY,SPEEDOMETER
|
34910-51G00-000 |
— | ||
|
16
|
16
34980-60B00-000 CLAMP,SPEEDOMETER CABLEClamp, fuel hose 96 MODEL |
34980-60B00-000 |
US $2.08 |
||
|
17
|
17
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose 97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
09408-00008-000 |
from US $3.37 |
||
