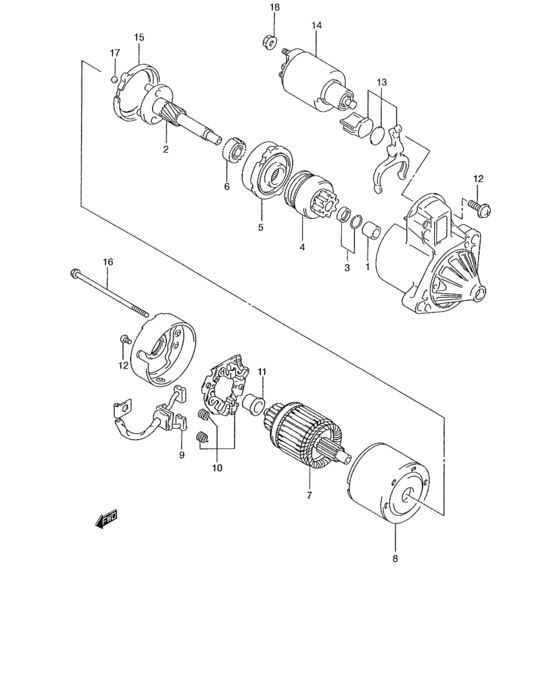

A starting motor (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31100-860D2-000
Motor assy, starter
|
31100-860D2-000 |
— | ||
| replacement | |||||
|
|
31100-860D2-REM
New Genuine Part
|
31100-860D2-REM |
— | ||
|
1
|
1
31152-79030-000 BEARING,FRONT |
31152-79030-000 |
from US $4.68 |
||
|
2
|
2
31341-60A10-000
SHAFT,GEAR
|
31341-60A10-000 |
— | ||
|
3
|
3
31313-86030-000
STOPPER SET
|
31313-86030-000 |
— | ||
| replacement | |||||
|
3
|
3
31314-86030-000 Stopper Set |
31314-86030-000 |
from US $10.53 |
||
|
4
|
4
31320-86030-000 CLUTCH,OVER RUNNING |
31320-86030-000 |
US $111.50 |
||
|
5
|
5
31343-50F40-000
GEAR,INTERNAL
|
31343-50F40-000 |
— | ||
|
6
|
6
31344-86030-000 GEAR,PLNTY |
31344-86030-000 |
US $27.60 |
||
|
7
|
7
31311-86032-000
Armature
|
31311-86032-000 |
— | ||
|
8
|
8
31110-86031-000
YOKE ASSY
|
31110-86031-000 |
— | ||
|
9
|
9
31131-86030-000 BRUSH ASSY |
31131-86030-000 |
US $10.41 |
||
|
10
|
10
31173-60A20-000 HOLDER ASSY,BRUSH |
31173-60A20-000 |
US $61.09 |
||
|
11
|
11
31172-64B60-000 BEARING,REAR |
31172-64B60-000 |
US $10.56 |
||
|
12
|
12
31136-79030-000
SCREW ASSY
|
31136-79030-000 |
— | ||
| replacement | |||||
|
12
|
12
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
|
13
|
13
31191-86030-000
LEVER ASSY
|
31191-86030-000 |
— | ||
|
14
|
14
31220-86030-000 SWITCH ASSY |
31220-86030-000 |
US $144.62 |
||
|
15
|
15
31345-86030-000
Packing
|
31345-86030-000 |
— | ||
| replacement | |||||
|
15
|
15
31345-60A00-000 PACKING |
31345-60A00-000 |
US $5.37 |
||
|
16
|
16
31261-86030-000
Bolt
|
31261-86030-000 |
— | ||
|
17
|
17
31193-86030-000 BALL |
31193-86030-000 |
US $2.80 |
||
|
18
|
18
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
