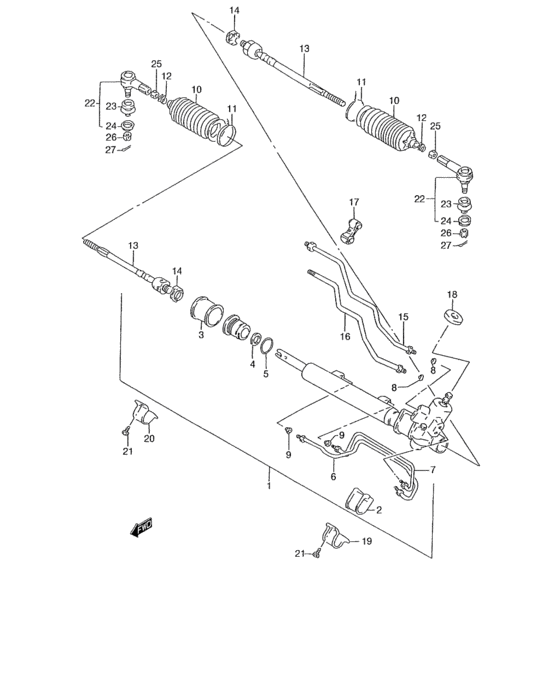

A steering unit (W/PS:~2S2AB21H V6603871) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-50G00-000
Steering gear comp,l
|
48580-50G00-000 |
— | ||
|
2
|
2
48525-50G00-000
MOUNT,STRG PINION SIDE
|
48525-50G00-000 |
— | ||
|
3
|
3
48526-86000-000 MOUNT,STRG RACK SIDE |
48526-86000-000 |
US $35.33 |
||
|
4
|
4
48585-60B10-000 U PACKING |
48585-60B10-000 |
US $12.77 |
||
|
5
|
5
48586-86000-000 O-RING |
48586-86000-000 |
US $8.54 |
||
|
6
|
6
48581-50G00-000
Pipe assy, a
|
48581-50G00-000 |
— | ||
|
7
|
7
48582-50G00-000
Pipe assy, b
|
48582-50G00-000 |
— | ||
|
8
|
8
48584-60E10-000
FERRULE,M16
|
48584-60E10-000 |
— | ||
|
9
|
9
48584-86000-000 FERRULE |
48584-86000-000 |
US $6.77 |
||
|
10
|
10
48571-60B10-000 BOOT,STEERING |
48571-60B10-000 |
US $53.73 |
||
|
11
|
11
48593-85060-000 WIRE,STEERING RACK BOOT |
48593-85060-000 |
US $1.98 |
||
|
12
|
12
09401-16403-000 CLIPClip, 2nd air hose no.2 |
09401-16403-000 |
from US $3.86 |
||
|
13
|
13
48830-50G10-000 TIE-ROD,STEERING |
48830-50G10-000 |
US $138.40 |
||
|
14
|
14
48841-86000-000 WASHER,STEERING TIE ROD LOCK |
48841-86000-000 |
US $14.24 |
||
|
15
|
15
48515-50G00-000
Pipe assy, pressure
|
48515-50G00-000 |
— | ||
|
16
|
16
48516-50G00-000
Pipe asm,return
|
48516-50G00-000 |
— | ||
|
17
|
17
49240-50G00-000
CLAMP SET,PIPE
|
49240-50G00-000 |
— | ||
|
18
|
18
48451-52G01-000
Packing, steering gear hsg
|
48451-52G01-000 |
— | ||
|
19
|
19
48521-60B00-000 BRACKET,STEERING PINION SIDE |
48521-60B00-000 |
US $6.81 |
||
|
20
|
20
48522-82000-000 BRACKET,STEERING RACK SIDE |
48522-82000-000 |
US $17.60 |
||
|
21
|
21
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
21
|
21
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
21
|
21
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
22
|
22
48810-76G00-000 END,STEERING TIE-ROD |
48810-76G00-000 |
from US $46.94 |
||
|
23
|
23
48819-60B00-000
BOOT SET
|
48819-60B00-000 |
— | ||
| replacements | |||||
|
23
|
23
48819-60B01-000
Boot Set
|
48819-60B01-000 |
— | ||
|
23
|
23
48800-60810-000 Boot Set |
48800-60810-000 |
US $19.20 |
||
|
24
|
24
09401-23402-000 CLIP |
09401-23402-000 |
US $1.76 |
||
|
25
|
25
09140-12030-000 NUTNut, tie rod (rh thread) |
09140-12030-000 |
from US $1.31 |
||
|
26
|
26
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
26
|
26
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
27
|
27
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
27
|
27
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
