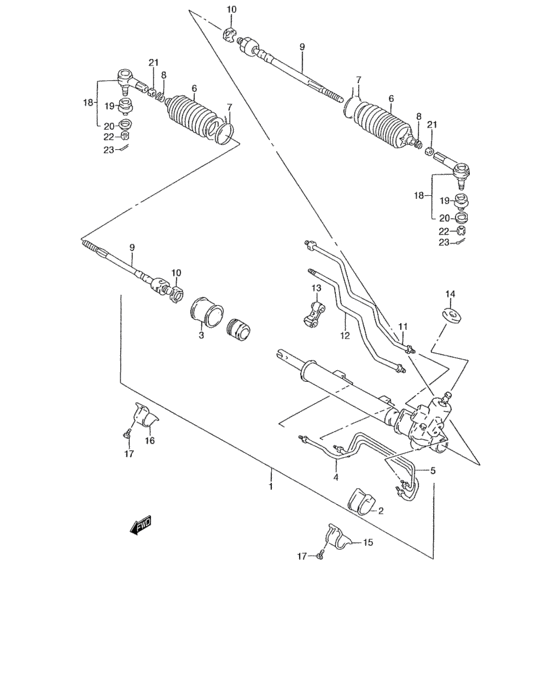

A steering unit (W/PS:2S2AB21H V6603872~) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-50G10-000
Gear assy, steering
|
48580-50G10-000 |
— | ||
|
2
|
2
48525-50G10-000
Mount, steering pinion side
|
48525-50G10-000 |
— | ||
|
3
|
3
48526-50G10-000
Mount, steering rack side
|
48526-50G10-000 |
— | ||
|
4
|
4
48581-50G10-000
Pipe assy, a
|
48581-50G10-000 |
— | ||
|
5
|
5
48582-50G10-000
Pipe assy, b
|
48582-50G10-000 |
— | ||
|
6
|
6
48571-50G10-000
Boot, steering
|
48571-50G10-000 |
— | ||
|
7
|
7
48593-50G10-000
Wire, steering rack boot
|
48593-50G10-000 |
— | ||
|
8
|
8
48573-50G10-000
Clip, rack boot
|
48573-50G10-000 |
— | ||
|
9
|
9
48830-50GA0-000
Tie rod, steering
|
48830-50GA0-000 |
— | ||
|
10
|
10
48841-50G10-000
Washer, steering tie rod lock
|
48841-50G10-000 |
— | ||
|
11
|
11
48515-50GA0-000
Pipe assy, pressure
|
48515-50GA0-000 |
— | ||
|
12
|
12
48516-50GA0-000
Pipe assy, return
|
48516-50GA0-000 |
— | ||
|
13
|
13
49240-50G00-000
CLAMP SET,PIPE
|
49240-50G00-000 |
— | ||
|
14
|
14
48451-50G10-000
Packing, steering gear hsg
|
48451-50G10-000 |
— | ||
|
15
|
15
48521-60B00-000 BRACKET,STEERING PINION SIDE |
48521-60B00-000 |
US $6.81 |
||
|
16
|
16
48522-82000-000 BRACKET,STEERING RACK SIDE |
48522-82000-000 |
US $17.60 |
||
|
17
|
17
01570-08253-000
Bolt, upper
97 MODEL,98 MODEL,99 MODEL |
01570-08253-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0825B-000 BOLT97 MODEL,98 MODEL,99 MODEL |
01570-0825B-000 |
US $1.12 |
||
|
17
|
17
01570-0825A-000 BOLT97 MODEL,98 MODEL,99 MODEL |
01570-0825A-000 |
from US $1.06 |
||
|
17
|
17
09112-08002-000 BOLT(8X25)00 MODEL,01 MODEL |
09112-08002-000 |
from US $1.22 |
||
|
18
|
18
48810-50G10-000
End, steering tie rod
|
48810-50G10-000 |
— | ||
|
19
|
19
48819-60B00-000
BOOT SET
|
48819-60B00-000 |
— | ||
| replacements | |||||
|
19
|
19
48819-60B01-000
Boot Set
|
48819-60B01-000 |
— | ||
|
19
|
19
48800-60810-000 Boot Set |
48800-60810-000 |
US $19.20 |
||
|
20
|
20
09401-23402-000 CLIP |
09401-23402-000 |
US $1.76 |
||
|
21
|
21
48845-50G10-000
Nut, tie rod end lock
|
48845-50G10-000 |
— | ||
|
22
|
22
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
22
|
22
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
23
|
23
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
23
|
23
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
