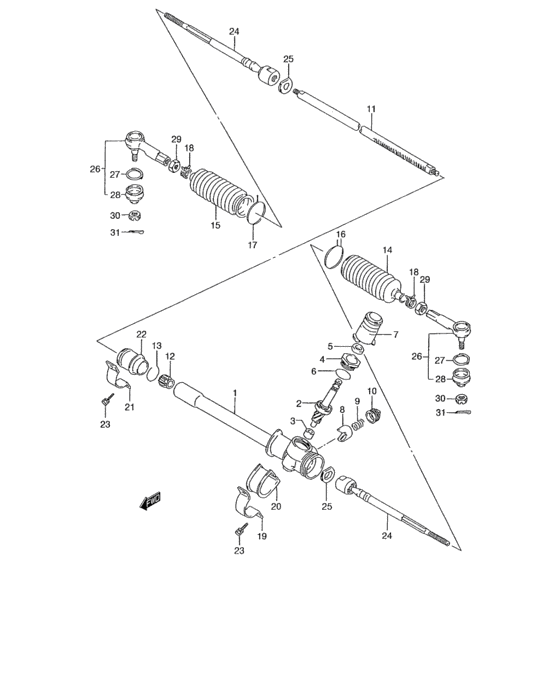

A steering unit (N/PS:95, 96, 97 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48510-50G60-000
Case, steering gear
|
48510-50G60-000 |
— | ||
|
2
|
2
48550-50G60-000
PINION,STEERING,L
|
48550-50G60-000 |
— | ||
|
3
|
3
09263-10014-000 BEARING(10X14X10)Bearing, cl rlse low |
09263-10014-000 |
from US $8.66 |
||
|
4
|
4
48562-82000-000
Plug, pinion bearing
|
48562-82000-000 |
— | ||
| replacement | |||||
|
4
|
4
48562-82K00-000 PLUG,PINION BEARING |
48562-82K00-000 |
US $11.20 |
||
|
5
|
5
09283-17024-000 SEAL,OIL(17X25X5) |
09283-17024-000 |
US $3.28 |
||
|
6
|
6
09280-34003-000 O RING(D:2,ID:34.1) |
09280-34003-000 |
US $1.76 |
||
|
7
|
7
48451-74F00-000 PACKING,STEERING GEAR CASE |
48451-74F00-000 |
US $8.54 |
||
|
8
|
8
48534-50E00-000
プランジャ,ステアリングラック
|
48534-50E00-000 |
— | ||
| replacement | |||||
|
8
|
8
48534-60J00-000 PLUNGER,STEERING RACK |
48534-60J00-000 |
from US $15.93 |
||
|
9
|
9
09440-19011-000 SPRING |
09440-19011-000 |
from US $1.37 |
||
|
10
|
10
48535-82000-000 SCREW,RACK DAMPER |
48535-82000-000 |
US $12.32 |
||
|
11
|
11
48531-50G60-000
RACK,STEERING
|
48531-50G60-000 |
— | ||
|
12
|
12
48541-53B02-000
Bushing, steering rack
|
48541-53B02-000 |
— | ||
| replacement | |||||
|
12
|
12
48541-82H10-000 BUSHING,STEERING RACK |
48541-82H10-000 |
from US $16 |
||
|
13
|
13
09381-33002-000 RING, SNAP |
09381-33002-000 |
from US $1.82 |
||
|
14
|
14
48571-82000-000 BOOT,STEERING PINION SIDE |
48571-82000-000 |
US $28.80 |
||
|
15
|
15
48572-60B10-000 BOOT,STEERING RACK SIDE |
48572-60B10-000 |
US $28.80 |
||
|
16
|
16
09460-01023-000 WIRE |
09460-01023-000 |
US $2.24 |
||
|
17
|
17
09460-01023-000 WIRE |
09460-01023-000 |
US $2.24 |
||
|
18
|
18
09401-15407-000 CLIPBolt, 2nd air hose |
09401-15407-000 |
from US $1.17 |
||
|
19
|
19
48521-60B00-000 BRACKET,STEERING PINION SIDE |
48521-60B00-000 |
US $6.81 |
||
|
20
|
20
48525-50G00-000
MOUNT,STRG PINION SIDE
|
48525-50G00-000 |
— | ||
|
21
|
21
48522-82000-000 BRACKET,STEERING RACK SIDE |
48522-82000-000 |
US $17.60 |
||
|
22
|
22
48526-82000-000 MOUNT,STRG RACK SIDE |
48526-82000-000 |
US $13.44 |
||
|
23
|
23
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
23
|
23
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
23
|
23
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
24
|
24
48830-60B00-000 TIE-ROD,STEERING |
48830-60B00-000 |
US $80.22 |
||
|
25
|
25
48841-82001-000 WASHER,STEERING TIE ROD LOCK |
48841-82001-000 |
US $1.92 |
||
|
26
|
26
48810-76G00-000 END,STEERING TIE-ROD |
48810-76G00-000 |
from US $46.94 |
||
|
27
|
27
09401-23402-000 CLIP |
09401-23402-000 |
US $1.76 |
||
|
28
|
28
48819-60B00-000
BOOT SET
|
48819-60B00-000 |
— | ||
| replacements | |||||
|
28
|
28
48819-60B01-000
Boot Set
|
48819-60B01-000 |
— | ||
|
28
|
28
48800-60810-000 Boot Set |
48800-60810-000 |
US $19.20 |
||
|
29
|
29
09140-12030-000 NUTNut, tie rod (rh thread) |
09140-12030-000 |
from US $1.31 |
||
|
30
|
30
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
30
|
30
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
31
|
31
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
31
|
31
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
