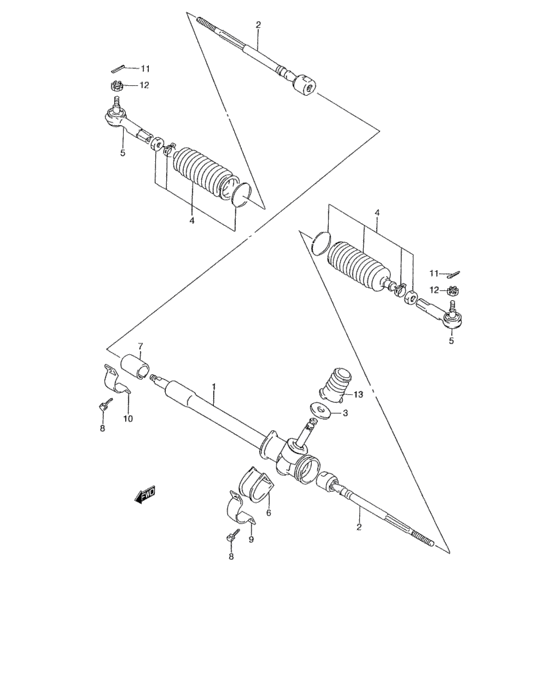

A steering unit (N/PS:98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-50G20-000
Case assy, steering
|
48580-50G20-000 |
— | ||
|
2
|
2
48830-50G20-000
Rod, steering tie
|
48830-50G20-000 |
— | ||
|
3
|
3
48562-50G20-000
Seal, pinion
|
48562-50G20-000 |
— | ||
|
4
|
4
48573-50G20-000
Boot set, steering
|
48573-50G20-000 |
— | ||
|
5
|
5
48810-50G20-000
End, steering tie rod
|
48810-50G20-000 |
— | ||
|
6
|
6
48525-50G20-000
Mount, steering pinion side
|
48525-50G20-000 |
— | ||
|
7
|
7
48526-50G20-000
Mount, steering rack side
|
48526-50G20-000 |
— | ||
|
8
|
8
01570-08253-000
Bolt, upper
98 MODEL,99 MODEL |
01570-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0825B-000 BOLT98 MODEL,99 MODEL |
01570-0825B-000 |
US $1.12 |
||
|
8
|
8
01570-0825A-000 BOLT98 MODEL,99 MODEL |
01570-0825A-000 |
from US $1.06 |
||
|
8
|
8
09112-08002-000 BOLT(8X25)00 MODEL,01 MODEL |
09112-08002-000 |
from US $1.22 |
||
|
9
|
9
48521-60B00-000 BRACKET,STEERING PINION SIDE |
48521-60B00-000 |
US $6.81 |
||
|
10
|
10
48522-82000-000 BRACKET,STEERING RACK SIDE |
48522-82000-000 |
US $17.60 |
||
|
11
|
11
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
11
|
11
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
12
|
12
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
12
|
12
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
13
|
13
48451-74F00-000 PACKING,STEERING GEAR CASE |
48451-74F00-000 |
US $8.54 |
||
