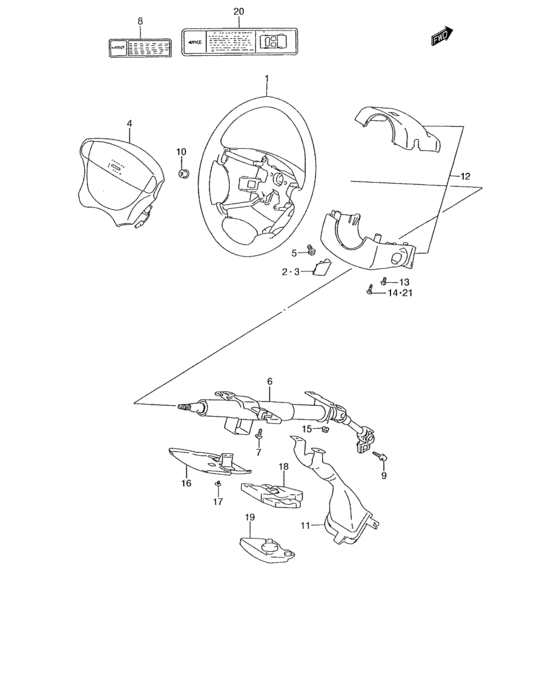

A steering wheel (A STEERING WHEEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-50G02-5ES
WHEEL ASSY,STEERING(BLACK)
95 MODEL,96 MODEL |
48110-50G02-5ES |
— | ||
|
1
|
1
48110-50GA0-6WV
Wheel assy, steering
97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
48110-50GA0-6WV |
— | ||
|
2
|
2
48118-50G00-5ES
CAP,STRG WHL SIDE COVER,R
95 MODEL,96 MODEL |
48118-50G00-5ES |
— | ||
|
2
|
2
48118-50G00-6WV
Cap, side cover rh
97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
48118-50G00-6WV |
— | ||
|
3
|
3
48119-50G00-5ES
CAP,STRG WHL SIDE COVER,L
95 MODEL,96 MODEL |
48119-50G00-5ES |
— | ||
|
3
|
3
48119-50G00-6WV
Cap, side cover lh
97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
48119-50G00-6WV |
— | ||
|
4
|
4
48150-50G50-5ES
Module assy, air bag
:95 MODEL,96 MODEL |
48150-50G50-5ES |
— | ||
| replacement | |||||
|
4
|
4
48150-50G60-5ES
Module assy, air bag
:95 MODEL,96 MODEL |
48150-50G60-5ES |
— | ||
|
4
|
4
48150-51G50-6WV
Module assy, air bag
:97 MODEL |
48150-51G50-6WV |
— | ||
| replacement | |||||
|
4
|
4
48150-51G51-6WV
Module assy, air bag
:97 MODEL |
48150-51G51-6WV |
— | ||
|
4
|
4
48150-51G51-6WV
Module assy, air bag
:98 MODEL |
48150-51G51-6WV |
— | ||
|
4
|
4
48150-63G50-6WV
Module assy, air bag
:99 MODEL,00 MODEL,01 MODEL |
48150-63G50-6WV |
— | ||
|
4
|
4
48150-50G60-5ES
Module assy, air bag
Canada:95 MODEL,96 MODEL |
48150-50G60-5ES |
— | ||
|
4
|
4
48150-51G60-6WV
Module assy, air bag
Canada:97 MODEL |
48150-51G60-6WV |
— | ||
| replacement | |||||
|
4
|
4
48150-51G51-6WV
Module assy, air bag
Canada:97 MODEL |
48150-51G51-6WV |
— | ||
|
4
|
4
48150-51G61-6WV
Module assy, air bag
Canada:98 MODEL |
48150-51G61-6WV |
— | ||
|
4
|
4
48150-63G60-6WV
Module assy, air bag
Canada:99 MODEL,00 MODEL,01 MODEL |
48150-63G60-6WV |
— | ||
|
5
|
5
09119-08085-000 Bolt |
09119-08085-000 |
US $21.30 |
||
|
6
|
6
48200-50G50-000
Column assy, colps steering
|
48200-50G50-000 |
— | ||
|
7
|
7
09139-08015-000 SCREW(8X30) |
09139-08015-000 |
US $1.92 |
||
|
8
|
8
79172-50G50-000
Label, steering column air bag
|
79172-50G50-000 |
— | ||
| replacement | |||||
|
8
|
8
79172-50G51-000
LABEL,STEERING COLUMN AIRBAG
|
79172-50G51-000 |
— | ||
|
8
|
8
79172-50G60-000
Label, steering column air bag
Canada |
79172-50G60-000 |
— | ||
| replacement | |||||
|
8
|
8
79172-50G62-000
LABEL,STEERING COLUMN AIRBAG
Canada |
79172-50G62-000 |
— | ||
|
9
|
9
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
US $20.20 |
||
|
10
|
10
09159-12025-000 NUT95 MODEL,96 MODEL,97 MODEL,98 MODEL,99 MODEL |
09159-12025-000 |
US $1.82 |
||
|
10
|
10
08316-10123-000
Nut
00 MODEL,01 MODEL |
08316-10123-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1012A-000 NUT00 MODEL,01 MODEL |
08316-1012A-000 |
from US $0.96 |
||
|
11
|
11
48481-50G50-000
Cover, steering joint
|
48481-50G50-000 |
— | ||
|
12
|
12
48400-50G50-5PK
Cover assy, column
|
48400-50G50-5PK |
— | ||
|
13
|
13
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
US $0.96 |
||
|
14
|
14
03211-05123-000
Screw
95 MODEL,96 MODEL,97 MODEL,98 MODEL |
03211-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03211-0512A-000 SCREW95 MODEL,96 MODEL,97 MODEL,98 MODEL |
03211-0512A-000 |
US $0.80 |
||
|
14
|
14
03211-05163-000
Screw
99 MODEL,00 MODEL,01 MODEL |
03211-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03211-0516A-000 SCREW99 MODEL,00 MODEL,01 MODEL |
03211-0516A-000 |
US $0.80 |
||
|
15
|
15
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
48430-50G00-000
Plate, knee protector
|
48430-50G00-000 |
— | ||
|
17
|
17
09125-05039-000 SCREW(5X6) |
09125-05039-000 |
US $0.96 |
||
|
18
|
18
48435-50G00-000
Pad, steering lock
95 MODEL,96 MODEL,97 MODEL |
48435-50G00-000 |
— | ||
|
18
|
18
48435-50G10-000
Pad, steering lock
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
48435-50G10-000 |
— | ||
|
19
|
19
48436-50G00-000
Cushion, knee protector
|
48436-50G00-000 |
— | ||
|
20
|
20
79171-50G50-000
Label, airbag
|
79171-50G50-000 |
— | ||
|
20
|
20
79171-50G60-000
Label, airbag
Canada |
79171-50G60-000 |
— | ||
|
21
|
21
03211-05123-000
Screw
99 MODEL,00 MODEL,01 MODEL |
03211-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03211-0512A-000 SCREW99 MODEL,00 MODEL,01 MODEL |
03211-0512A-000 |
US $0.80 |
||
