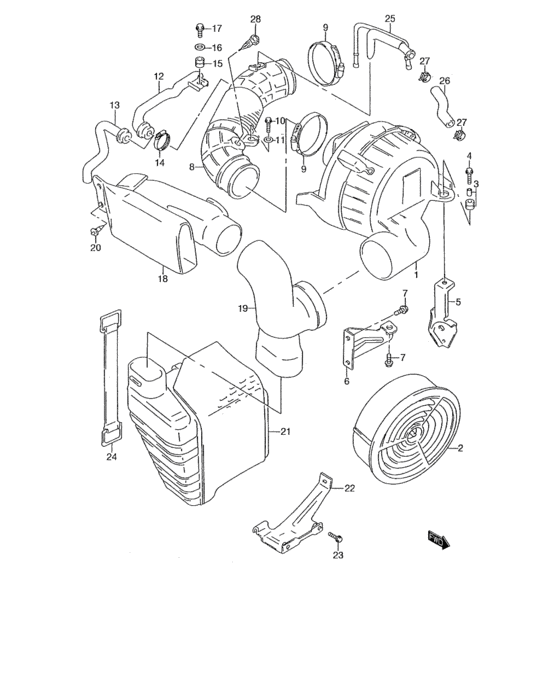

Air cleaner (98, 99, 00, 01 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-52G00-000
Cleaner assy, air
|
13700-52G00-000 |
— | ||
|
2
|
2
13780-82400-000
ELEMENT,AIR CLEANER
|
13780-82400-000 |
— | ||
| replacement | |||||
|
2
|
2
13780-824A0-000
Element,air cleaner
|
13780-824A0-000 |
— | ||
|
3
|
3
13813-64BT0-000 GROMMET SET,AIR CLEANER |
13813-64BT0-000 |
US $7.60 |
||
|
4
|
4
09116-06115-000 BOLT(6X20)Bolt (6x20) |
09116-06115-000 |
from US $1.37 |
||
|
5
|
5
13811-52G00-000
Bracket, no.1
|
13811-52G00-000 |
— | ||
|
6
|
6
13815-52G00-000
Bracket, no.2
|
13815-52G00-000 |
— | ||
|
7
|
7
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
13881-52G00-000
Hose, outlet
98 MODEL,->13881-52G01,USED WITH 13761-52G01 |
13881-52G00-000 |
— | ||
| replacement | |||||
|
8
|
8
13881-52G01-000
Hose, outlet
98 MODEL,->13881-52G01,USED WITH 13761-52G01 |
13881-52G01-000 |
— | ||
|
8
|
8
13881-52G01-000
Hose, outlet
99 MODEL,00 MODEL,01 MODEL |
13881-52G01-000 |
— | ||
|
9
|
9
13893-58B00-000
Clip, outlet hose
|
13893-58B00-000 |
— | ||
| replacement | |||||
|
9
|
9
09402-82511-000 CLAMP |
09402-82511-000 |
US $65.90 |
||
|
10
|
10
02162-06253-000
Bolt
|
02162-06253-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
11
|
11
09169-07008-000 WASHER |
09169-07008-000 |
US $30.50 |
||
|
12
|
12
13761-52G00-000
Resonator
98 MODEL |
13761-52G00-000 |
— | ||
|
13
|
13
13761-52G01-000
RESONATOR
99 MODEL,00 MODEL,01 MODEL |
13761-52G01-000 |
— | ||
|
14
|
14
09402-38511-000 CLAMP |
09402-38511-000 |
from US $4.06 |
||
|
15
|
15
09320-11017-000 CUSHION98 MODEL |
09320-11017-000 |
from US $10.06 |
||
|
16
|
16
09169-09008-000 WASHER98 MODEL |
09169-09008-000 |
US $11 |
||
|
17
|
17
02162-06253-000
Bolt
98 MODEL |
02162-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
02162-0625A-000 SCREW98 MODEL |
02162-0625A-000 |
from US $0.76 |
||
|
18
|
18
13861-50G00-000
Pipe, air suction
98 MODEL |
13861-50G00-000 |
— | ||
|
18
|
18
13861-52G00-000
PIPE,AIR SUCTION
99 MODEL,00 MODEL,01 MODEL |
13861-52G00-000 |
— | ||
|
19
|
19
13862-50G00-000
Hose, air suction
|
13862-50G00-000 |
— | ||
|
20
|
20
09409-07321-5PK CLIP(BLACK) |
09409-07321-5PK |
US $23.60 |
||
|
21
|
21
13760-64BM0-000
Resonator assy
|
13760-64BM0-000 |
— | ||
|
22
|
22
13765-64B02-000 BRACKET,RESONATOR |
13765-64B02-000 |
US $10.78 |
||
|
23
|
23
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
24
|
24
09462-00015-000 BAND |
09462-00015-000 |
from US $4.90 |
||
|
25
|
25
11190-52G00-000
Pipe comp,breather
|
11190-52G00-000 |
— | ||
|
26
|
26
11191-52G00-000
Hose, breather
|
11191-52G00-000 |
— | ||
| replacement | |||||
|
26
|
26
11191-60G00-000 HOSE,BREATHER |
11191-60G00-000 |
US $25.60 |
||
|
27
|
27
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.33 |
||
|
28
|
28
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp |
13650-52G00-000 |
from US $50.92 |
||
