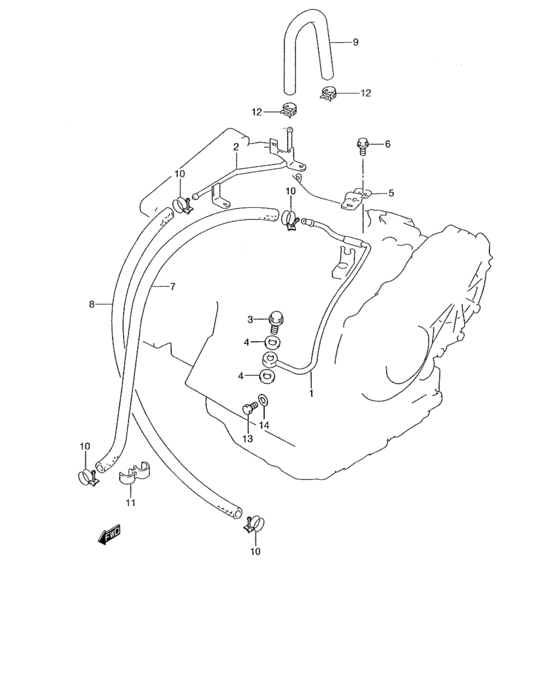

At oil hose (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24893-82334-000 PIPE,OIL OUTLET |
24893-82334-000 |
US $43.06 |
||
|
2
|
2
24894-62B23-000 PIPE,OIL INLET |
24894-62B23-000 |
US $30.54 |
||
|
3
|
3
09360-10032-000
Bolt, union (10x24)
|
09360-10032-000 |
— | ||
| replacement | |||||
|
3
|
3
09360-10055-000 UNIONBolt, oil pipe union |
09360-10055-000 |
from US $4.80 |
||
|
4
|
4
09168-10028-000 GASKET(10X15X1) |
09168-10028-000 |
US $12.90 |
||
|
5
|
5
24896-82301-000
PLATE,OIL PIPE
|
24896-82301-000 |
— | ||
|
6
|
6
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
6
|
6
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
7
|
7
24891-56X51-000 HOSE SET |
24891-56X51-000 |
US $57.60 |
||
|
8
|
8
24891-56X51-000 HOSE SET(L:600->465) |
24891-56X51-000 |
US $57.60 |
||
|
9
|
9
22931-56X50-000
ホース,オイル
(L:300->250) |
22931-56X50-000 |
— | ||
| replacement | |||||
|
9
|
9
22931-56X51-000 HOSE,OIL(L:300->250) |
22931-56X51-000 |
from US $32.92 |
||
|
10
|
10
09400-15311-000 CLAMP |
09400-15311-000 |
US $23.20 |
||
|
11
|
11
09408-00043-000 CLAMPHolder, fuse case |
09408-00043-000 |
US $9.60 |
||
|
12
|
12
09401-13410-000
Clip
|
09401-13410-000 |
— | ||
| replacement | |||||
|
12
|
12
09401-12414-000 CLIP |
09401-12414-000 |
from US $1.60 |
||
|
13
|
13
24821-62B20-000
PLUG,COOLER IN CUT
|
24821-62B20-000 |
— | ||
|
14
|
14
09168-10021-000 GASKET(10.3X14X0.8) |
09168-10021-000 |
US $16.20 |
||
