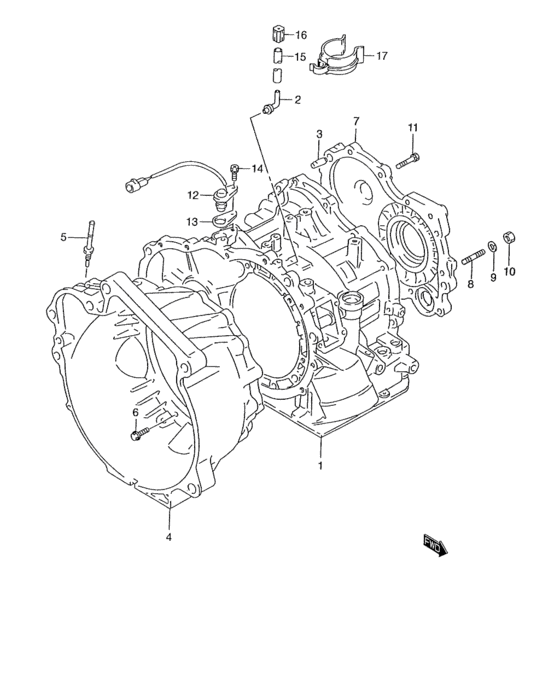

At tm case (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-62B03-000 CASE ASSY,T/M |
24710-62B03-000 |
US $1,338.16 |
||
|
1
|
1
24710-52G00-000
CASE ASSY,T/M
2S2AB21H X6601745~ |
24710-52G00-000 |
— | ||
|
2
|
2
24717-83C00-000 PLUG,BREATHER |
24717-83C00-000 |
US $8.48 |
||
|
2
|
2
24717-52G00-000
PLUG,BREATHER
2S2AB21H X6601745~ |
24717-52G00-000 |
— | ||
|
3
|
3
24791-82300-000
PIN,TRANSMISSION CASE KNOCK
|
24791-82300-000 |
— | ||
|
4
|
4
24721-62B22-000 HOUSING,TORQUE CONVERTER |
24721-62B22-000 |
US $711.04 |
||
|
5
|
5
24722-62B21-000
PIPE,ATF COOLER RETURN
|
24722-62B21-000 |
— | ||
|
6
|
6
09117-08089-000 BOLT(8X35) |
09117-08089-000 |
US $19.50 |
||
|
7
|
7
24730-82320-000 COVER,T/M,RR |
24730-82320-000 |
US $329.36 |
||
|
8
|
8
24889-82300-000
BOLT,T/M RR COVER STUD
|
24889-82300-000 |
— | ||
|
9
|
9
09162-08008-000 WASHER,LOCKLock washer |
09162-08008-000 |
from US $0.80 |
||
|
10
|
10
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
11
|
11
09117-08089-000 BOLT(8X35) |
09117-08089-000 |
US $19.50 |
||
|
12
|
12
26141-62D01-000 SENSOR,SPEED |
26141-62D01-000 |
US $320 |
||
|
13
|
13
26142-62E20-000
SPACER,SPEED SENSOR
|
26142-62E20-000 |
— | ||
|
14
|
14
09137-06015-000
BOLT(6X16)
|
09137-06015-000 |
— | ||
|
15
|
15
09359-50823-600
HOSE(5X8.2X600)
L:600->250,2S2AB21H X6601745~ |
09359-50823-600 |
— | ||
| replacement | |||||
|
15
|
15
09359-50824-600 Hose(5X8.2X600)L:600->250,2S2AB21H X6601745~ |
09359-50824-600 |
from US $6.24 |
||
|
16
|
16
27991-65D01-000 PLUG,BREATHER2S2AB21H X6601745~ |
27991-65D01-000 |
from US $1.92 |
||
|
17
|
17
09408-00161-000 CLAMP2S2AB21H X6601745~ |
09408-00161-000 |
US $2.64 |
||
