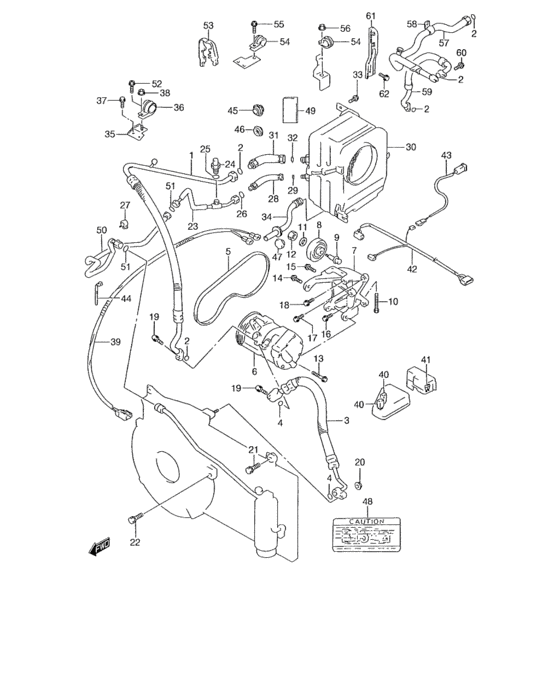

B air conditioner (B AIR CONDITIONER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-50G11-000
Air conditioner set
95 MODEL,96 MODEL,97 MODEL N/POWER STEERING |
95000-50G11-000 |
— | ||
|
|
95000-50G30-000
Air conditioner set
98 MODEL,99 MODEL,00 MODEL,01 MODEL,N/POWER STEERING |
95000-50G30-000 |
— | ||
|
|
95000-52G30-000
Air conditioner set
W/POWER STEERING |
95000-52G30-000 |
— | ||
|
1
|
1
95710-50G10-000
Hose, compressor suction
95 MODEL,96 MODEL,97 MODEL N/POWER STEERING |
95710-50G10-000 |
— | ||
|
1
|
1
95710-52G10-000
Hose, compressor suction
95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
95710-52G10-000 |
— | ||
|
2
|
2
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
3
|
3
95720-50G00-000
Hose, compressor delivery
|
95720-50G00-000 |
— | ||
|
4
|
4
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
5
|
5
95141-51G00-000
Belt, compressor
N/POWER STEERING |
95141-51G00-000 |
— | ||
| replacement | |||||
|
5
|
5
95141-51G00-CDN
Belt,air cond 4pk820
N/POWER STEERING |
95141-51G00-CDN |
— | ||
|
5
|
5
17521-52E00-000 V-BELT, 4PK950W/POWER STEERING |
17521-52E00-000 |
from US $33.03 |
||
|
6
|
6
95200-50G01-000
Compressor & magnet clutch
|
95200-50G01-000 |
— | ||
|
7
|
7
95111-50G01-000
Bracket, compressor
N/POWER STEERING |
95111-50G01-000 |
— | ||
| replacement | |||||
|
7
|
7
95111-50G00-000
Bracket, compre
N/POWER STEERING |
95111-50G00-000 |
— | ||
|
8
|
8
49160-50G10-000 PULLEY,BELT TENSION |
49160-50G10-000 |
US $135.79 |
||
|
9
|
9
49161-60B10-000 BOLT,BELT TENSION PULLEY |
49161-60B10-000 |
from US $7.84 |
||
|
10
|
10
95912-60E10-000
BOLT,ADJUST
|
95912-60E10-000 |
— | ||
|
11
|
11
08321-01103-000
Washer
USE WITH 12-1 |
08321-01103-000 |
— | ||
| replacements | |||||
|
11
|
11
08321-0110B-000 WASHER,LOCKWasher, knuckle end USE WITH 12-1 |
08321-0110B-000 |
from US $0.80 |
||
|
11
|
11
08321-0110A-000 WASHER,LOCKUSE WITH 12-1 |
08321-0110A-000 |
from US $0.80 |
||
|
12
|
12
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
12
|
12
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
12
|
12
08316-10103-000
Nut
W/FLANGE |
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUTW/FLANGE |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
13
|
13
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
14
|
14
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
14
|
14
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
15
|
15
09103-08254-000 BOLT(8X20)Bolt, rear 95 MODEL |
09103-08254-000 |
from US $4.13 |
||
|
16
|
16
09103-10229-000 BOLT(10X32)Bolt, crankshaft (10x32) N/POWER STEERING |
09103-10229-000 |
from US $2.40 |
||
|
17
|
17
09103-10235-000 BOLT(10X50)Bolt (10x50) N/POWER STEERING |
09103-10235-000 |
from US $2.24 |
||
|
18
|
18
09103-10236-000 BOLT(10X69)N/POWER STEERING |
09103-10236-000 |
US $43.40 |
||
|
19
|
19
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
21
|
21
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
22
|
22
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
22
|
22
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
23
|
23
95734-50G60-000
Pipe, cooling unit inlet
|
95734-50G60-000 |
— | ||
|
24
|
24
95526-50G10-000
Switch, dual pressure
|
95526-50G10-000 |
— | ||
| replacement | |||||
|
24
|
24
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
US $44.84 |
||
|
25
|
25
95894-50G00-000 O-RING,D:1.78 ID:10.6 |
95894-50G00-000 |
from US $2.84 |
||
|
26
|
26
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
27
|
27
09403-13409-000 CLAMP |
09403-13409-000 |
US $14 |
||
|
28
|
28
95734-50G00-000 JOINT,PIPE LIQUID |
95734-50G00-000 |
US $26.68 |
||
|
29
|
29
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
30
|
30
95400-50G60-000
Evaporator unit
|
95400-50G60-000 |
— | ||
|
31
|
31
95741-50G00-000
JOINT,PIPE SUCTION
|
95741-50G00-000 |
— | ||
|
32
|
32
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
33
|
33
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
33
|
33
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
34
|
34
95481-60B51-000 HOSE,DRAIN |
95481-60B51-000 |
US $12.36 |
||
|
35
|
35
95781-50G11-000
Bracket, suction hose clamp
95 MODEL,96 MODEL,97 MODEL |
95781-50G11-000 |
— | ||
|
36
|
36
95772-70C51-000 CLAMP,SUCT HOSE95 MODEL,96 MODEL,97 MODEL |
95772-70C51-000 |
US $9.83 |
||
|
37
|
37
02162-06123-000
Bolt (6x12)
95 MODEL,96 MODEL,97 MODEL |
02162-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
02162-0612B-000 SCREWBolt 95 MODEL,96 MODEL,97 MODEL |
02162-0612B-000 |
from US $0.80 |
||
|
37
|
37
02162-0612A-000 SCREWBolt, bracket 95 MODEL,96 MODEL,97 MODEL |
02162-0612A-000 |
from US $0.80 |
||
|
38
|
38
08316-10063-000
Nut
95 MODEL,96 MODEL,97 MODEL |
08316-10063-000 |
— | ||
| replacement | |||||
|
38
|
38
08316-1006B-000 NUT95 MODEL,96 MODEL,97 MODEL |
08316-1006B-000 |
from US $0.76 |
||
|
39
|
39
95531-50G10-000
Harness, engine room
|
95531-50G10-000 |
— | ||
|
40
|
40
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
40
|
40
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
41
|
41
09481-15102-000
Fuse
|
09481-15102-000 |
— | ||
| replacement | |||||
|
41
|
41
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
42
|
42
95532-50G10-000
Harness,inner
|
95532-50G10-000 |
— | ||
|
43
|
43
95521-60E10-000
SWITCH,A/C
|
95521-60E10-000 |
— | ||
|
44
|
44
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
45
|
45
74813-82000-000 GROMMET,CAR AIR CON,NO.1W/AIR CON |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
45
|
45
74814-82000-000 GROMMET,CAR AIR CON,NO.2W/AIR CON |
74814-82000-000 |
US $6.08 |
||
|
45
|
45
09250-35003-000 CAP(OD:45)Cap, frame bridge N/AIR CON |
09250-35003-000 |
from US $5.41 |
||
|
46
|
46
74814-82000-000 GROMMET,CAR AIR CON,NO.2W/AIR CON |
74814-82000-000 |
US $6.08 |
||
|
46
|
46
09250-25007-000 CAP(OD:25.0)N/AIR CON |
09250-25007-000 |
from US $0.97 |
||
|
47
|
47
09250-25007-000 CAP(OD:25.0)N/AIR CON |
09250-25007-000 |
from US $0.97 |
||
|
48
|
48
95951-50G10-000
Caution plate, car air con
|
95951-50G10-000 |
— | ||
|
49
|
49
95762-82000-000
PACKING,PIPE
|
95762-82000-000 |
— | ||
|
50
|
50
95733-50G60-000
Pipe, liquid
|
95733-50G60-000 |
— | ||
| replacement | |||||
|
50
|
50
95733-50G80-000
Tube, liquid
|
95733-50G80-000 |
— | ||
|
51
|
51
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
52
|
52
02162-06123-000
Bolt (6x12)
97 MODEL |
02162-06123-000 |
— | ||
| replacements | |||||
|
52
|
52
02162-0612B-000 SCREWBolt 97 MODEL |
02162-0612B-000 |
from US $0.80 |
||
|
52
|
52
02162-0612A-000 SCREWBolt, bracket 97 MODEL |
02162-0612A-000 |
from US $0.80 |
||
|
53
|
53
95423-60B50-000 CLAMP,PIPE |
95423-60B50-000 |
US $6.66 |
||
|
54
|
54
95771-50E00-000 CLAMP,SUCTION PIPE95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
95771-50E00-000 |
US $6.96 |
||
|
55
|
55
02162-06123-000
Bolt (6x12)
95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
02162-06123-000 |
— | ||
| replacements | |||||
|
55
|
55
02162-0612B-000 SCREWBolt 95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
02162-0612B-000 |
from US $0.80 |
||
|
55
|
55
02162-0612A-000 SCREWBolt, bracket 95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
02162-0612A-000 |
from US $0.80 |
||
|
56
|
56
08316-10063-000
Nut
95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
08316-10063-000 |
— | ||
| replacement | |||||
|
56
|
56
08316-1006B-000 NUT95 MODEL,96 MODEL,97 MODEL W/PWR STEERING |
08316-1006B-000 |
from US $0.76 |
||
|
57
|
57
95742-50G10-000
Pipe, cooling unit outlet
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
95742-50G10-000 |
— | ||
|
58
|
58
95771-50G10-000 CLAMP,SUCT PIPE98 MODEL,99 MODEL,00 MODEL,01 MODEL |
95771-50G10-000 |
US $5.96 |
||
|
59
|
59
95710-52G30-000
Hose, compressor suction
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
95710-52G30-000 |
— | ||
|
60
|
60
01550-06303-000
Bolt (6x30)
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
01550-06303-000 |
— | ||
| replacement | |||||
|
60
|
60
01550-0630A-000 BOLT98 MODEL,99 MODEL,00 MODEL,01 MODEL |
01550-0630A-000 |
from US $0.96 |
||
|
61
|
61
49243-50GA0-000
Stay, suction pipe
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
49243-50GA0-000 |
— | ||
|
62
|
62
02162-06123-000
Bolt (6x12)
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
02162-06123-000 |
— | ||
| replacements | |||||
|
62
|
62
02162-0612B-000 SCREWBolt 98 MODEL,99 MODEL,00 MODEL,01 MODEL |
02162-0612B-000 |
from US $0.80 |
||
|
62
|
62
02162-0612A-000 SCREWBolt, bracket 98 MODEL,99 MODEL,00 MODEL,01 MODEL |
02162-0612A-000 |
from US $0.80 |
||
