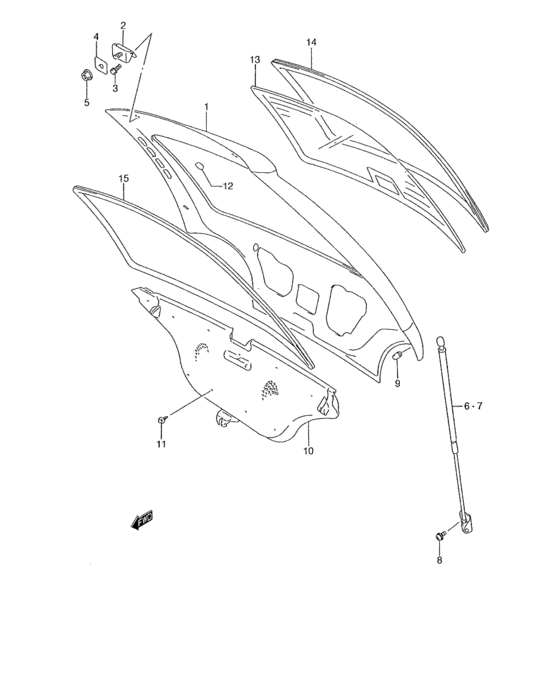

B back dr panel (B BACK DR PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-50G00-000
Panel assy, back door
, N/RR WIPER |
69100-50G00-000 |
— | ||
|
1
|
1
69100-50G10-000
Panel assy, back door
Canada, W/RR WIPER |
69100-50G10-000 |
— | ||
|
2
|
2
69510-50G00-000
Hinge, back door
|
69510-50G00-000 |
— | ||
|
3
|
3
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
3
|
3
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
4
|
4
69571-60B00-000 PACKING,BACK DOOR HINGE FEM |
69571-60B00-000 |
US $3.64 |
||
|
5
|
5
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81800-50810-000
Balancer, back door rh
|
81800-50810-000 |
— | ||
|
7
|
7
81800-50820-000
Balancer, back door lh
|
81800-50820-000 |
— | ||
|
8
|
8
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
9
|
9
76683-70C00-000 CUSHION,TRUNK LID/BACK DR |
76683-70C00-000 |
US $1.92 |
||
|
10
|
10
83770-51G00-6WV
Trim, back door
|
83770-51G00-6WV |
— | ||
|
11
|
11
09409-07308-6WV
Clip, back door trim
|
09409-07308-6WV |
— | ||
|
12
|
12
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
13
|
13
84571-50G11-000
Glass, back door window
(GREEN),<-84571-50G10 |
84571-50G11-000 |
— | ||
|
14
|
14
84623-50G00-000
Molding, back door window
|
84623-50G00-000 |
— | ||
|
15
|
15
84627-50G00-000
TRIM,BACK DOOR WINDOW
CUT AS REQUIRED |
84627-50G00-000 |
— | ||
