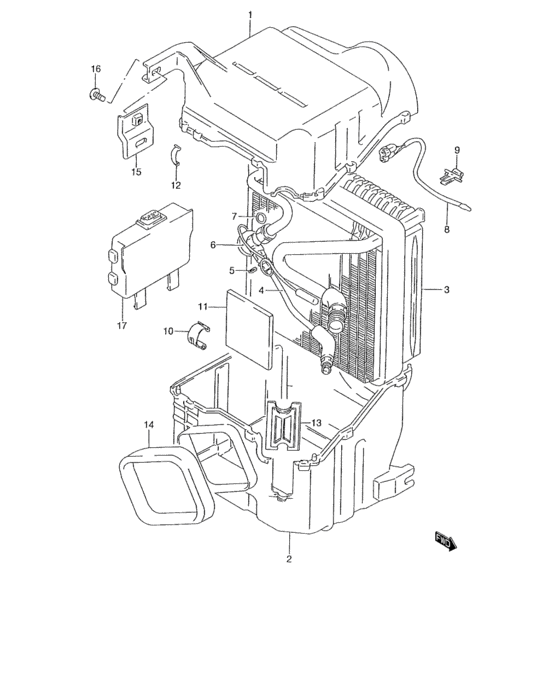

B evaporator unit (B EVAPORATOR UNIT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95400-50G60-000
Evaporator unit
|
95400-50G60-000 |
— | ||
|
1
|
1
95421-60EH0-000
Case, evaporator upper
|
95421-60EH0-000 |
— | ||
|
2
|
2
95422-60B11-000
Case, evaporator lower
95 MODEL,96 MODEL |
95422-60B11-000 |
— | ||
|
2
|
2
95422-60EH0-000
Case, evaporator lower
97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
95422-60EH0-000 |
— | ||
|
3
|
3
95410-50G10-000
CORE,EVAPORATOR
|
95410-50G10-000 |
— | ||
|
4
|
4
95735-50G10-000
PIPE,EXPANSION VALVE INLET
|
95735-50G10-000 |
— | ||
|
5
|
5
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
6
|
6
95431-50G00-000
VALVE,EXPANSION
|
95431-50G00-000 |
— | ||
|
7
|
7
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
8
|
8
95461-63B70-000 THERMISTOR |
95461-63B70-000 |
US $22.26 |
||
|
9
|
9
95452-70B21-000
CLAMP,THERMISTER
|
95452-70B21-000 |
— | ||
|
10
|
10
95492-78360-000 HOLDER |
95492-78360-000 |
US $3.94 |
||
| replacement | |||||
|
10
|
10
95491-60B10-000
CLAMP,TEMPERATURE TUBE
|
95491-60B10-000 |
— | ||
|
11
|
11
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
12
|
12
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
13
|
13
95423-60B10-000
Plate,pipe
|
95423-60B10-000 |
— | ||
|
14
|
14
95481-60A50-000
PACKING
|
95481-60A50-000 |
— | ||
|
15
|
15
95491-50G10-000
Bracket
|
95491-50G10-000 |
— | ||
|
16
|
16
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
17
|
17
95510-50G00-000
CONTROLLER
|
95510-50G00-000 |
— | ||
