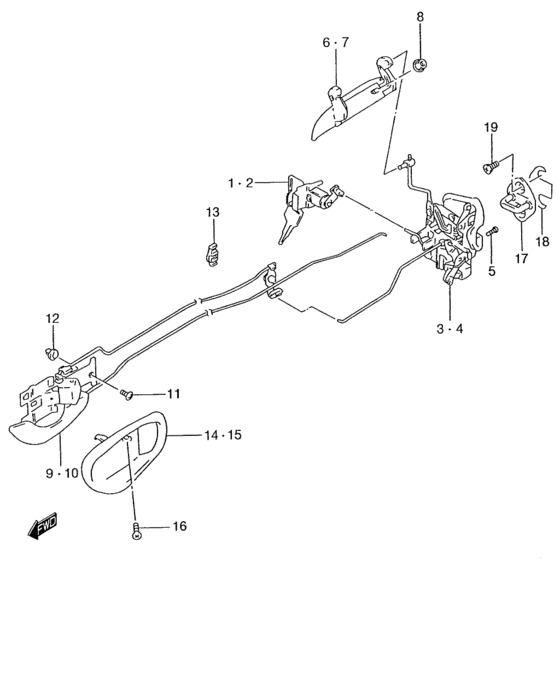

B fr dr lock (B FR DR LOCK) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-51810-000
CYLINDER SET,FR DR LATCH,R
95 MODEL,96 MODEL,97 MODEL |
82201-51810-000 |
— | ||
|
1
|
1
82201-51850-000
Cylinder, front door lock rh
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
82201-51850-000 |
— | ||
|
2
|
2
82201-51820-000
CYLINDER SET,FR DR LATCH,L
95 MODEL,96 MODEL,97 MODEL |
82201-51820-000 |
— | ||
|
2
|
2
82201-51860-000
Cylinder, front door lock lh
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
82201-51860-000 |
— | ||
|
3
|
3
82201-50G00-000
Latch assy, fr door rh
95 MODEL,96 MODEL,->82201-50G01,USED WITH 82818-50G10 |
82201-50G00-000 |
— | ||
| replacement | |||||
|
3
|
3
82201-50G01-000
Latch assy, fr door rh
95 MODEL,96 MODEL,->82201-50G01,USED WITH 82818-50G10 |
82201-50G01-000 |
— | ||
|
3
|
3
82201-50G01-000
Latch assy, fr door rh
96 MODEL,97 MODEL,2S2AB21H T6601738~ |
82201-50G01-000 |
— | ||
|
3
|
3
82201-50G02-000
Latch assy, fr door rh
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
82201-50G02-000 |
— | ||
|
4
|
4
82202-50G00-000
Latch assy, fr door lh
95 MODEL,96 MODEL,->82202-50G01,USED WITH 82818-50G10 |
82202-50G00-000 |
— | ||
| replacement | |||||
|
4
|
4
82202-50G01-000
Latch assy, fr door lh
95 MODEL,96 MODEL,->82202-50G01,USED WITH 82818-50G10 |
82202-50G01-000 |
— | ||
|
4
|
4
82202-50G01-000
Latch assy, fr door lh
96 MODEL,97 MODEL,2S2AB21H T6601738~ |
82202-50G01-000 |
— | ||
|
4
|
4
82202-50G02-000
Latch assy, fr door lh
98 MODEL,99 MODEL,00 MODEL,01 MODEL |
82202-50G02-000 |
— | ||
|
5
|
5
09137-06025-000 SCREW(6X16) |
09137-06025-000 |
US $14.40 |
||
|
6
|
6
82810-50G00-5PK
Handle, fr door outside rh
(BLACK),95 MODEL,96 MODEL |
82810-50G00-5PK |
— | ||
| replacement | |||||
|
6
|
6
82810-50G02-5PK
Handle, fr door outside rh
(BLACK),95 MODEL,96 MODEL |
82810-50G02-5PK |
— | ||
|
6
|
6
82810-50G01-5PK
Handle, fr door outside rh
(BLACK),96 MODEL,97 MODEL,2S2AB21H T6601738~ |
82810-50G01-5PK |
— | ||
| replacement | |||||
|
6
|
6
82810-50G02-5PK
Handle, fr door outside rh
(BLACK),96 MODEL,97 MODEL,2S2AB21H T6601738~ |
82810-50G02-5PK |
— | ||
|
6
|
6
82810-50G02-5PK
Handle, fr door outside rh
(BLACK),98 MODEL,99 MODEL,00 MODEL,01 MODEL |
82810-50G02-5PK |
— | ||
|
7
|
7
82820-50G00-5PK
Handle, fr door outside lh
(BLACK),95 MODEL,96 MODEL |
82820-50G00-5PK |
— | ||
| replacement | |||||
|
7
|
7
82820-50G01-5PK
Handle, fr door outside lh
(BLACK),95 MODEL,96 MODEL |
82820-50G01-5PK |
— | ||
|
7
|
7
82820-50G01-5PK
Handle, fr door outside lh
(BLACK),96 MODEL,97 MODEL,2S2AB21H T6601738~ |
82820-50G01-5PK |
— | ||
|
7
|
7
82820-50G02-5PK
Handle, fr door outside lh
(BLACK),98 MODEL,99 MODEL,00 MODEL,01 MODEL |
82820-50G02-5PK |
— | ||
|
8
|
8
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
9
|
9
83110-50G01-6WV
Handle, door inside rh
|
83110-50G01-6WV |
— | ||
|
10
|
10
83130-50G01-6WV
Handle, door inside lh
|
83130-50G01-6WV |
— | ||
|
11
|
11
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
12
|
12
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
13
|
13
83271-50E00-000 CLIP,DR HANDLE ROD |
83271-50E00-000 |
US $1.60 |
||
|
14
|
14
83121-50G00-6WV
Bezel, inside handle rh
|
83121-50G00-6WV |
— | ||
|
15
|
15
83126-50G00-6WV
Bezel, inside handle lh
|
83126-50G00-6WV |
— | ||
|
16
|
16
83171-50G00-000
Screw, bezel
|
83171-50G00-000 |
— | ||
| replacement | |||||
|
16
|
16
03521-0410A-000 SCREW |
03521-0410A-000 |
US $10.30 |
||
|
17
|
17
82610-50G00-000
Striker, fr door latch
|
82610-50G00-000 |
— | ||
|
18
|
18
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
19
|
19
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
