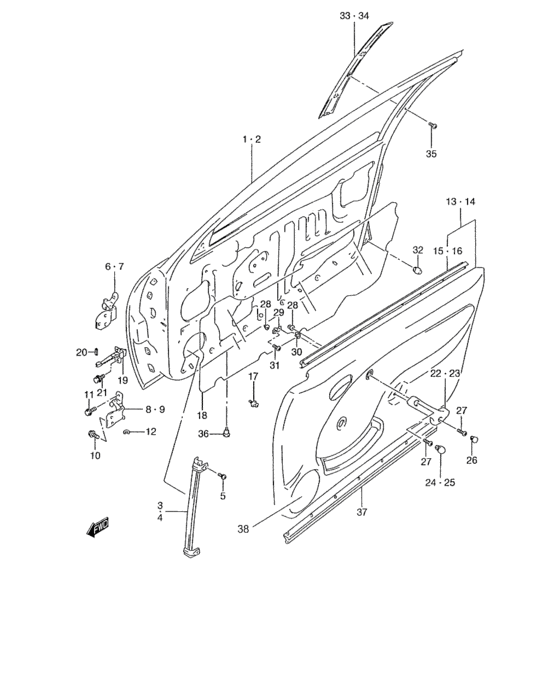

B fr dr panel (B FR DR PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-50G00-000
Panel assy, fr door rh
|
68001-50G00-000 |
— | ||
|
2
|
2
68002-50G00-000
Panel assy, fr door lh
|
68002-50G00-000 |
— | ||
|
3
|
3
81710-50G00-000
Sash, fr lower rh
|
81710-50G00-000 |
— | ||
|
4
|
4
81720-50G00-000
Sash, fr lower lh
|
81720-50G00-000 |
— | ||
|
5
|
5
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
6
|
6
69310-50G02-000
Hinge, door lower lh
|
69310-50G02-000 |
— | ||
|
7
|
7
69320-50G02-000
Hinge, door lower rh
|
69320-50G02-000 |
— | ||
|
8
|
8
69340-50G02-000
Hinge, door lower rh
95 MODEL |
69340-50G02-000 |
— | ||
|
8
|
8
69320-50G02-000
Hinge, door lower rh
96 MODEL,97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
69320-50G02-000 |
— | ||
|
9
|
9
69330-50G02-000
Hinge, door lower lh
95 MODEL |
69330-50G02-000 |
— | ||
|
9
|
9
69310-50G02-000
Hinge, door lower lh
96 MODEL,97 MODEL,98 MODEL,99 MODEL,00 MODEL,01 MODEL |
69310-50G02-000 |
— | ||
|
10
|
10
09118-08156-000 BOLT(8X25)95 MODEL |
09118-08156-000 |
US $19.50 |
||
|
11
|
11
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
12
|
12
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
12
|
12
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
13
|
13
83710-50G01-6YG
Trim, fr door rh
|
83710-50G01-6YG |
— | ||
|
14
|
14
83720-50G01-6YG
Trim, fr door lh
|
83720-50G01-6YG |
— | ||
|
15
|
15
83717-50G01-000
WEATHERSTRIP,FR DR INR,R
<-83717-50G00 |
83717-50G01-000 |
— | ||
|
16
|
16
83757-50G01-000
WEATHERSTRIP,FR DR INR,L
<-83757-50G00 |
83757-50G01-000 |
— | ||
|
17
|
17
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
18
|
18
83911-60X51-000
Cover, door sealing (600x1200)
CUT AS REQUIRED |
83911-60X51-000 |
— | ||
| replacement | |||||
|
18
|
18
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED |
83911-60X52-000 |
US $6.06 |
||
|
19
|
19
81810-50G01-000
Stop, fr door open
<-81810-50G00 |
81810-50G01-000 |
— | ||
|
20
|
20
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
21
|
21
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
22
|
22
84450-50G00-6WV
Grip, fr door rh
|
84450-50G00-6WV |
— | ||
|
23
|
23
84460-50G00-6WV
Grip, fr door lh
|
84460-50G00-6WV |
— | ||
|
24
|
24
84455-50G00-6WV
Cap, grip upper rh
|
84455-50G00-6WV |
— | ||
|
25
|
25
84456-50G00-6WV
Cap, grip upper lh
|
84456-50G00-6WV |
— | ||
|
26
|
26
84457-50G00-6WV
Cap, grip lower
|
84457-50G00-6WV |
— | ||
|
27
|
27
03542-06253-000
Screw
|
03542-06253-000 |
— | ||
| replacement | |||||
|
27
|
27
03542-0625B-000 SCREW |
03542-0625B-000 |
US $0.80 |
||
|
28
|
28
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
29
|
29
84471-50G00-000
Bracket, door grip
|
84471-50G00-000 |
— | ||
|
30
|
30
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
31
|
31
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
31
|
31
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
32
|
32
82681-50G00-000
CUSHION FR DR LOWER
|
82681-50G00-000 |
— | ||
|
33
|
33
83671-50G00-000
Garnish, ctr pillar rh
|
83671-50G00-000 |
— | ||
|
34
|
34
83672-50G00-000
Garnish, ctr pillar lh
|
83672-50G00-000 |
— | ||
|
35
|
35
09136-04009-000 SCREW(4X10) |
09136-04009-000 |
US $19.10 |
||
|
36
|
36
83921-50G00-000
HOOK,FR DOOR
|
83921-50G00-000 |
— | ||
|
37
|
37
84645-50G00-000
WEATHERSTRIP,FR DR DUST
|
84645-50G00-000 |
— | ||
|
38
|
38
83714-50G00-000
Cover, speaker
|
83714-50G00-000 |
— | ||
