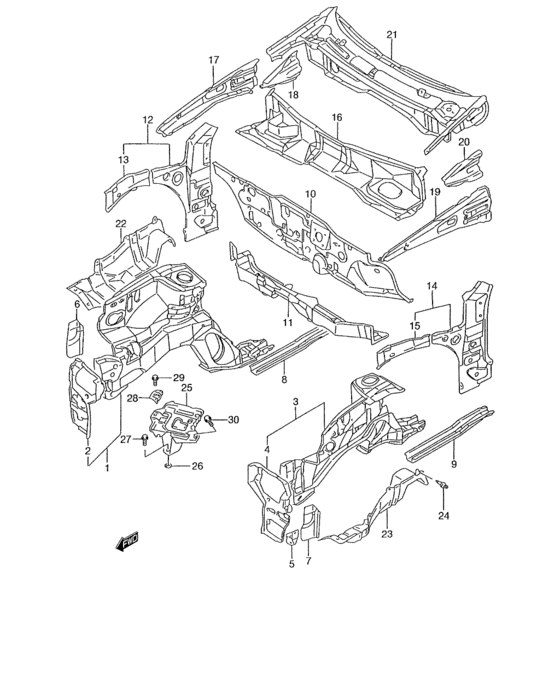

B front body panel (B FRONT BODY PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-50811-000
Panel set, fr fender apron rh
|
58300-50811-000 |
— | ||
|
2
|
2
58111-50G01-000
Panel, lamp support rh
|
58111-50G01-000 |
— | ||
|
3
|
3
58400-50831-000
Panel set, fr fender apron lh
|
58400-50831-000 |
— | ||
|
4
|
4
58161-50G01-000
Panel, lamp support lh
|
58161-50G01-000 |
— | ||
|
5
|
5
58162-50G00-000
Reinf, lamp support lh
|
58162-50G00-000 |
— | ||
|
6
|
6
58314-60B01-000 EXTENSION,APRON FR,R |
58314-60B01-000 |
US $17.59 |
||
|
7
|
7
58410-50G00-000
EXTENSION,APRON FR,L
|
58410-50G00-000 |
— | ||
|
8
|
8
58641-60B11-000 MEMBER,FL SIDE |
58641-60B11-000 |
US $50.42 |
||
|
9
|
9
58740-50G00-000
Member, floor side lh
|
58740-50G00-000 |
— | ||
|
10
|
10
59100-50G31-000
Panel, dash
95 MODEL,96 MODEL,97 MODEL,98 MODEL:AT |
59100-50G31-000 |
— | ||
|
10
|
10
59100-50G50-000
Panel, dash
99 MODEL,00 MODEL,01 MODEL:AT |
59100-50G50-000 |
— | ||
|
11
|
11
59210-60BM0-000
Crossmember, dash lower
AT |
59210-60BM0-000 |
— | ||
|
12
|
12
59230-50G02-000
Panel, dash side rh
|
59230-50G02-000 |
— | ||
|
13
|
13
59232-50G01-000
Brace, front fender apron rh
|
59232-50G01-000 |
— | ||
|
14
|
14
59280-50G01-000
Panel, dash side lh
|
59280-50G01-000 |
— | ||
|
15
|
15
59282-50G00-000
Brace, front fender apron lh
|
59282-50G00-000 |
— | ||
|
16
|
16
59300-50G00-000
Panel, cowl upper
|
59300-50G00-000 |
— | ||
|
17
|
17
59411-50G00-000
Member, cowl side outer rh
|
59411-50G00-000 |
— | ||
|
18
|
18
59412-50G00-000
Reinf, cowl side outer rh
|
59412-50G00-000 |
— | ||
|
19
|
19
59461-50G00-000
Member, cowl side outer lh
|
59461-50G00-000 |
— | ||
|
20
|
20
59462-50G00-000
Reinf, cowl side outer lh
|
59462-50G00-000 |
— | ||
|
21
|
21
59700-50G00-000
Panel, cowl top
|
59700-50G00-000 |
— | ||
|
22
|
22
72381-60B10-000
Cover, splash rh
|
72381-60B10-000 |
— | ||
|
23
|
23
72382-63B10-000
Cover, splash lh
AT |
72382-63B10-000 |
— | ||
|
24
|
24
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
25
|
25
72520-50G01-000
Bracket, battery
|
72520-50G01-000 |
— | ||
|
26
|
26
72523-50G00-000
Washer, battery bracket
95 MODEL,96 MODEL |
72523-50G00-000 |
— | ||
|
27
|
27
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
27
|
27
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
27
|
27
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
28
|
28
72524-50G00-000
Band, battery
|
72524-50G00-000 |
— | ||
|
29
|
29
09103-08333-000
Bolt, battery band
|
09103-08333-000 |
— | ||
|
30
|
30
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
30
|
30
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
30
|
30
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
